FULL ELECTRIC PALLET TRUCK PTE 20N 2000KG

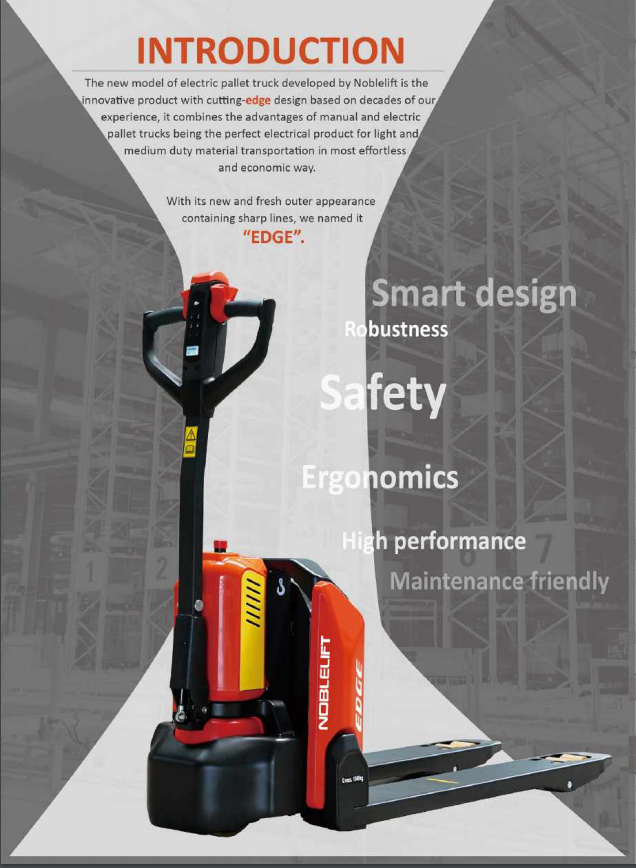

The new model of electric pallet truck developed by Noblelift is the innovative product with cutting-edge design based on decades of

experience, it combines the advantages of manual and electric pallet trucks being the perfect electrical product for light and medium duty

material transportation in most effortless and economic way.With its new and fresh outer appearance containing sharp lines, we named it

“EDGE”.

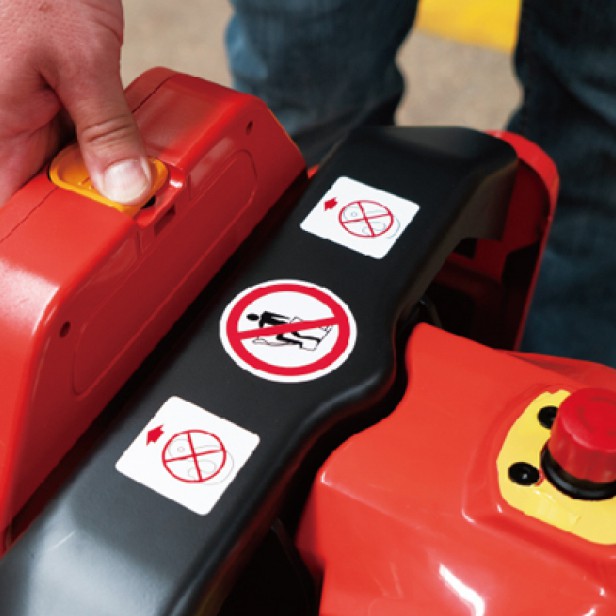

Ergonomic & Smart Tiller Design

• The tiller of the truck with ergonomic design has comfortable soft grips for comfort daily operation. All buttons are big and can be easily reached by operators even in case of working in gloves.
• Integrated PIN code panel with LCD display for smart control and operation.
• The function of driving with tiller in the vertical position helps with work in confined areas, especially in elevators and lorries without sacrificing of safety.

Smart Lithium Battery

• Standard with Maintenance-free 48V/20Ah Lithium battery and 48V/9A intelligent charger for long operation time, fast charging and opportunity charging.
• The integrated BMS (Battery Management System) controls all important parameters and performance of lithium battery.
• Socket on battery case for easy battery charging without necessity to take the battery out.
• Fast and opportunity charging during brakes in operations increases working time.

Maintenance Friendly

• Convenient and fast access to any component of the truck, no elements are located in areas difficult to reach. No Special tools are required.
• There are no hoses or pipes used in the hydraulic lifting circuit which significantly improves reliability and reduces the amount of potential problems related to leakages through connectors or their seals.
• The truck is equipped with Curtis controller and CAN-bus technology makes the diagnostic and troubleshooting easier.
• Amount of working hours shown at the tiller helps to follow the maintenance schedule.

Robust & Smart Design of Chassis

• Strong and compact structure of chassis helps to ensure long life-time of the truck, without sacrificing the truck’s weight or putting under question the strength of frame.
• The frame of truck is surrounded by stamped steel elements making the truck looking different and also ensuring the protection of components.
• Forks of the truck with shape for easy entrance and exit from pallets.
• Full length double sided C-shape reinforcements of forks significantly increase strength and rigidity of frame.
• Strong steel apron protects the operator’s feet during work and secures the truck’s components from collisions with objects.
• Standard with suspension stability casters for great stability for applications of all kinds.

Specifications:

• Weight Capacity: 4,500 lbs
• Single Fork Dimensions (Width x Length x Height): 6.3”W x 45.3”L x 1.85”H
• Overall Fork Dimensions (Width x Length): 21” or 27”W x 45.3”L
• Length to Face of Forks: 15.2”
• Maximum Lift Height: 4.56”
• Lowered Height: 3.15”
• Load Centre Distance: 23.6”
• Wheelbase: 46.8”
• Ground Clearance, Centre of Wheelbase: 1.3”
• Turning Radius: 52.6”
• Overall Dimensions (Width x Length x Height): 21 or 27”W x 60.5”L x 45.7”H
• Tire Type: Polyurethane
• Front Tire Size (Diameter x Width): 8.27”D x 2.76”W
• Rear Tire Size (Diameter x Width): 3.15”D x 2.76”W
• Travel Speed, Laden/Unladen: 3.0/3.2 mph
• Lift Speed, Laden/Unladen: 3.35/4.33 fpm
• Lowering Speed, Laden/Unladen: 9.8/5.9 fpm
• Maximum Gradeability, Laden/Unladen: 7/16 %
• Type of Drive: DC Speed Control
• Battery Type: Lithium-Ion
• Battery Nominal Capacity: 48V/20Ah
• Drive Motor Rating: 1.02 HP
• Lift Motor Rating: 1.08 HP
• Weight: 337 lbs
