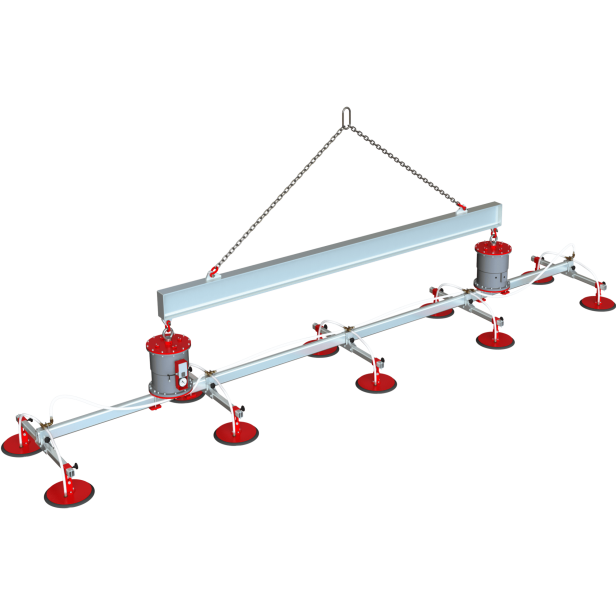

LEKROLIFT KL 2400-10 (H) | Mechanical Vacuum Lifter up to 2,400 kg for non-porous materials

KL 2400-10 (H)

The mechanical vacuum lifter KL 2400-10 (H) enables efficient handling of non-porous materials with a weight of up to 2,400 kg. It is equipped with 10 suction cups with a diameter of 400 mm, which are automatically clamped and released by a special cycling mechanism, while the operator only controls the crane on which the lifter is suspended. The suction cups are easily adjustable, allowing quick adaptation to the actual dimensions of the handled material. The vacuum is generated solely by the weight of the load, without the need for electricity or an external vacuum source. The robust construction ensures reliable and long-term use, while the suction cups provide safe and gentle gripping, protecting even sensitive surfaces. The (H) version features suction cups arranged in two rows, significantly reducing load deflection and allowing safe handling of wide sheets starting from minimal thickness, with easily adjustable spacing on the crossbars. With the mechanical vacuum lifter KL 2400-10 (H), lifting and handling sheet metal, plastic, glass, wood with a non-porous surface or polished stone becomes easier, more efficient and safer.

Standard Items:
