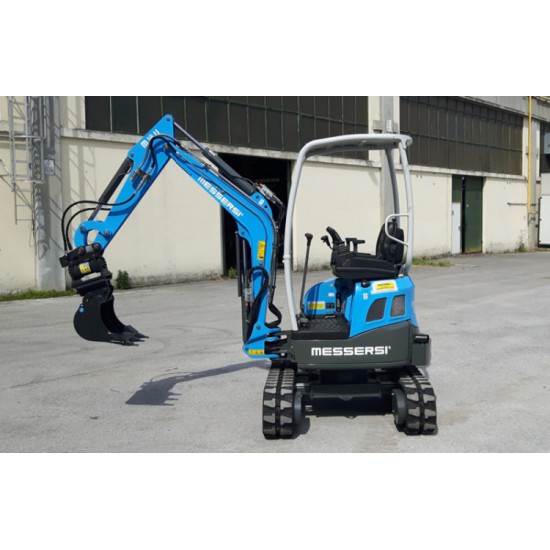

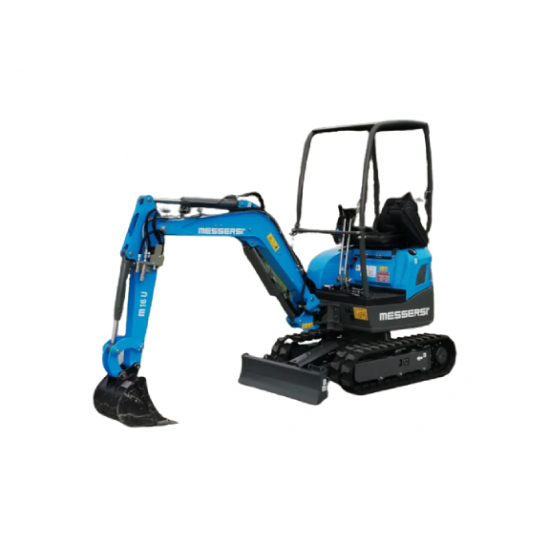

Messersì M16UDS | Mini tracked excavator with digging depth up to 2.14 m and operating weight of base version 1600 kg

Mini excavators M16UDS
Compact dimensions
Power and performance
Maximum precision

General Features

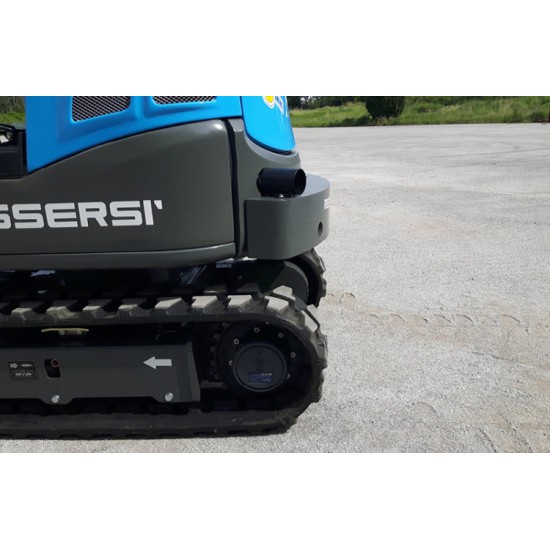

• Innovative design with the tail always remaining within the width of the tracks (Zero Tail Swing).
• Variable track width (retracted crawler width of 990 mm) provides easy access to very small job sites.
• STAGE V diesel engine.
• Piston pumps and double speed gear motors.

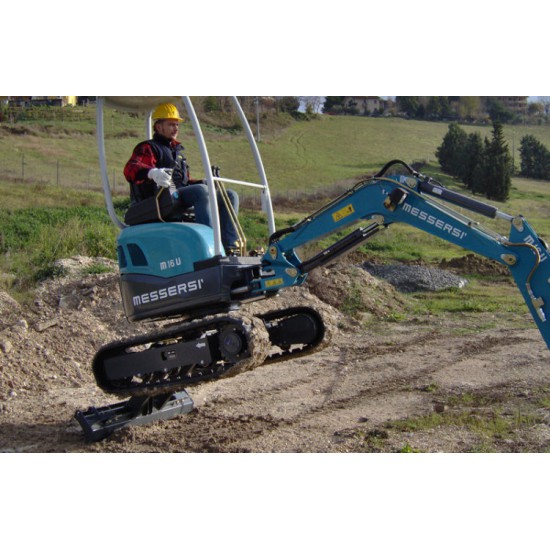

• Extraordinary manoeuvrability due to the use of pilot assisted controls (joy-sticks) to operate arms and buckets.
• Proportional rollers on the joy-sticks to control the boom swuing and the simple/double effect P.T.O. (no pedals).
• Travel levers and servo-controls disabling system by armrest lifting prevents accidents due to unexpected machine movement during entry or exit.
• Suspension and adjustable operator’s seat increases productivity by providing optimum comfort. Also tilting to allow easy maintenance of the main components.

Standard equipment

• Canopy according to TOPS-FOPS norms with removable roof
• 2-speeds travel electric switch
• Completely servo controlled commands
• Oil recovering system on dipstick arm
• 1000 mm long dipstick
• Variable track width retractable to mm 990
• Hydraulic Power Take-Off (P.T.O.)

USE & MAINTENANCE and SPARE PARTS MANUAL

Options

• Buckets of mm 250, 300, 350, 450, 500 standard, for rocks and for Quick Hitches
• Buckets for slopes standard or swivelling
• Buckets for clening

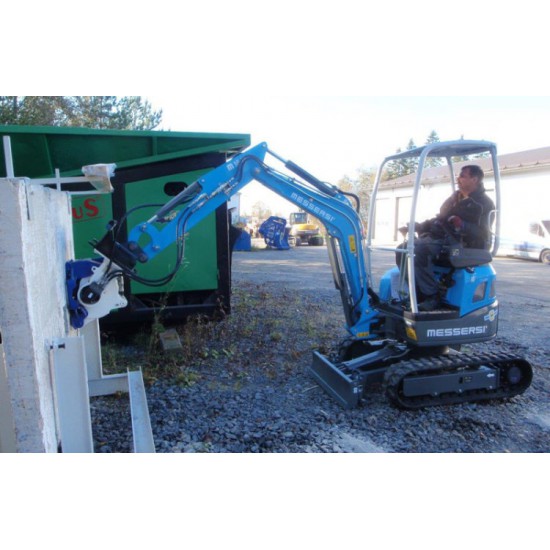

• Mechanical or hydraulic Quick Hitches
• Hydraulic breaker
• Hand breaker

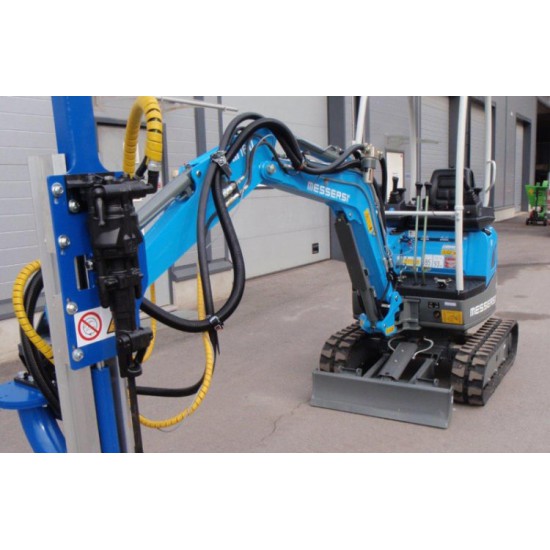

• Hydraulic drill/rig
• Various auxiliary hydraulic lines

*Data, features and illustrations are not binding and may be altered without any notice.

Weight

1600kg

 Engine power

STAGE V

15.9kW

Digging depth

2145mm

Type

Zero tail swing

Extendible tracks
