LEKROLIFT KL 100-1 (O) | Mechanical Vacuum Lifter

KL 100-1 (O)

The KL 100-1(O) from LEKROLIFT is an automatic suction vacuum lifter designed for safe and efficient handling of non-porous loads up to 100 kg. Its Ø 230 mm suction cup clamps and releases automatically through a specialized mechanism, allowing the operator to focus solely on crane control. Vacuum is generated entirely by the weight of the load, with no external power source or electrical connection. Its robust construction ensures reliable long-term use, while the suction cups provide a gentle and secure grip on delicate surfaces. Handling sheet metal, plastic, glass, wood, or polished stone becomes easier, more efficient, and safe. The (O) version, featuring a single suction cup and compact design, is ideal for small loads.

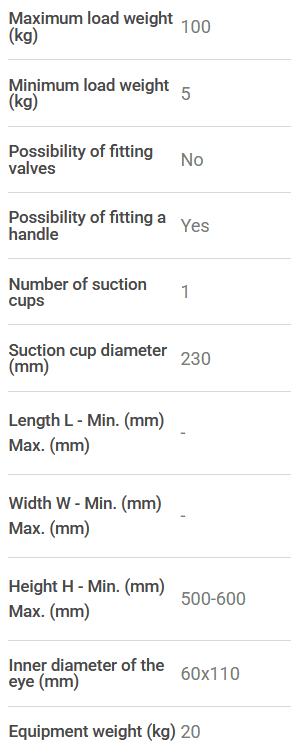

Standard Items:

Maximum load weight (kg): 100

Minimum load weight (kg): 5

Possibility of fitting valves: No

Possibility of fitting a handle: Yes

Number of suction cups: 1

Suction cup diameter (mm): 230

Length L - Min/Max (mm): -

Width W - Min/Max (mm): -

Height H - Min/Max (mm): 500-600

Inner diameter of the eye (mm): 60x110

Equipment weight (kg): 20
