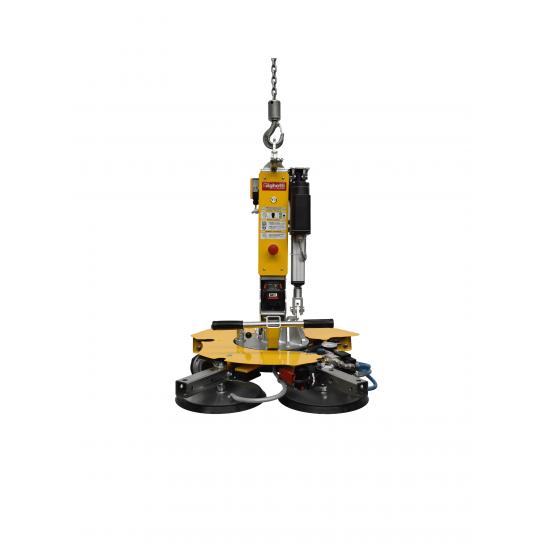

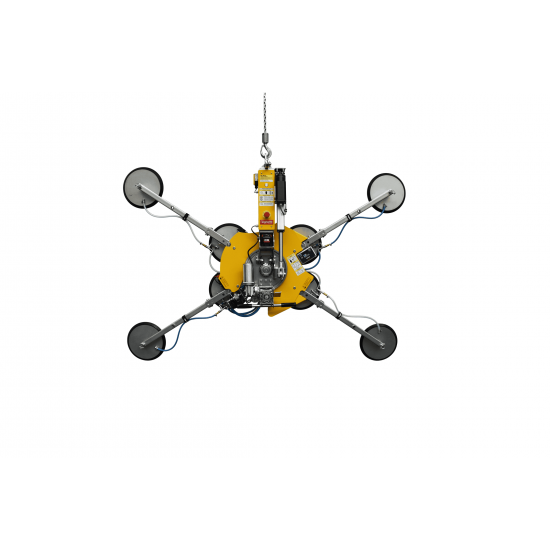

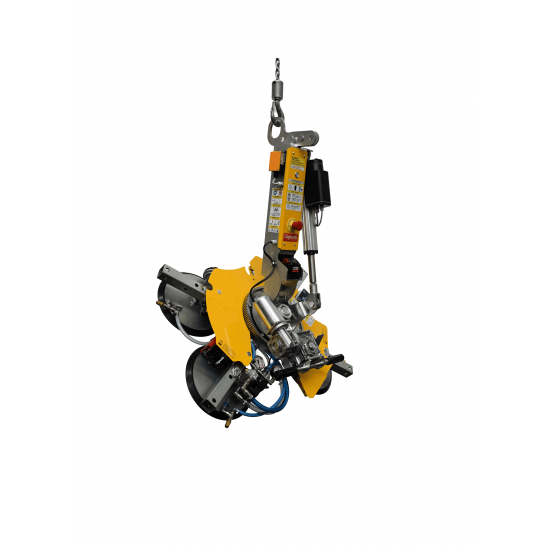

Righetti VB-A800-RCEBE | Powered rotation and tilt system for vacuum lifters with lifting capacity up to 800kg and 360° electric rotation

VB-A800-RCEBE

- The VB-A800-RCEBE is an advanced electric movement system designed for VB-RCMBM series vacuum lifters with manual movements. The system replaces the standard lifting arm and adds powered rotation and powered tilt, significantly improving ergonomics, precision, and efficiency during glass handling operations.
- The VB-A800-RCEBE features an ultra-compact and lightweight structure, allowing easy integration on both new and existing VB series vacuum lifters. It is compatible with models manufactured from 2010 onwards, while compatibility with older models must be verified.
- The system provides 360° continuous electric rotation and 0–90° electric tilt, both controlled through a wireless remote control. If the vacuum lifter already includes remote-controlled suction and release functions, all controls can be integrated into a single remote control unit.
- The independent 18V 5Ah lithium battery power supply and dedicated power switch ensure operational flexibility and high autonomy.

Advantages
• 360° continuous electric rotation
• 0–90° electric tilt
• Compact and lightweight design
• Easy upgrade for existing vacuum lifters
• Improved handling precision
• Wireless remote control
• Independent lithium battery power supply
• Compatible with vacuum lifters manufactured from 2010 onwards
• Enhanced ergonomics and operational safety
• Ideal for glass installation and façade applications

Technical Specifications
• Type: electric movement system for vacuum lifters
• Maximum lifting capacity: 800 kg
• Electric tilt: 0–90°
• Electric rotation: 360° continuous
• Power supply: 18V 5Ah lithium battery
• Control: wireless remote control
• System weight: 44 kg
• Structural depth: 222 mm
• Structural depth with vacuum lifter: 330 mm

Compatibility:
• VB2 RCMBM (d4)
• VB4 RCMBM (d4)
• VB4 RCMBM PRO (d4)
• VB6 RCMBM (d4)
• VB8 RCMBM (d4)
• VB4+4 RCMBM (d4)
• VB4+4 RCMBM XL (d4)

Standard Equipment
• Electric rotation system
• Electric tilt system
• Wireless remote control
• Rechargeable 18V lithium battery
• Independent power switch
• Compact lifting arm

Applications
• Glass installation
• Façade installation
• Vacuum lifting applications
• Industrial installations
• Precision glass handling operations
• Existing vacuum lifter upgrades
