COME UP CWG-10077 | Single-phase hoist with wire rope 58 m 300 kg lift operation 220 V

CWG-10077

• Positive retention of wire rope on to drum
• Electromagnetic spring-applied failsafe brake
• Heavy duty high efficiency ball bearing on all running surfaces
• Planetary gears for maximum mechanical efficiency
• Enclosed drum flange to prevent rope becoming trapped between drum and support steel plates
• Quiet running
• Emergency stop function switch is available upon request
• Low voltage control ass'y is available upon request

• Lifting capacity: 300 kg at wire rope top layer
• Lifting speed: 12 – 19 m/min
• Power source: 1 phase, 110V, 220-240V
• Motor rating IP44: 1.5 kw x 4 poles induction motor
• Gear ratio: 41:1
• Maximum lifting height: 58 m
• Braking methods: Electromagnetic
• Wire rope: 6 mm x 60 m
• Drum length: 150 mm
• Drum dia.: 102 mm
• Drum flange dia.: 180 mm
• Mounting bolt pattern: 197 mm x 156 mm

*Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

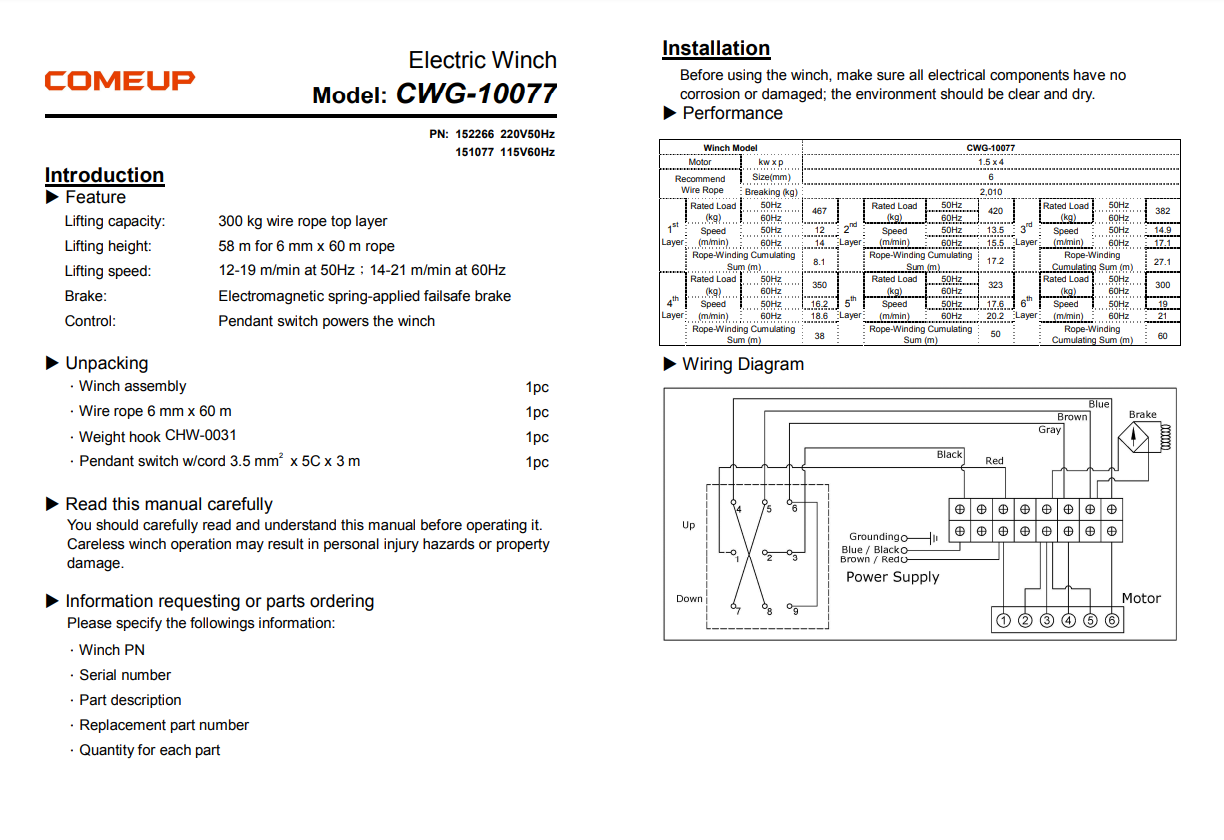

Lifting Capacity, Lifting Speed and Rope Capacity:

Note: Above performance ratings are based on 50Hz supply.

 Pulling Load Capacity for Various Inclines in kg

Note:

1. All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
2. Use a snatch block for double line operation, to increase line pull by approximately 85%
3. The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

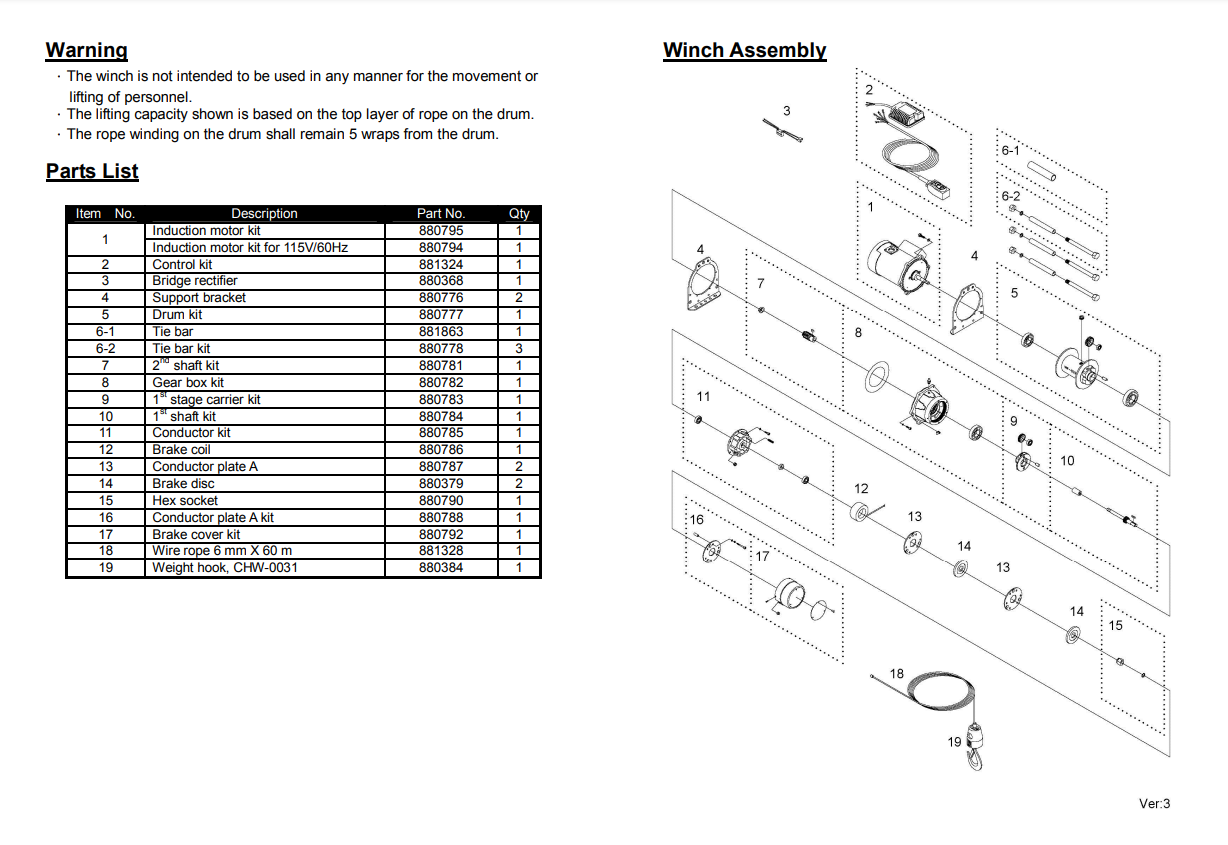

Warning

• The winch is not intended to be used in any manner for the movement or lifting of personnel.
• The rated lifting capacity shown is based on the top rope layer on the drum
• The rope winding on the drum shall remain 5 wraps from the drum


Warranty

• Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.
