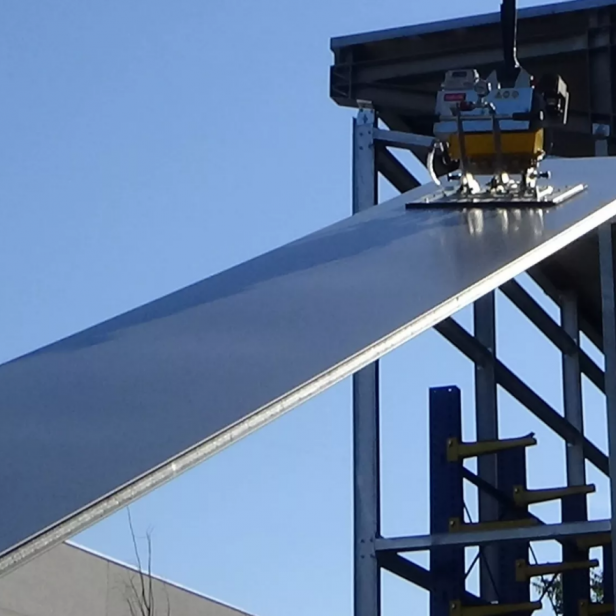

Cladding Vacuum Lifter for installing facade panels, mounting cold rooms CL-M1 UP TO 750KG

The CL-M1 series contains a wide range of single-pad models with load capacities up to 750 kg. This vacuum lifter is perfect for lifting and installing insulated wall panels.

Power supply

The Cl-M1 series is powered by batteries, making it suitable for work on the construction site. The batteries can be recharged using the charger provided.

Movements

The manual tilting system allows vertical – horizontal movement and vice versa.

Structure

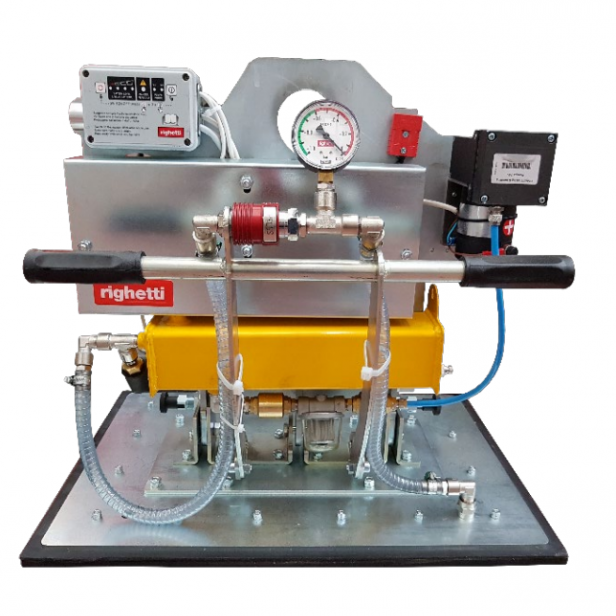

The CL-M1 consists of a single suction pad.

The dimensions of the suction cup depend on the weight and size of the load to be lifted. Due to its special composition, the suction pad adheres perfectly to the surface of the insulated panels, allowing immediate suction of the load.

Safety

The entire lifter is controlled by the vacuum control unit, which monitors the vacuum level in the circuit, the status of the batteries and the presence of any problems. In the event of problems, it alerts the operator via audio-visual alarms.

Security systems

• The safety systems for the load and for the operator are the basis of our Vacuum lifters design.
• To maximize reliability, our Vacuum Lifters are equipped with state-of-the-art safety systems designed specifically.

Below we present the main ones.

• The gripping and release of the slabs and panels is carried out by activating a valve to open and close the vacuum. The double action grip and release control with safety against inadvertent starting can be performed by a manual valve positioned on the lift structure, or via a wired push-button panel or a wireless remote control.
• By means of a vacuum gauge with colored scale installed on the vacuum circuit, it is possible to constantly check the depression reached in the vacuum circuit. The intervention of the safety system is regulated by a vacuum switch mounted on the vacuum tank.
• A large vacuum tank, in addition to accelerating gripping, coupled with non-return valves ensures that the load is not released immediately upon the occurrence of a sudden power cut, ensuring the safety of the operator and the material being handled.
• The Vacuum Lifters is also equipped with an autonomously powered acoustic and visual alarm system that alerts the operator to any dangerous situations.
• On battery-powered models, the control unit monitors the vacuum level, checks the correct operation of the main components and monitors the battery charge.
• Our lifting equipment are designed and manufactured in full compliance with the Machinery Directive and safety system standards.

They are supplied complete with CE marking, Certificate of Conformity and Use and Maintenance Booklet.

Righetti Vacuum Lifters’ are designed and built entirely in Italy.

Further guarantee for the quality of components and the availability of spare parts

Control unit

• Control unit for suction cup lifters: an on-board computer to manage the lifter in greater safety.
• It checks the functionality of the main components of the lift and carries out the self-test in case of failure. The control unit is complete with microprocessors for controlling the power supply circuits.
• It monitors the vacuum level of the system, signaling any anomalies with a visual and acoustic alarm. The volume level of the audible alarm can be adjusted according to the noise of the working environment so that it is always audible by the operator.
• The shutdown of the Vacuum lifter takes place with a coded procedure to avoid the involuntary shutdown, and consequent release of the load, thus ensuring greater safety for the operator and for the load.
• It manages and monitors the batteries and is programmed to eliminate the risk of complete discharge of the batteries. In addition to indicating the battery charge level, the on-board computer monitors and protects the batteries by clearly warning the operator of the minimum charge level with sequential alarms.
• The built-in economizer greatly increases the life of the batteries.
• With the new generation control unit, the safety of the Vacuum lifter and of the operator is increased even more.

Immediate suction of the load for sandwich panels

• Speed ​​and safety are two essential elements, both on construction sites and in production environments.
• Righetti Vacuum Lifters wanted to design its own vacuum lifters to guarantee these two aspects. The immediate suction of the load takes place thanks to the capacious vacuum pre-refill tanks, the wide passages of the pipes and the fittings: a suction system designed specifically for vacuum lifters that have to suck the load with surfaces that are not perfectly smooth, micro-ribbed or not planar due to the length of the sandwich panel.
• The vacuum is prepared already when the lifter is switched on, completely pre-refilling the vacuum tanks and ensuring constant vacuum, with a charge always at the highest level. When the suction is activated, it is not necessary to wait for the creation of the vacuum, but the latter instantly enters the circuit, immediately reaches the suction cups and guarantees a fast and safe grip.
• To further facilitate the process, the lifters are equipped with articulated plates, which, thanks to the internal articulation mechanism, are able to adapt to the inclination of the sandwich panels, facilitating grip.

Wireless remote control

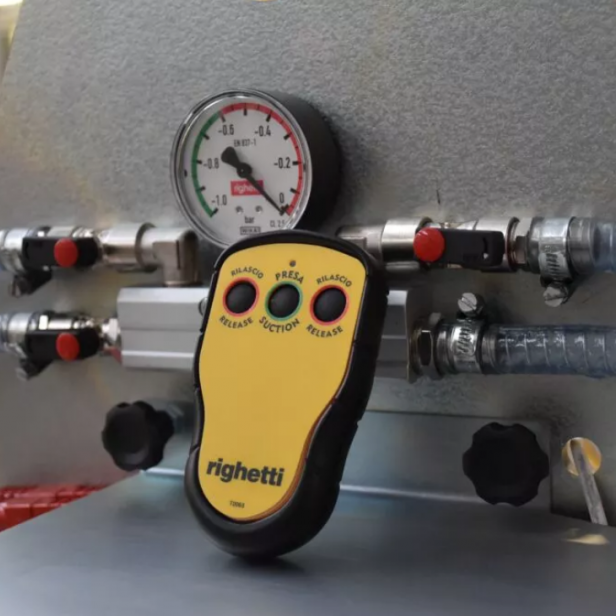

• Wireless radio control, as an alternative to the manual controls on the structure, is available as an option.
• The Righetti Vacuum Lifters’ radio-controlled equipment allow the vacuum lifters to be operated remotely, with the practical wireless radio control. It is a particularly suitable solution for radio-controlled lifters used on construction sites and for those work situations in which the load is particularly complicated to reach and it is more practical and quick to activate the release of the load at a distance.
• The remote control for vacuum lifters allows the operator to keep an adequate safety distance, to activate and deactivate the suction cups grip in a practical and fast way, without having to slow down the work to get closer to the lifted load.

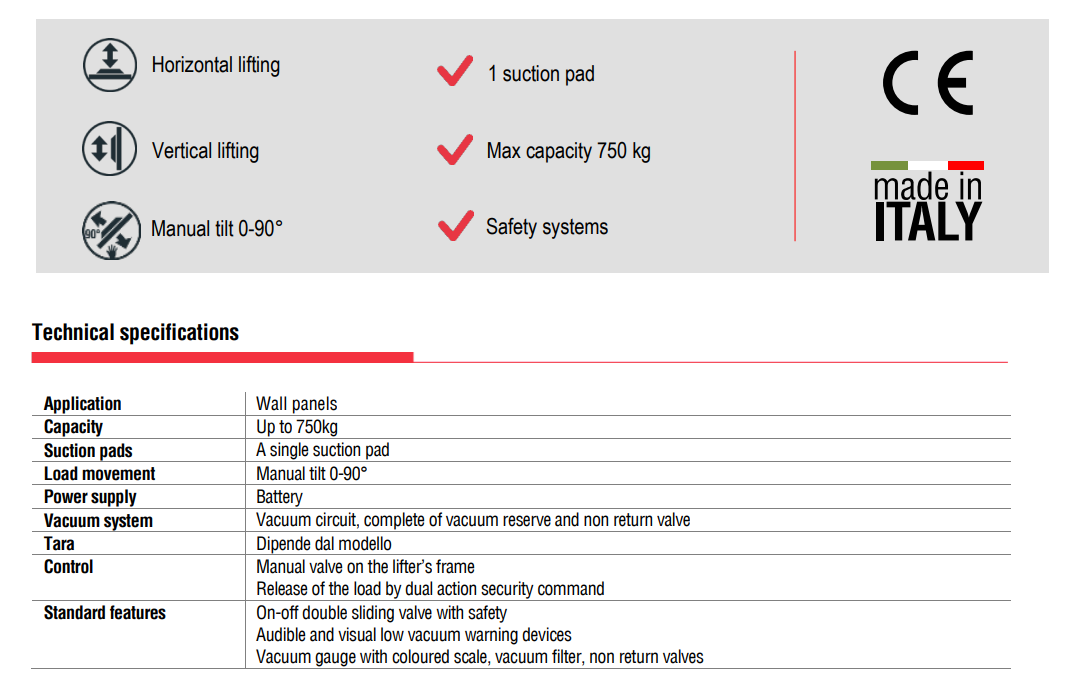

Cladding Vacuum Lifter for installing facade panels, mounting cold rooms

• Lifting capacity up to 750 kg
• Battery operating system
• 1 suction pad
• 0-90° tilting system
• Single vacuum circuit
• Radio remote control as an option
