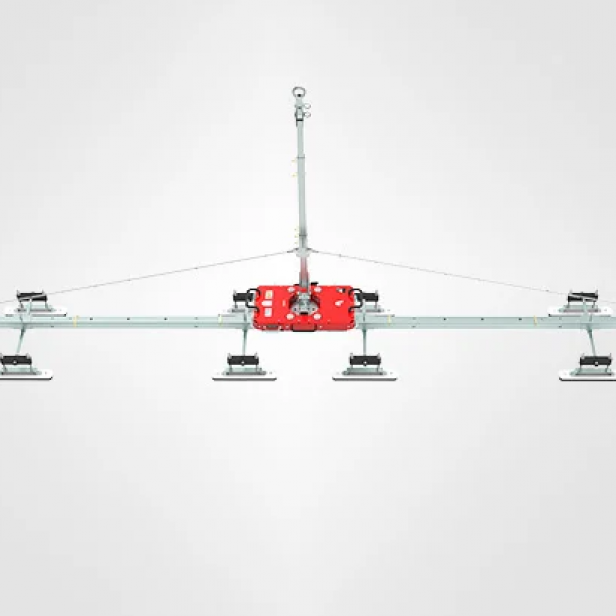

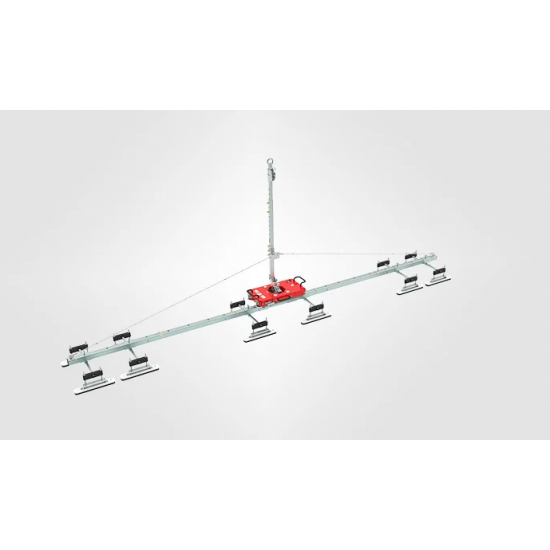

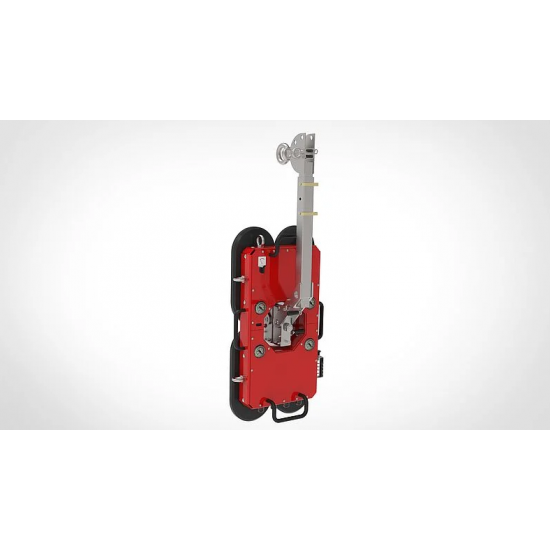

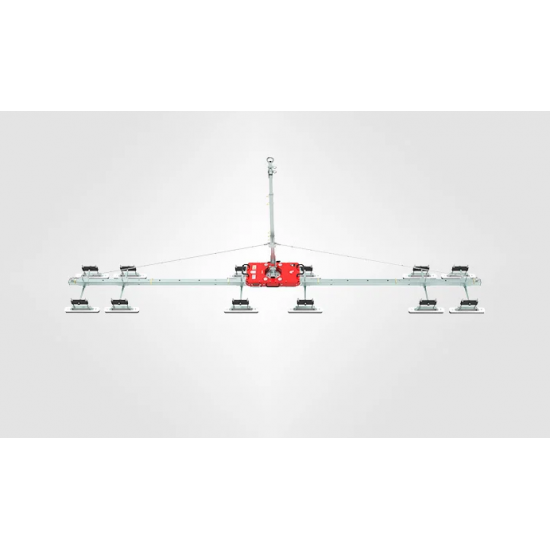

UNIVERSAL LIFTING VACUUM CSL TYPE Z FOR LIFTING GLASS-METAL SHEETS-PANELS AND STONE UP TO 500KG

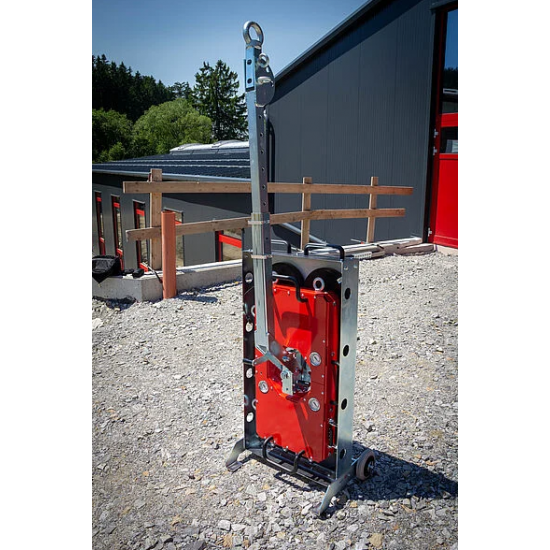

ConstructionLifter CSL Type Z

Out all-rounder for a wide variety of surfaces on the constuction site

Special safety and flexibility - our new product for use on the construction site.

• The ConstructionLifter CSL Type Z is our all-rounder for construction site use. With a maximum weight of 500kg, panels can be moved not only vertically but also horizontally. Our proven four-circuit technology, which ensures the greatest possible safety in mobile construction site use, is absolutely unique.
• Our suction pads with a particularly elastic and robust sealing lip are suitable for both smooth and structured surfaces. The built-in double battery system not only ensures a long service life of up to 200 vacuuming processes, but also ensures particular safety on construction sites thanks to the redundant design of the batteries.


 Diverse areas of application:

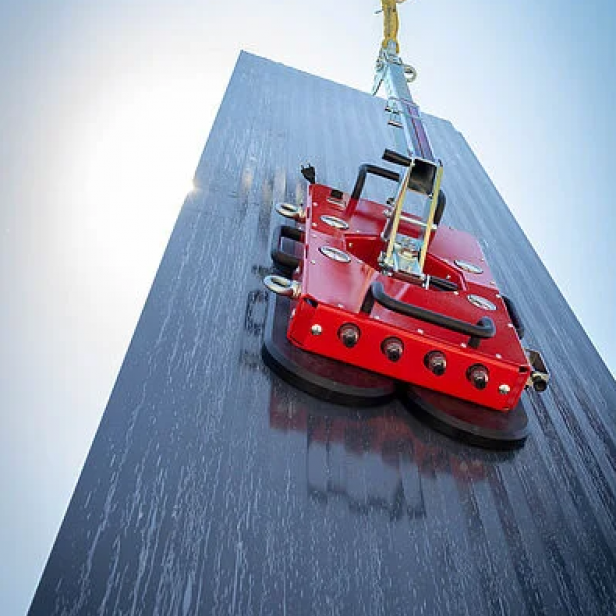

• Handling of smooth and structured surfaces

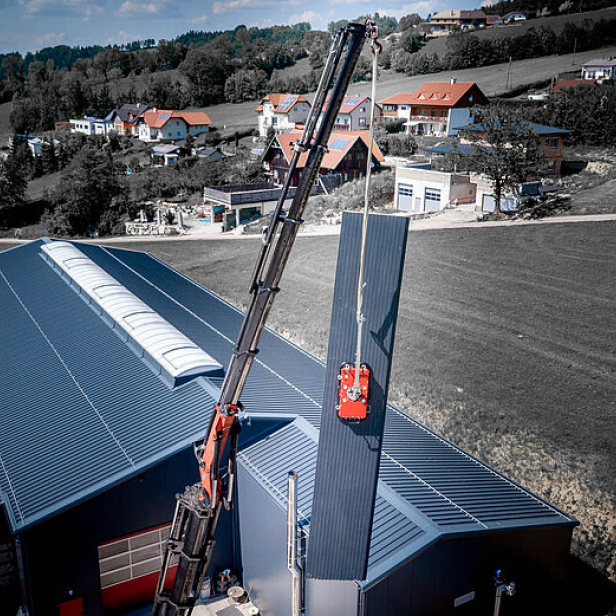

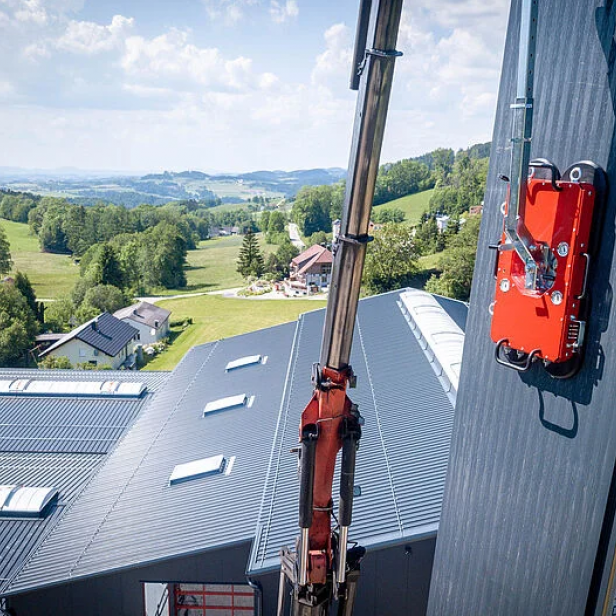

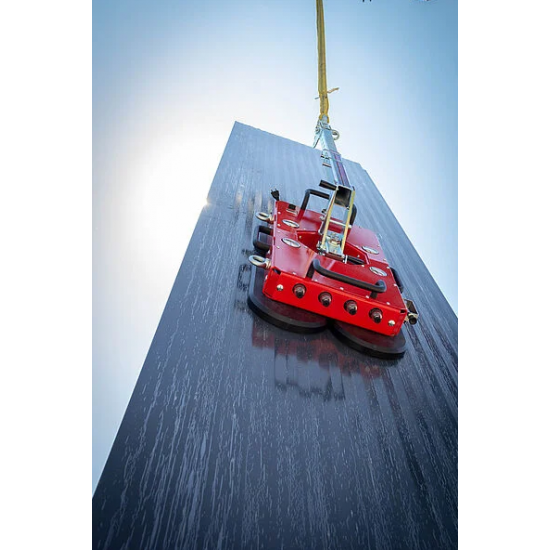

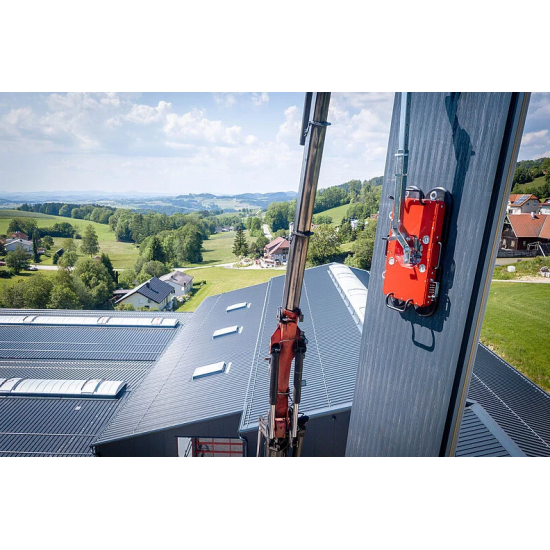

• Installation of facade elements

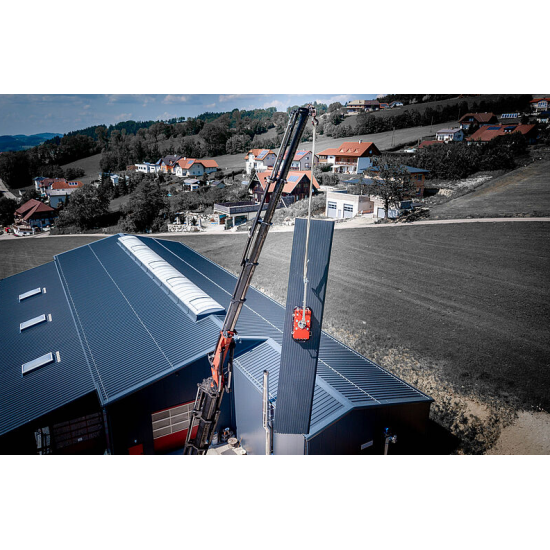

• Installation of glass or stone elements and metal sheets

 Product features:

• Max. load: 500 kg
• Universal suction cups for structured and smooth surfaces
• Four-circuit technology for maximum safety
• Minimum priming time thanks to the high suction capacity of the pumps
• Special ergonomics: several handles enable easy handling
• Dual battery system for a long service life (up to 200 suction processes)
• Horizontal and vertical transport possible (rotating and tilting function)
• Low dead weight due to aluminum body

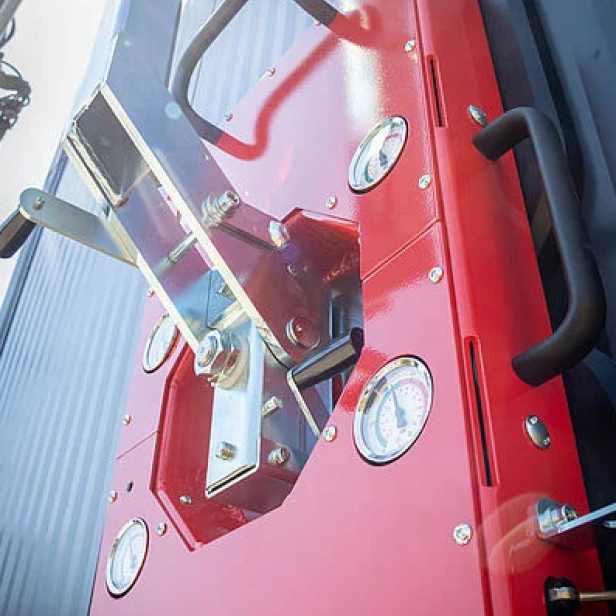

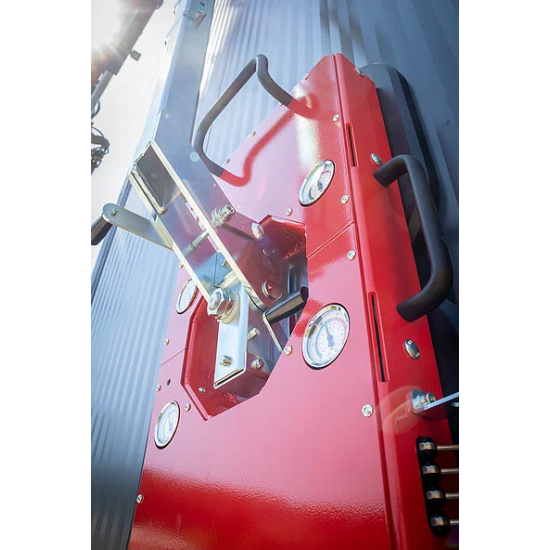

• Four pressure gauges and acoustic warning signal for pressure monitoring
• Water separators ensure safe use even in damp conditions
• Lifting eye for assembly rope
• Number of suction plates 4 pcs BA 35
• glass sheet size min: 1500mm x 360mm
• glass sheet size max: 3000mm x 2000mm
• Power supply gel battery: 2 x 12 V / 4.5 Ah
• Charging station: integrated in the device
• Charging voltage: 230 V
• Duty cycle: approx. 300 suction processes per battery charge
• Dead weight: approx. 45kg
• Dimensions: approx. 1500 x 360mm
• Load capacity: 500kg (at 300m above sea level)
• Material/color: Surface coating RAL 3000, steel parts galvanized
• Security system:
• Each vacuum circuit of the lifter is equipped with a warning horn and non return valve.
• To check the operating pressure, a vacuum manometer with red/green area is fitted for each suction circuit.
• All operating elements are located in the base body.
