BARBARIC SWL PLANK LIFTER - 1500KG

SWL PLANK LIFTER
Handling of cut or dried planks

The PlankLifter is a robust special lifting device for moving whole posts, structural timber, sections such as squares or rough sawn boards by one operator. Due to different and individual designs, besides the transport of single planks, also a stock transport can be realized.
The PlankLifter is supplied with a chain hoist or for hooking into your on-site hall crane. Working loads up to 2000 kg and 16 m screed length are no problem for the vacuum manipulator.

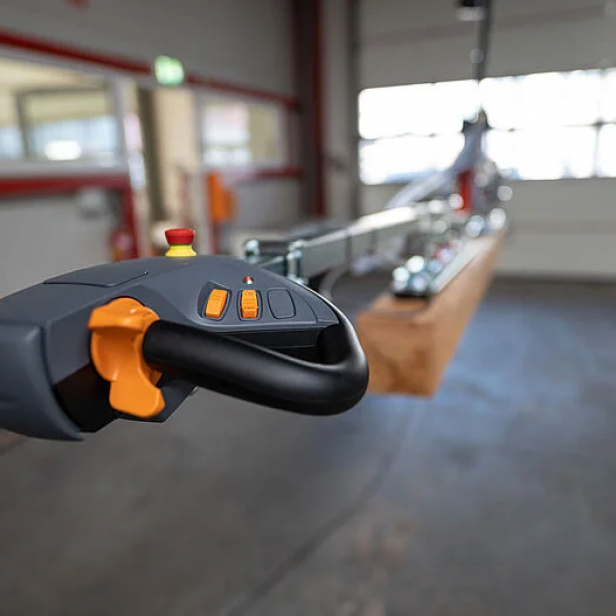

It can be controlled via an operating handle on the lifter or, optionally, it can also be designed as a non-contact, fully radio-controlled system.

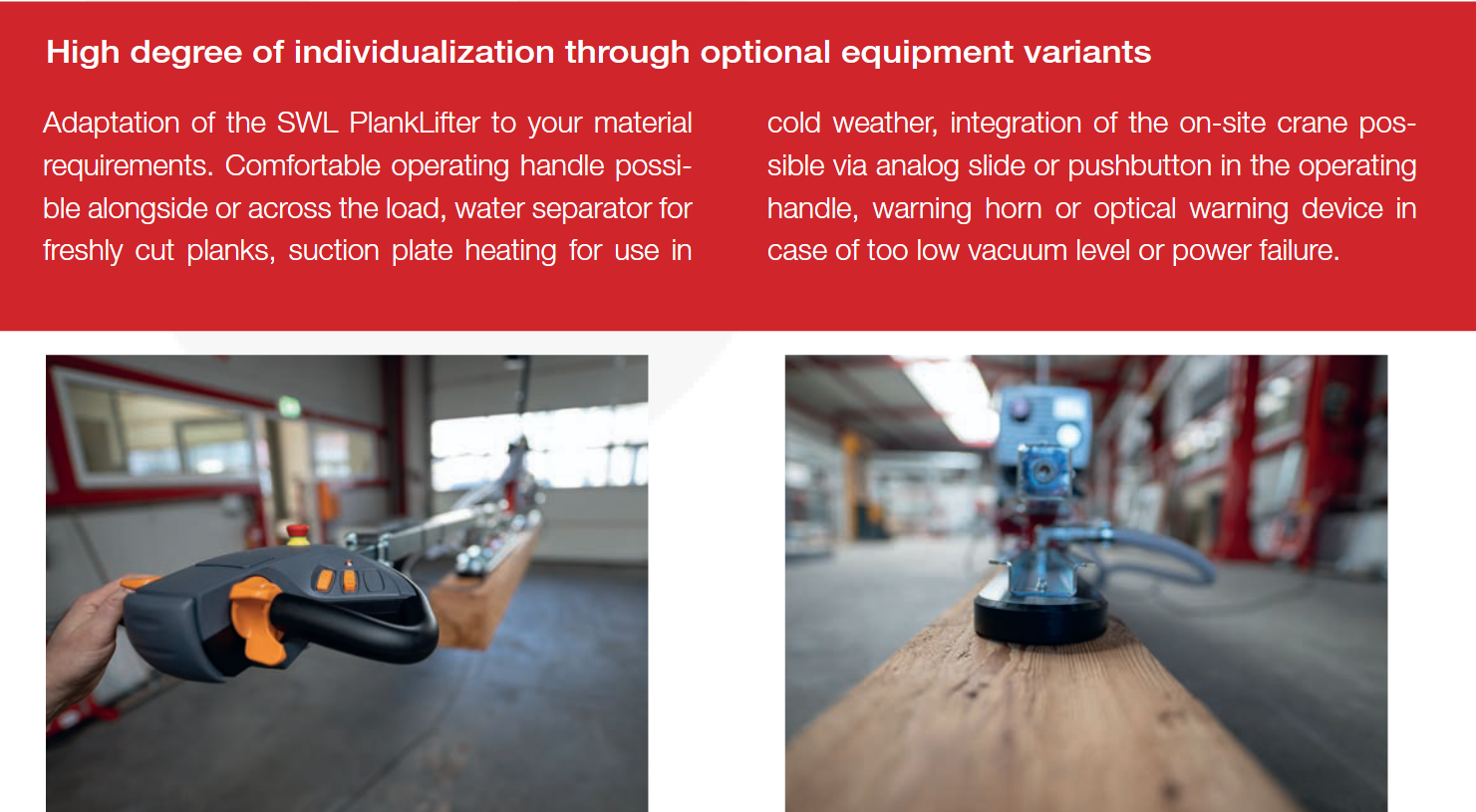

Functions & Features

• Horizontal manipulation of planks, posts, squares and boards
• Single transport or stock transport (special suction cups)
• Material qualities rough sawn, planed, cracked (special suction cups)
• Warning horn (or optical warning device) in case of too low vacuum level or power failure
• Safety vacuum reservoir > Optional water separator (Part no: 99637)
• Optional suction plate heater for use in cold weather conditions (Part no: 99620)
• Optional parking feet (Part no: 99626)
• Stepless lifting and lowering in combination with comfort control
• Operating handle lengthwise or crosswise to the load
• Radio-controlled manipulation optional
• Suitable for use in light weather conditions
