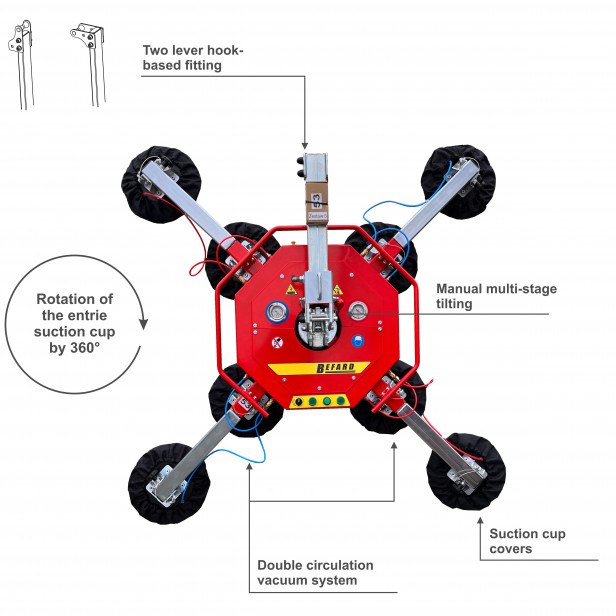

BEFARD GLASS VACUUM LIFTER ΧΠ452 WITH MANUAL ROTATION & TILT UP TO 450KG

BEFARD XP 452

Hoist capacity: 450 kg. Number of suction cups: 6 pieces.

BEFARD vacuum grippers are available in a variety of variants in terms of hoist capacity and number of suction cups. Various versions of the BEFARD XP vacuum grippers are tailored to various user needs.

• 360° manual rotation, locked every 45°
• Two independent vacuum circuits, each of them protected
• Integrated vacuum measuring and monitoring device
• Smooth, stepless manual tilting
• Easy, individual configuration of the suction cups, without the use of specialist tools
• Vacuum remote control and charger with battery level indicator

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU

All BEFARD devices are covered by a 12-month warranty

 Specification:

                BEFARD XP 452

• Number of suction cups                6 pieces
• Size of suction cups         Ø 310 mm
• Vacuum system                two-circuit
• Min/max vacuum            -0,6 / -0,8 bar
• Power supply    12 V battery
• Hoist capacity    450 kg
• Weight: 72
