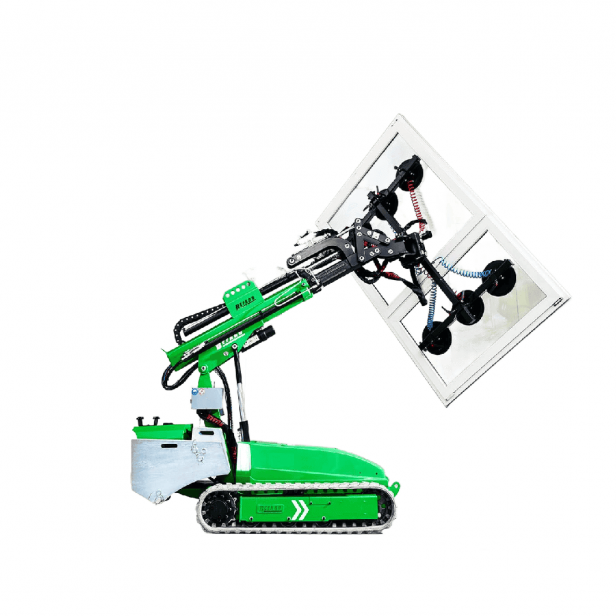

BEFARD XGR800
TRACKED ASSEMBLY ROBOT FOR HEAVY GLASS INSTALLATION

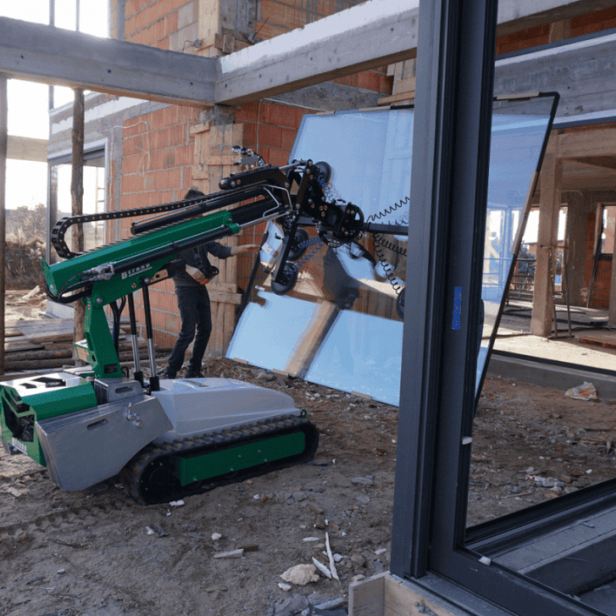

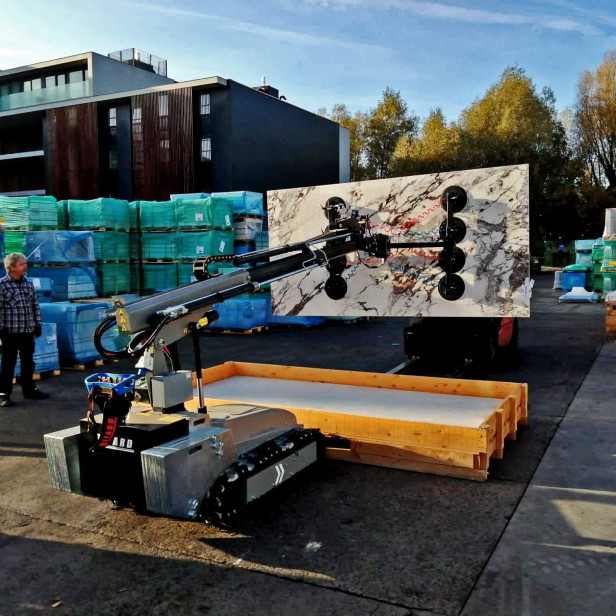

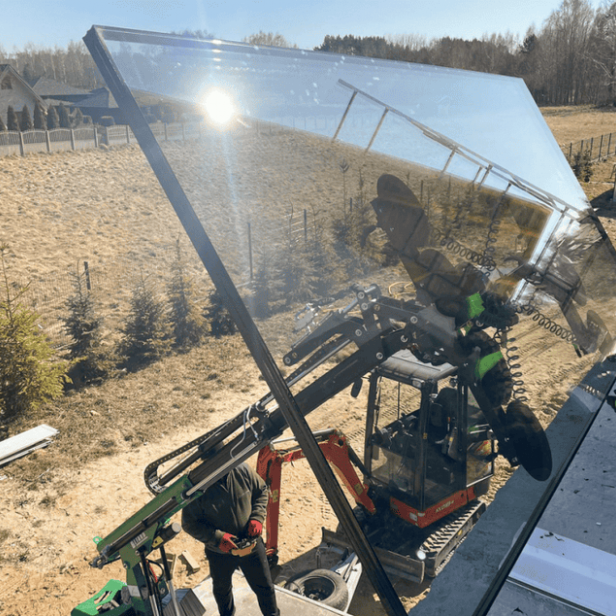

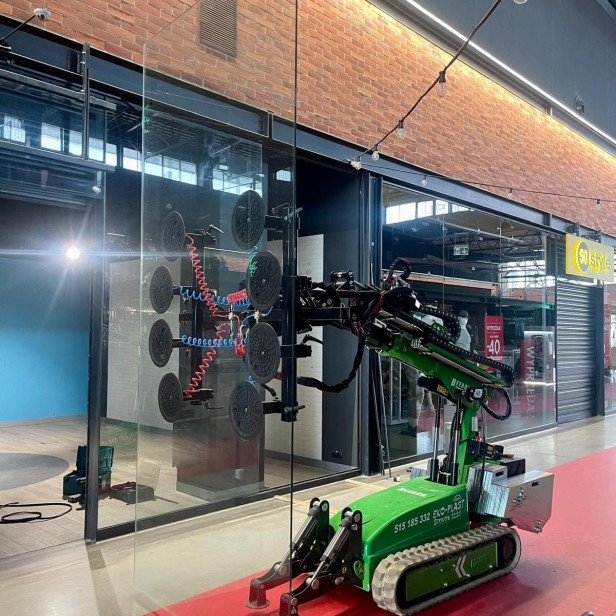

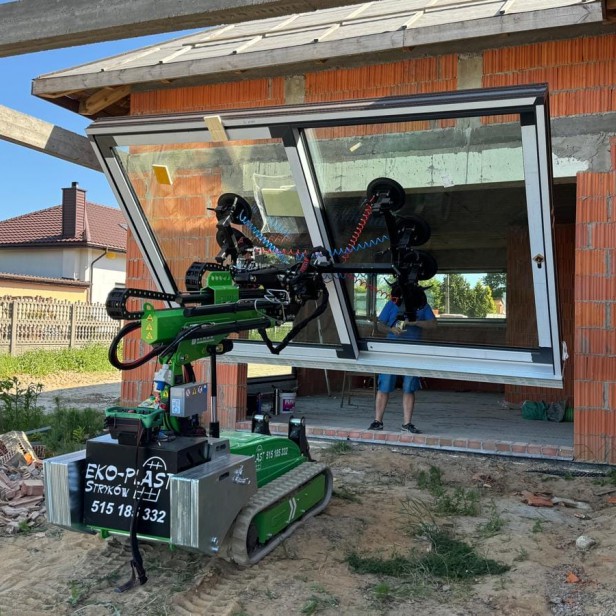

The BEFARD XGR800 is a modern, tracked assembly robot designed for the precise installation of heavy glass panes, windows, and façade elements. Thanks to its durable tracked chassis, the XGR800 performs exceptionally well on demanding construction sites, ensuring excellent stability and mobility even on uneven terrain.

Its compact design allows it to maneuver efficiently in confined spaces, while the advanced hydraulic head ensures precise load positioning. The BEFARD XGR series is the ideal solution for companies specializing in window installation, façade construction, and glazing operations.

STANDARD FEATURES
EVERYTHING THAT MATTERS

Machine Reach

Depending on the configuration, the machine is equipped with 1, 2, or 3 hydraulic extensions, providing a total reach of:

• XGR800.1 3.95 m

• XGR800.2 4.75 m

• XGR800.3 5.55 m

Lifting Capacity

• Maximum capacity: 800 kg

• Equipped with 8 individually controlled vacuum cups, each with its own shut-off valve for flexible configuration based on load size.

Fully Remote-Controlled Operation

Radio remote control for driving and crane movement improves safety and precision.
A charger for the remote is included as standard.

Power Supply Options

Three selectable power sources:

• Combustion engine

• Hybrid (combustion + electric: 230V / 400V / 110V)

• Li-ion batteries

This allows operation in any environment, including indoor spaces requiring zero emissions.

Dual-Circuit Vacuum System

Two independent vacuum circuits comply with safety regulations for glass handling and offer maximum operational reliability.

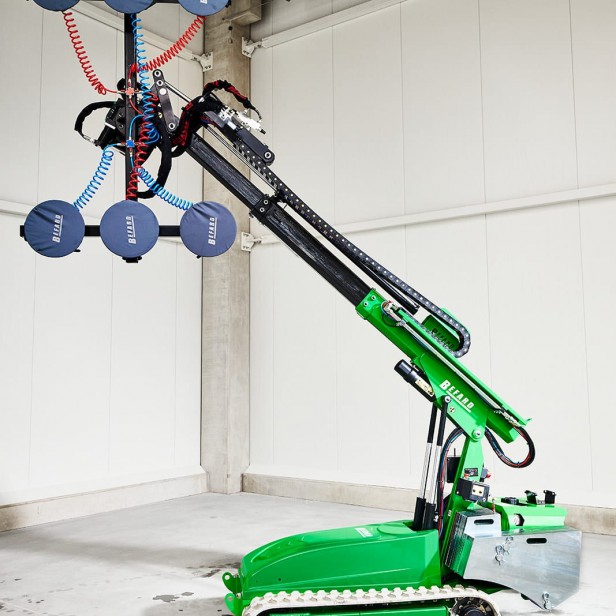

Rotating Suction Cup Frame

A hydraulic rotation system enables smooth and precise positioning of glass panes.

Hydraulic Lateral Shift

The suction cup frame can be shifted ±10 cm horizontally, allowing fine adjustments without repositioning the machine — especially useful in tight spaces.

Non-Marking Tracks

Standard tracks designed not to leave marks on delicate surfaces.

Two Operating Modes

• Turtle Mode: precise, slow movements for installation

• Hare Mode: faster travel speed for moving around the site

UNMATCHED POWER FOR MORE EFFICIENT WORK

Key Features

• Maximum lifting capacity: 800 kg

• 1 / 2 / 3 hydraulic extensions with total reach options of 3.95 m / 4.75 m / 5.55 m

• Radio remote control for both crane functions and driving

• Dual-circuit vacuum system

• 8 vacuum suction cups

• Hydraulically rotating suction cup frame

• Hydraulic lateral frame shift ±10 cm

• Manual tilting suction cup frame

• Hydraulic tilting for lifting glass from horizontal to vertical

• Non-marking rubber tracks

• Two driving modes (Turtle / Hare)

• Vacuum shut-off valves on each suction cup

• Custom RAL colour

BEFARD XGR/XGRe 800.1
Specifications

• 1 hydraulic extension

• Vertical reach: 3.95 m

• 8 suction cups

• Radio remote control: Yes

• Dual-circuit vacuum system: Yes

• Maximum lifting capacity: 800 kg

• Hydraulic rotating suction cup frame (remote-controlled)

• Hydraulic side-shift ±10 cm (left/right)

• Hydraulic tilt for picking from horizontal and up-ending to vertical

• Machine weight: 1,250 kg

OPTIONAL EQUIPMENT

• Li-ion power – Fully electric; can operate directly from cable while charging

• 230V / 110V mains power supply – for hybrid or combustion versions

• HS spacers – Cup depth adjustment

• Individual shut-off valves

• Auxiliary hook

• Frame-mounted forks

• LED lighting

• Overload protection system

• Custom RAL colour
