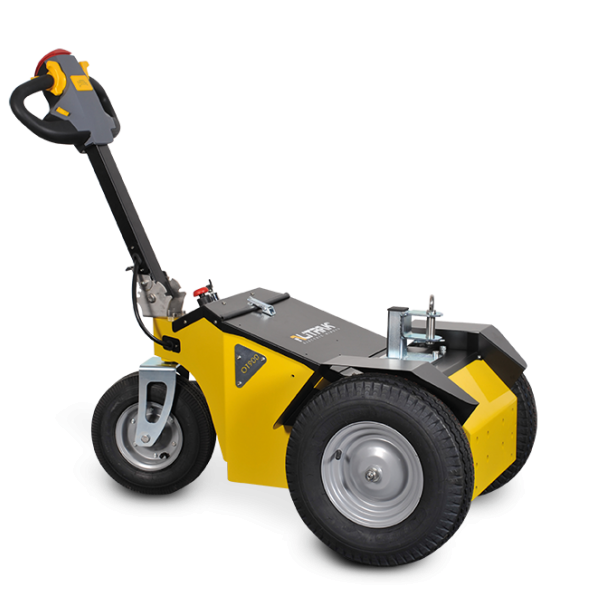

ALITRAK ELECTRICALLY DRIVEN TUG OT600 - 2000KG

Electric tow tug for up to2000kg!

The OT-600 is a towing equipment, with three wheels and tiller steering. It is designed to easily move trailer trolleys and other containers on wheels, in safety and comfort, reducing physical stress and improving productivity. Many configurations are possible by choosing among different types of batteries and tires. It can be fitted with several accessories that make the standard product adaptable to many uses.

Specifications

• Pulling capacity on flat surface: 2000 Kg
• Loading capacity on flat surface: 300 kg
• Pulling speed: fast 5 Km/h – slow 2,5 Km/h
• Pushing speed: fast 3,5 Km/h – slow 1,8 Km/h
• Battery recharging time: approx. 8 hrs.
• Battery: LEAD ACID 2 x 12V/72 Ah C20 (or AGM 2 x 12V/85 Ah C20)
• Electric motor: 24V/600 watt DC S2 20 min
• Length: 1375 mm
• Width: 620 mm
• Height: 1000 mm
• Weight: 130 kg
• Dashboard display: Remaining battery charge
• Battery charger: On board – 13A high frequency
• Speed control: Butterfly type
• Parking brake: Electromagnetic with the possibility of release
• Oil bath differential
