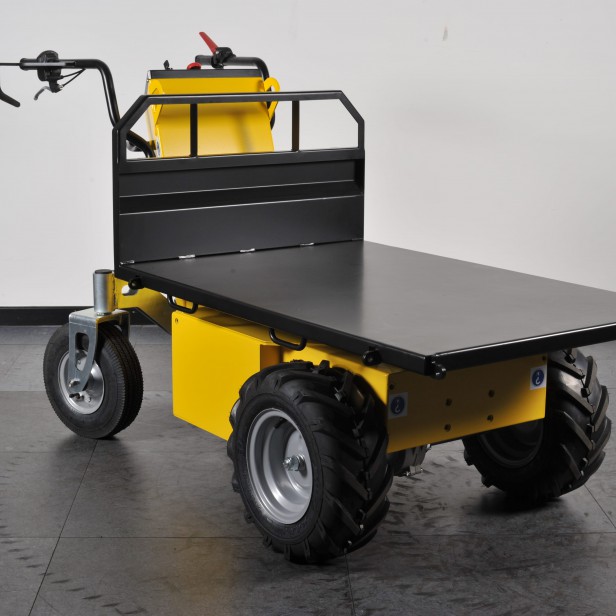

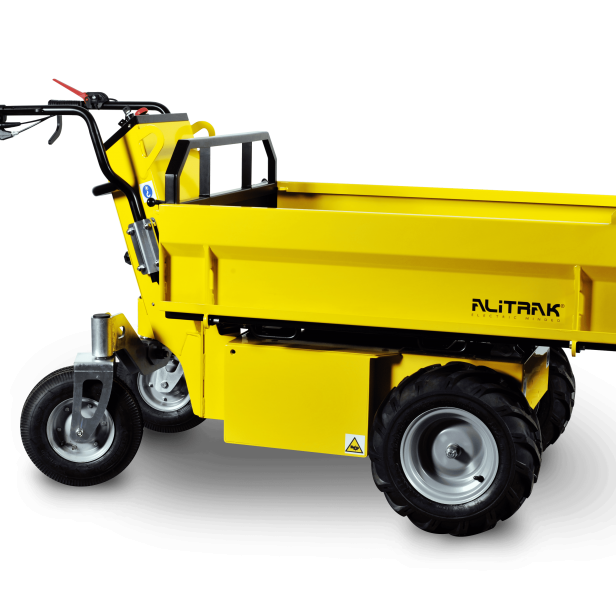

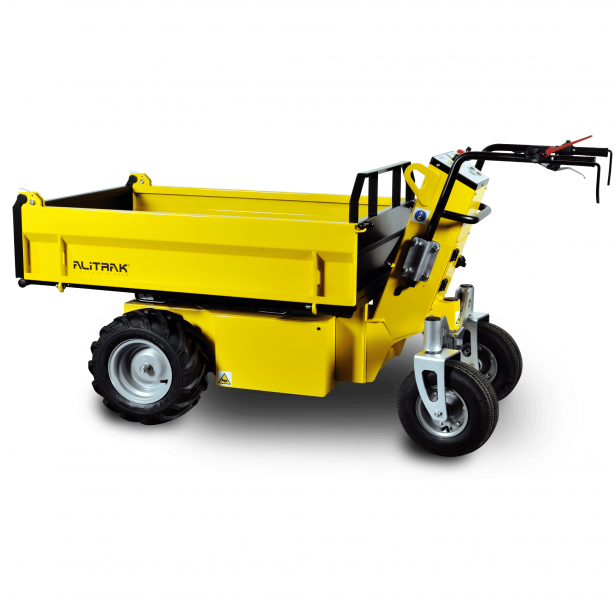

ALITRAK ELECTRIC CARGO TRANSPORTER MT500L S / MT500L P 400-500KG

The MT-500L is a transporter equipped with four wheels, with a solid steel structure. It is designed with motor, batteries and other component protected to work in construction, demolitions and industry.

It is also useful in agriculture, and in garden building works. The “Performance” version here described, is suitable for particularly heavy works and is equipped with high load motor axles and hours meter (ideal for rental situations). Anchor points for the machine lifting are included in the standard version.

Specifications

• Loading capacity on flat surfaces: MT-500L S 400 Kg – MT-500L P 500 Kg
• Max gradient: 20%
• Forward speed: fast 5 km/h – slow 2,5 km/h
• Reverse speed: fast 3 km/h – slow 1,5 km/h
• Battery recharge: approx. 8 hrs.
• AGM battery: 2 x 12V/85 Ah C20
• Electric motor: MT-500L S 24V / 900 Watt DC S1 – MT-500L P 24V / 1200 Watt AC S2 60 min.

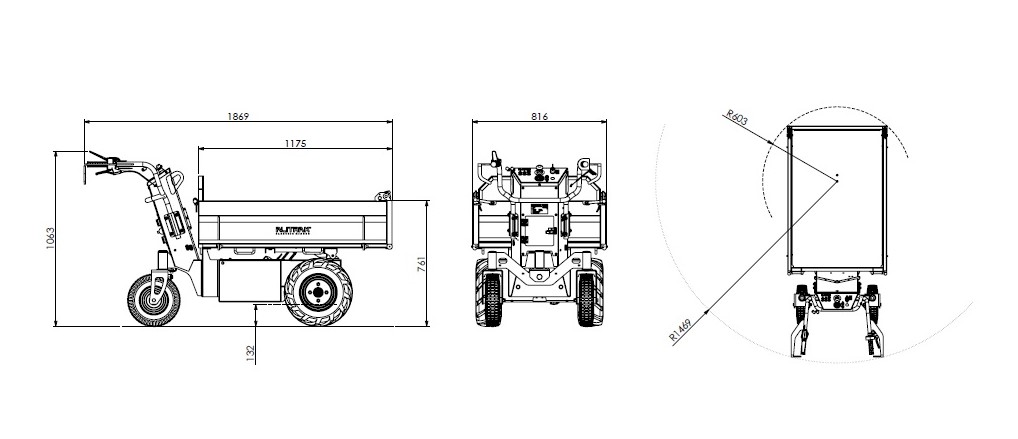

• Length: 1870 mm
• Width: 820 mm
• Height: 1065 mm
• Weight: 225 kg
• Dashboard display: MT-500L S Remaining battery charge, equipment failures – MT-500L P Remaining battery charge, equipment failures, hour meter
• Battery charger: On board 13A high frequency
• Speed control: hand accelerator
• Parking brake: Electromagnetic
• Oil bath differential
