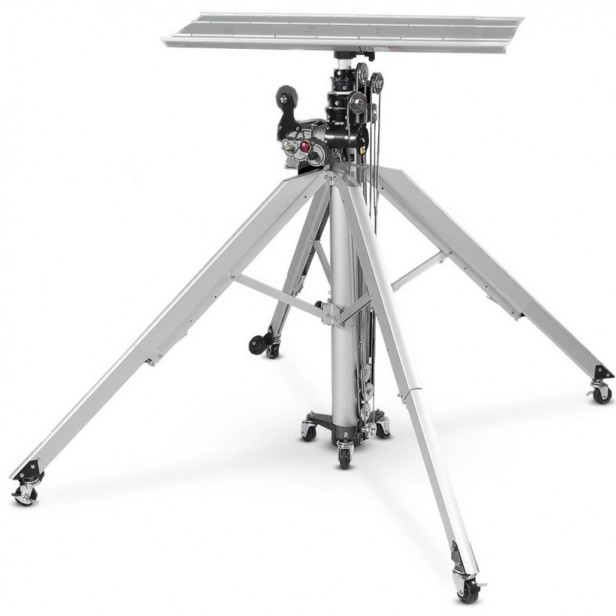

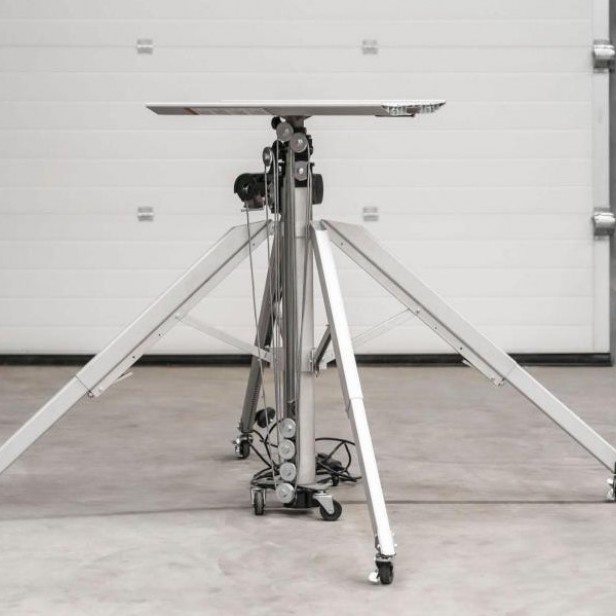

- The CM 520 awning / material lifter is able to lift your loads electrically, effortlessly and time-saving up to 4900 mm working height at the push of a button on the remote control.
- Use the lift to facilitate the assembly of heavy and bulky goods at different work locations.
- Thanks to its compact design, the device can be positioned close to walls and facades.
- Can be used for craft to industry.

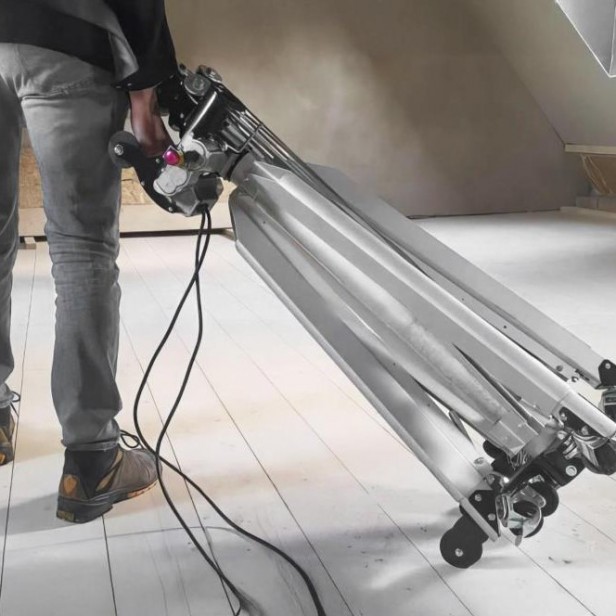

- The essentials in brief: Light weight and compact dimensions for easy transportation Ready for use in seconds - without tools .
- Can be mounted directly on the wall Electric winch with remote control and variable speed Emergency stop button

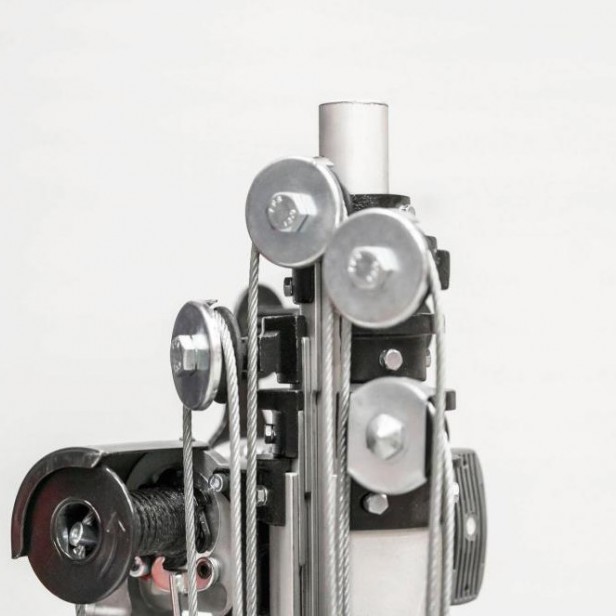

- Manual operation with patented, low-noise winch possible Height adjustment in every foot Lockable wheels for easy change of location on the construction site.
- Rotatable and removable platform

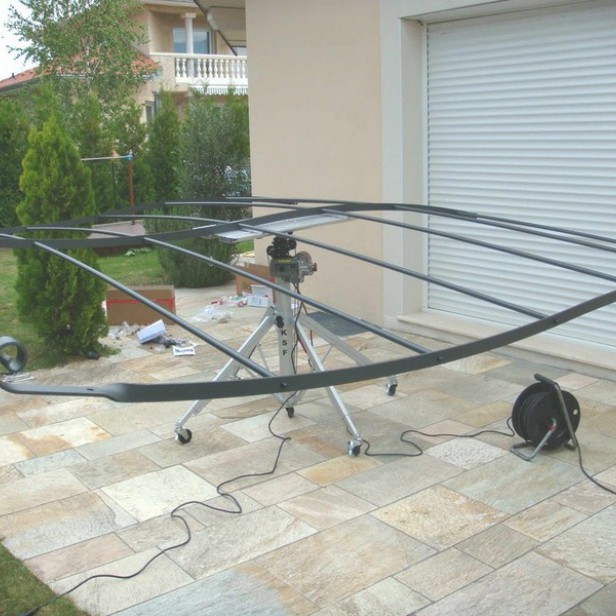

- Place bulky goods such as awnings, air conditioning systems, ventilation systems, switch boxes, pipes, rods, light crossbars or long wooden elements on the 435 x 750 mm platform and let the load be lifted to the desired working height at the push of a button.

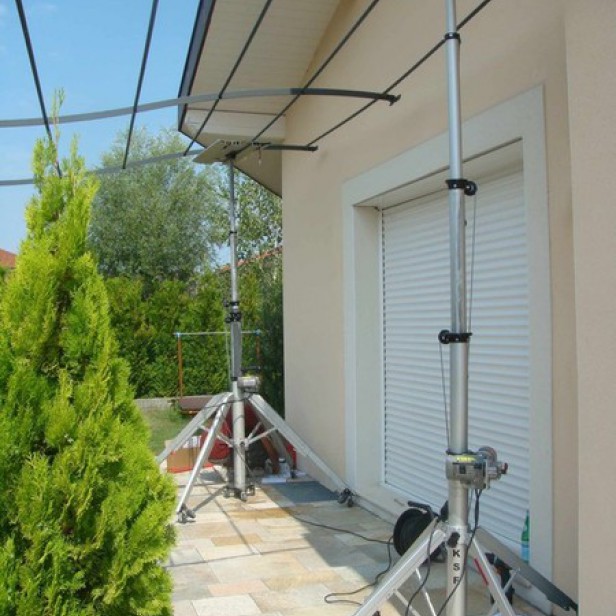

- With the awning lift you can reach a maximum working height of 4900 mm and is therefore able to lift loads up to the 1st floor.
- Arrived at the exact height, the awning lift always keeps the goods at the optimal height for your assembly work.
- Gain greater freedom and easier work processes when mounting on the wall or overhead using the right tool.
- Enable yourself or your employees to work ergonomically and back-friendly.
|1120 mm||4,9 m||140 kg / 3 m|
130 kg / 4 m
90 kg / 4,9 m
|38 kg||380 x 380 mm||1,4 x 1,4 m|

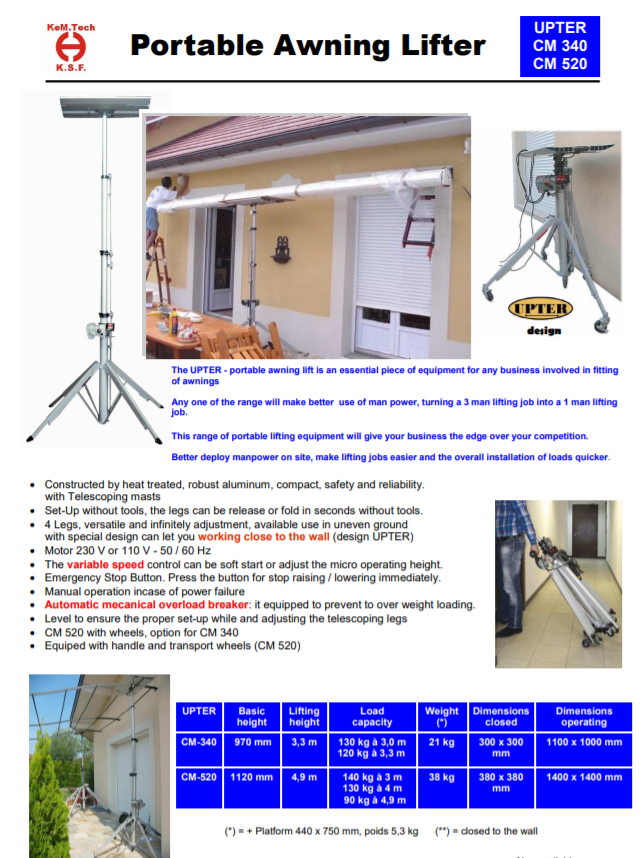

- Constructed by heat treated, robust aluminum, compact, safety and reliability with Telescoping masts
- Set-Up without tools, the legs can be release or fold in seconds without tools.
- 4 Legs, versatile and infinitely adjustment, available use in uneven ground with special design can let you working close to the wall (design UPTER)
- Motor 230 V or 110 V – 50 / 60 Hz
- The variable speed control can be soft start or adjust the micro operating height.
- Emergency Stop Button. Press the button for stop raising / lowering immediately.
- Manual operation incase of power failure
- Automatic mecanical overload breaker: it equipped to prevent to over weight loading.

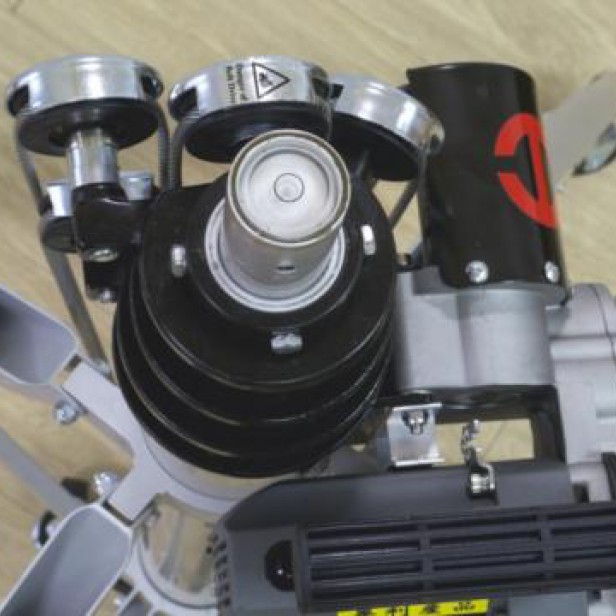

- Level to ensure the proper set-up while and adjusting the telescoping legs
- option wheels and platform extension
