ALITRAK ELECTRICALLY DRIVEN TUG TT3000 - 14000KG

Electric tow tug for up to 14000 kg!

The TT-3000P is a towing equipment on four wheels with a powerful motor, designed to tug heavy loads on wheels. In spite of significant size and weight, it is agile and safe. The opportunity to add ballast for increased traction, completes the characteristics of this particular vehicle. (Product image with ballast accessory, not included in the basic version).

Specifications

• Pulling capacity on flat surfaces: 14000 Kg
• Loading capacity on flat surface: 1000 Kg
• Pulling speed: fast 4 Km/h – slow 2,5 Km/h
• Pushing speed: fast 3 Km/h – slow 1,5 Km/h
• Battery recharging time: approx. 8 hrs.
• AGM battery: 4 x 12V/115 Ah C20
• Electro motor: 24V/3000 watt AC S2 60 min.

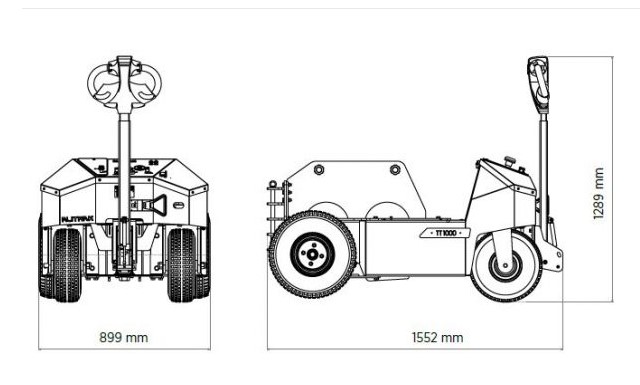

• Length: 1550 mm
• Width: 900 mm
• Height: 1290 mm
• Weight: 490 kg
• Dashboard display: Remaining battery charge – Equipment failures – Hour meter
• Battery charger: Integrated with charge status information – 25A high frequency
• Speed control: Butterfly type
• Parking brake: Electromagnetic with the possibility of release
• Oil bath differential
