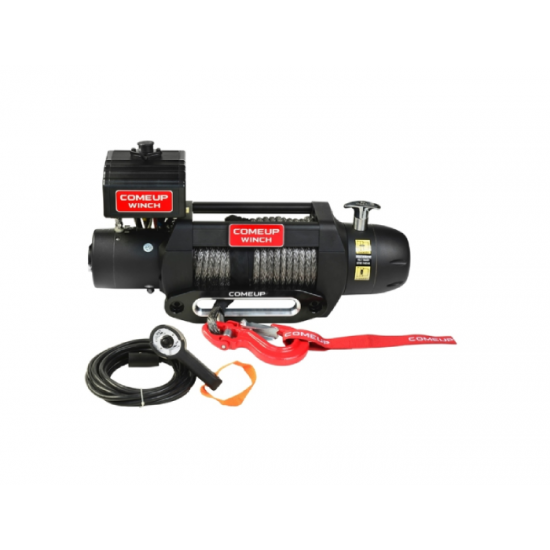

COME UP Seal Gen2 9.5 | Waterproof Vehicle Winch with 30 m wire rope for 4310 kg operation 12 V

Related Products - Accessories

COME UP Seal Slim 9.5 rs Trail Edition | Electric Severe Duty Winch | 4300 kg

COMEUP Slim 9.5rs Trail Edition4.3 Tonne Severe Duty Winch The Trail Edition features the innovative BossHook M and a specialized winch fuse kit for ..

COME UP Seal Slim 12.5 s | Electric Severe Duty Winch | 5600 kg

COME UP Seal Slim 12.5 s | Electric Severe Duty Winch | 5600 kg

Delivery 25-30 wo.days

Come Up Slim 12.5s 5.6 Ton Severe Duty Winch 12V DC severe duty winch rated at 12,500 lb (5.6 tons) pulling capacity, designed to exceed ex..

Seal Gen2 9.5s

12V DC severe duty winch rated at 9,500 lb pulling meets or exceeds your expectations.
Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
16 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to reposition in 22.5 degree increments.
Water-proof remote control with thermometric LED indicator w/5 m cord
A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2004/108/EC.

Specification/Part Numbers

Part number: PN 295990
Rated line pull: 4,309 kg / 9,500 lb single line
Motor: 3,730 w / 5.0 hp 12V series wound
Gear ratio : 3-stage planetary 159:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum
Drum size: 63.5 x 227x 273 mm (2.5” x 8.9” x 10.7″)
Control: Waterproof remote with thermometric indicator LED w/ 5 m (17′) cord
Rope type: Synthetic rope
Rope size: 10 mm x 30.5 m (3/8” x 100’)
Mounting bolts pattern: 254 x 114 mm (10” x 4.5”)
Mounting : Foot forward or foot down mounting workable
Finish : Matte black powder-coated
Winch weight (including rope) : 28.5 kg / 62.5 lb
Gross weight : 40 kg / 88 lb
Box dimension, (L x D x H) : 682 x 209 x 430 mm (26.9″ x 8.2″ x 16.9″)

Tags:COME UP Seal Gen2 9.5,Waterproof Vehicle Winch,4310 kg,30 m wire rope,12 V
