- Stock: Delivery 25-30 wo.days
- Model: 5552

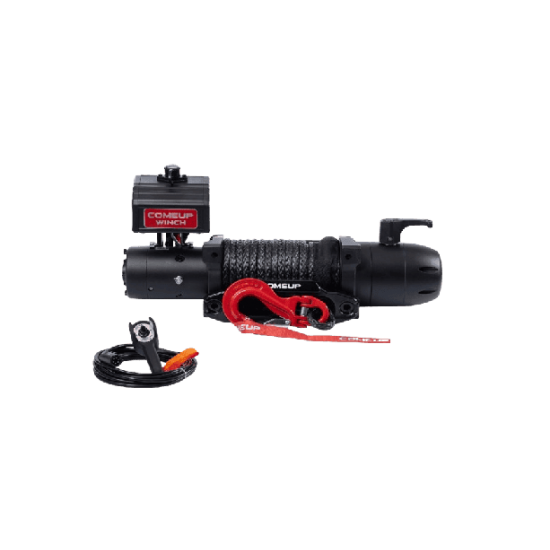

Come Up Slim 12.5s
5.6 Ton Severe Duty Winch
12V DC severe duty winch rated at 12,500 lb (5.6 tons) pulling capacity, designed to exceed expectations.
Heavy-duty series wound motor with thermal switch protects against overheating.

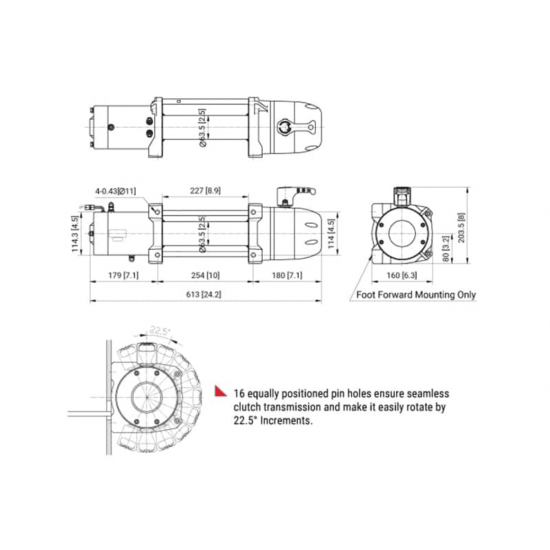

16 evenly spaced pin holes with an ergonomic T-handle allow repositioning in 22.5° increments.
Waterproof remote control with thermometric LED indicator and 5 m cord.
12-strand synthetic rope, coated for abrasion resistance and zero water absorption.
Tough die-cast aluminum housing withstands twice the winch’s rated load.
Patented mechanical cone brake (U.S., Germany, U.K., France, etc.) located outside the drum improves heat dissipation and makes it ideal for synthetic rope use.
Compliant with SAE J706, CE Machinery Directive 2006/42/EC, and CE Electromagnetic Compatibility Directive 2014/30/EU.
Standard Accessories:
Hawse fairlead
Remote control with 5 m (17’) cord
Detachable control box
Synthetic rope with sling hook
1.8 m (6’) 2-gauge battery lead
Handsaver strap
Optional Accessories:
Winch accessory kit
Part Number: PN 295037 (12V)
Rated Line Pull: 5,670 kg / 12,500 lb (single line)
Line Speed (1st layer):
7.7 m/min (25.3 fpm) at 60 A, 12V no load
0.9 m/min (3.0 fpm) at 380 A, 12V full load
Motor: 3,730 W / 5.0 hp, 12V series wound
Gear Ratio: 3-stage planetary 225:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch Construction: Aluminum die-cast housing with steel drum
Drum Size: 63.5 mm x 227 mm (2.5” x 8.9”L)
Control: Waterproof remote with thermometric LED indicator, 5 m (17’) cord
Rope Type: Synthetic rope
Rope Size: 11 mm x 21 m (7/16” x 69’)
Mounting Bolt Pattern: 254 mm x 114 mm (10” x 4.5”)
Mounting: Foot forward mounting only
Finish: Matte black powder-coated
Remark: Only foot forward mounting meets SAE J706
