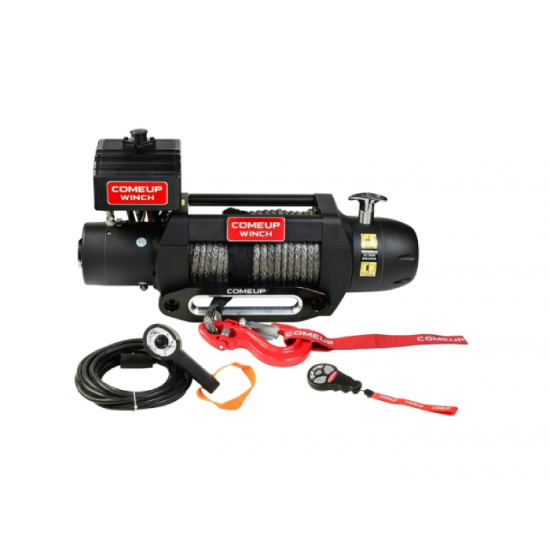

Seal Gen2 9.5rs
- 12V DC severe duty winch rated at 9,500 lb pulling meets or exceeds your expectations.
- Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
- 16 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to reposition in 22.5 degree increments.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
- Both built-in digital two ways wireless remote control and wired water-proof remote control.
- A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
- Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load
- Part number: PN 295850
- Rated line pull: 4,309 kg / 9,500 lb single line
- Motor: 3,730 w / 5.0 hp 12V series wound
- Gear ratio: 3-stage planetary 159:1
- Clutch (freespooling): Rotating ring gear
- Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
- Winch construction: Aluminum die cast housings with steel drum
- Drum size: 63.5 x 227 x 273 mm (2.5” x 8.9” x 10.7″)
- Control: Both built-in digital signal two ways wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17′) cord
- Rope type: Synthetic rope
- Rope size: 10 mm x 30.5 m (3/8” x 100’)

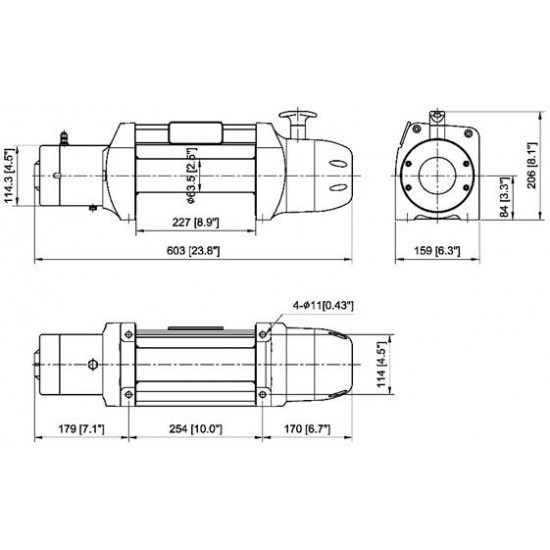

- Mounting bolts pattern: 254 x 114 mm (10” x 4.5”)

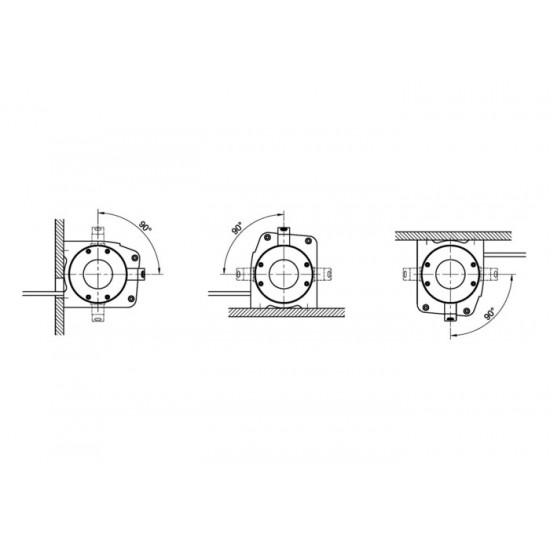

- Mounting : Foot forward or foot down mounting workable
- Finish : Matte black powder-coated
- Winch weight (including rope) : 28.5 kg / 62.8 lb
- Gross weight : 40 kg / 88 lb
- Box dimension, (L x D x H) : 682 x 209 x 430 mm (26.9″ x 8.2″ x 16.9″)
