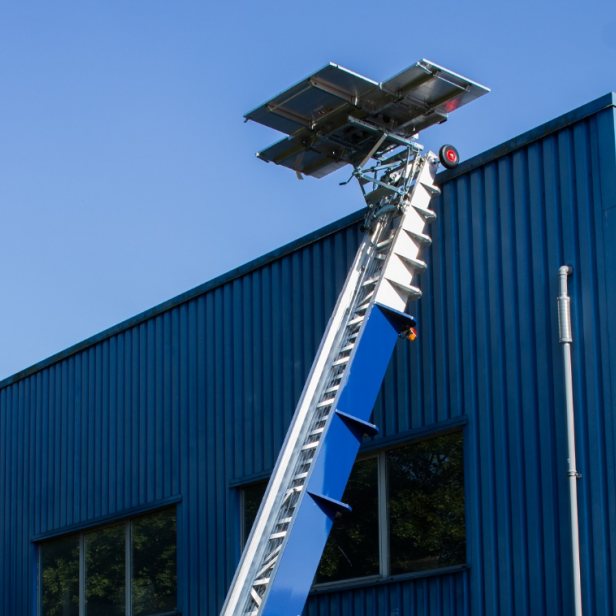

BOCKER Furniture Lift Arriva Arriva 300-400kg LADDER HOIST
- Stock: Delivery up to 30 days
- Model: 1303
0,00€
0,00€
(With Tax)
Strong and reliable
- The Arriva is the classic among the product range of BÖCKER furniture lifts.
- The models equally combine progress and experience.
- The contemporary edition of the Arriva is the result of continuous and consistent improvement in the field of furniture-lift technology.
- A rail package made of solid aluminium profiles and an extremely robust chassis result in an already legendary durability of the Arriva series.
- The Arriva is one of the most powerful furniture lift thanks to its maximum payload of 300 kg (version Standard) or 400kg (version Maxi) respectively.
- Powered by strong Honda engines, loads can be lifted with carriages speeds of up to 60 m/min.
- Maximum extendible lengths vary from 26 and 37 metres depending on the model.
Furniture lift Arriva: Convenient and versatile
- Maximum convenience is the third big strength of the Arriva.
- The furniture lifts impress particularly by their extremely low loading height.
- As a result, convenient and gentle loading of the furniture platform becomes self-evident.
- The optional manoeuvring drive of the Arriva additionally ensures convenient and exact positioning on-site.
Different furniture platforms are available for the Arriva series as well. The models have a standard platform with plug-in lateral walls. Extendible and rotating platforms are available as optional feature. Furthermore a gas-spring supported adjusting spindle is available which can be infinitely adjusted between 17 and 87 degrees.
| Model | HD 26 / 1-6 LH | HD 30 / 1-7 LH | HD 30 / 2-8 LH | HD 34 / 1-8 LH | HD 37 / 2-8 LH |
| Payload Standard/ Maxi | 300 kg/400 kg | 300 kg/400 kg | 300 kg/400 kg | 300 kg/400 kg | 300 kg/400 kg |
| Avrage speed of carriage | 45 m/min | 45 m/min | 45 m/min | 45 m/min | 45 m/min |
| Vehicle length | 7,150 mm | 7,200 mm | 7,200 mm | 7,250 mm | 8,550 mm |
| Vehicle width | 1,650 mm* | 1,650 mm* | 1,760mm* | 1,760 mm* | 1,760 mm* |
| Length of the rail package | 5,360 mm | 5,415 mm | 5,415 mm | 5,570 mm | 5,570 mm |
| Extendible from - to | 5.4 - 25.8 m | 5.4 - 29.8 m | 5.4 - 29.8 m | 5.5 - 33.1 m | 6.8 - 36.5 m |
| Gross vehicle weight | 1,800 kg* | 1,800 kg* | 2,240 kg* | 2,240 kg* | 2,240 kg* |
*2,300 kg with manoeuvring drive and wheels 215/75 R 16 C (Width 1,850 mm)
All rights reserved for changes.
