full Electric pallet truck WITH PASSENGER PLATFORM E-20PL-AC

More than 40 years
of experience
of experience
- Stock: Delivery up to 30 days
- Model: 1421
7,550.00€
9,362.00€
(With Tax)

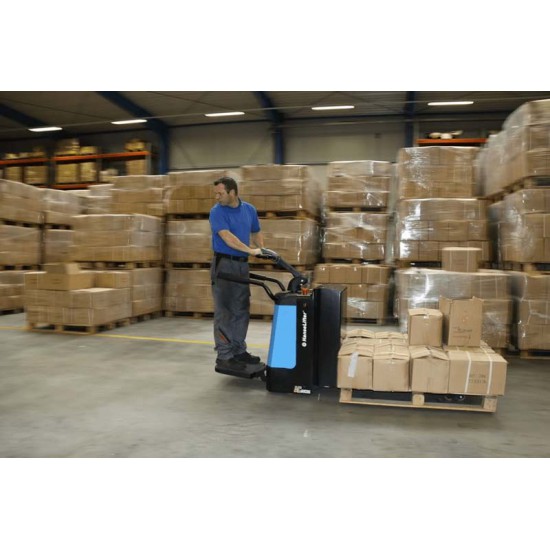

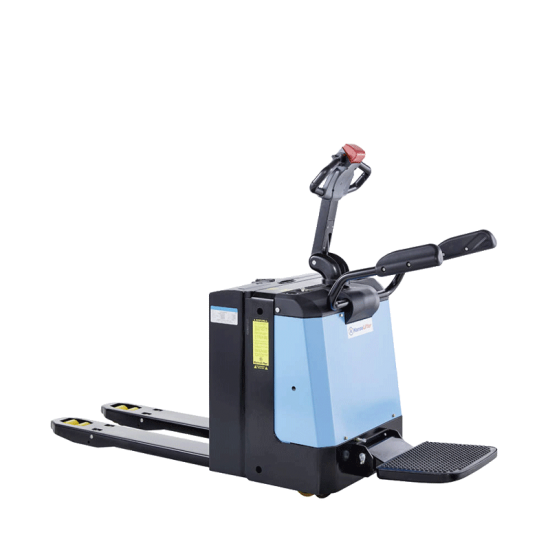

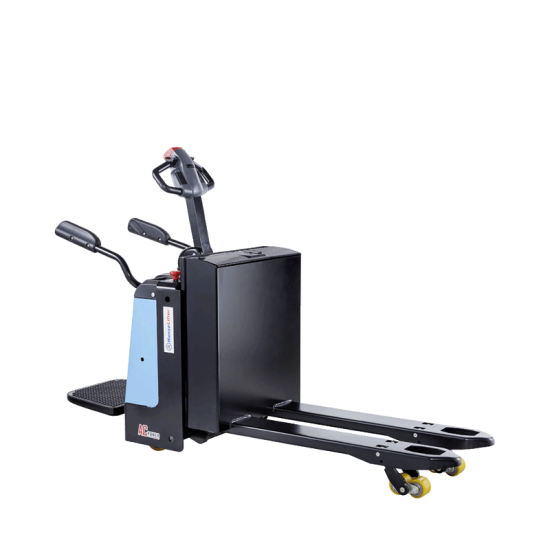

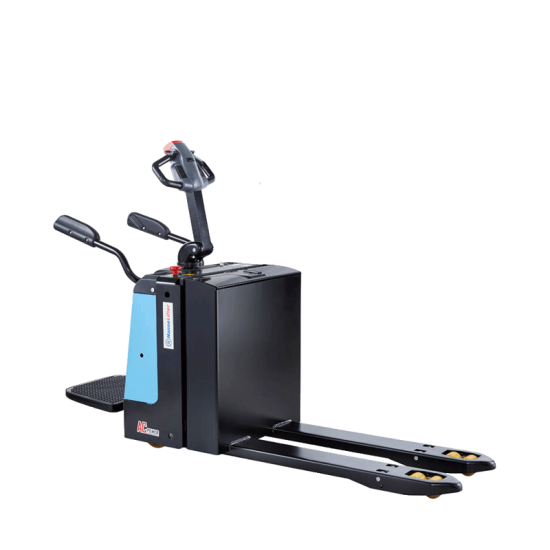

Electric pallet truck E-20PL-AC - with a practical passenger platform
- The electric pallet truck E-20PL-AC from HanseLifter is equipped with a practical platform. Users can move pallets up to 2,000 kg in the warehouse faster and more conveniently. This so-called rider device is therefore ideally suited in larger warehouses or businesses that are a little more spacious. With a maximum travel speed of 7.8 or 8.5 km / h without a load, the electric pallet truck is also ideal for unloading from trucks or containers. But the electric pallet truck also cuts a fine figure when it comes to daily order picking. The driving speed can optionally be increased up to 12 km / h. Which increases the handling performance even more.
Security and equipment

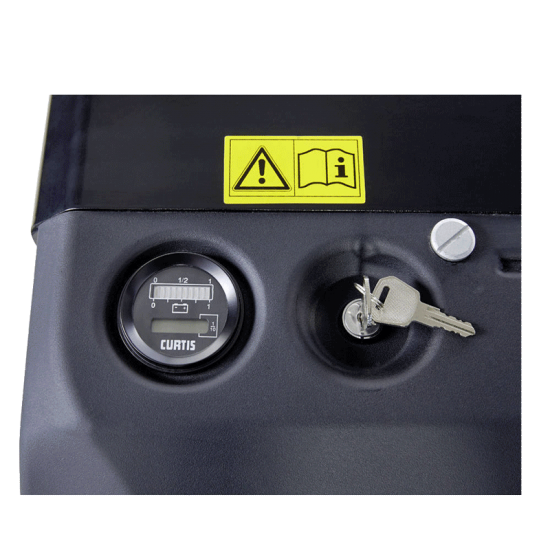

- Fold-out side bars ensure safety when driving with the electric pallet truck. These prevent you from falling sideways in curves and also give you a good grip. The maintenance-free three-phase drive motor gives the electric lift truck optimum power. In addition, the motor enables about 15% better efficiency than similar models. A high-quality battery enables the device to be used for a long time and the integrated operating hours counter shows exactly how many hours the device has been in use. A crawl gear with the tiller in an almost vertical position increases safety in the warehouse.
Rolling the electric pallet truck
- The rollers of the E-20PL-AC electric pallet truck are made of polyurethane. These PU rollers, as they are also called, are low-noise and wear-resistant. The good traction of the rollers give a good driving experience. In addition, high-quality polyurethane rollers ensure easy handling on even surfaces.
Special constructions
- Lifting and industrial trucks in special dimensions are available from us at any time on request. Just like you get the electric pallet truck E-20-AC from HanseLifter with a 360Ah battery, special fork lengths or individual travel parameters such as 12km / h. Our department for special constructions is at your side with advice and action. Use our free callback service or call us directly.
Info: The E-20PL-AC electric pallet truck is an industrial truck with a driver's cab. Training is required to control these devices. In this case, a simple device instruction is not sufficient. You can find out more on the subject in the implementation instructions for BGV D27.
| model | Electric pallet truck E-20PL-AC |
|---|---|
| characteristics | Pedestrian or passenger device |
| Load capacity (kg) | 2,000 |
| Stroke range (mm) | 85-200 |
| Load distance (mm) | 600 |
| Total length (mm) | 1,880 |
| Total width (mm) | 730 |
| Fork length (mm) | 1,150 |
| Fork outer distance (mm) | 540 |
| Turning radius (mm) | 1,651 |
| Aisle width (mm) | 2,069 |
| Gradeability (with / without load,%) | 8/16 |
| Travel speed (with / without load, km / h) | 7.5 / 8.5 |
| Drive motor (AC, kW) | 1.5 |
| Lifting motor (AC, kW) | 2.2 |
| Battery power (V / Ah) | 24/210 |
| charger | external |
| Dead weight (kg) | 645 |
| item number | GE0022956 |
