electric Pedestrian stacker E-DH10-MG-E 1000kg 2700mm up to 3300mm stroke

Pedestrian stacker E-DH10-MG-E with duplex mast

The HanseLifter E-DH10-MG-E  pedestrian stacker is mainly used for unloading, moving and order picking. But it also impresses with its driving characteristics when loading and unloading trucks and containers. The electric pedestrian stacker E-DH10-MG-E is equipped with a practical duplex mast and can be used in halls and warehouses with low ceilings. Its extra long drawbar enables easy and safe control. The rear of the E-DH10-MG-E pedestrian stacker is kept extra short and thus also supports good handling.

Increase goods turnover

The E-DH10-MG-E pedestrian stacker can significantly increase the turnover of goods and the efficiency in the warehouse, similar to forklifts. With a load capacity of 1,000 kg, it drives and stacks almost every standard pallet in the warehouse. The maximum lifting height can be selected between 2700, 3000 and 3300 mm. The clearance height, like the lifting height, differs depending on the model. It varies between 1900 and 2200 mm.

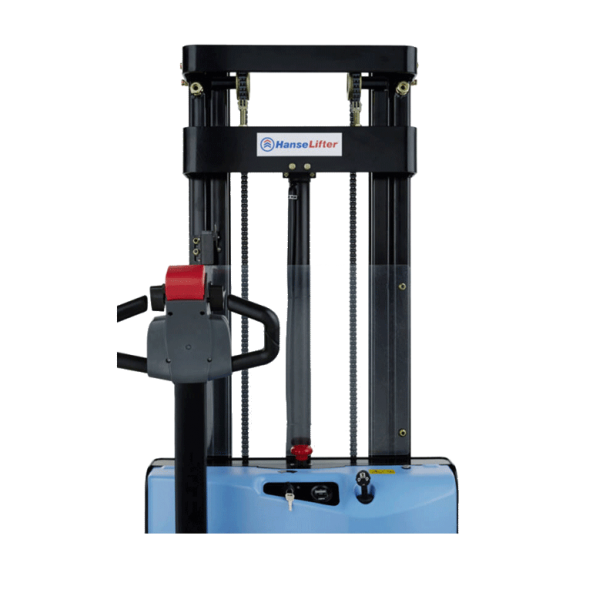

Duplex mast

The duplex mast has 2 mast profiles, but 3 lifting cylinders. 2 lifting cylinders are arranged behind the profiles and, in addition, in the middle at half the height of the free lifting cylinder. The view is slightly restricted by the free lift cylinder. The free lift means that the fork carriage can be extended to 100 mm without changing the overall height or extending the mast.

Ergonomic and efficient with the HanseLifter

The HanseLifter brand has been represented in the industry for 15 years. The long experience in the lifting and conveyor technology sector and the close customer contact make the pedestrian stacker a user-friendly lifting and conveyor device with high-quality equipment features. The HanseLifter pedestrian stacker E-DH10-MG-E has a tiller head that has been reduced to the essentials. With its help, the pedestrian stacker can be easily controlled intuitively and without training. No unnecessary buttons that only confuse you while you are working. So you can fully concentrate on driving, steering, lifting or lowering. When stopping on inclines, slopes or ramps, a brake automatically engages and prevents the pedestrian truck from rolling away unintentionally. The speed of the E-DH10-MG-E is automatically reduced from a lifting height of 500 mm. The low-maintenance gel battery ensures that the pedestrian stacker can convince in the warehouse for a long time and actively support you in your work. In addition, the device switches to standby mode when not in use and saves battery power.
