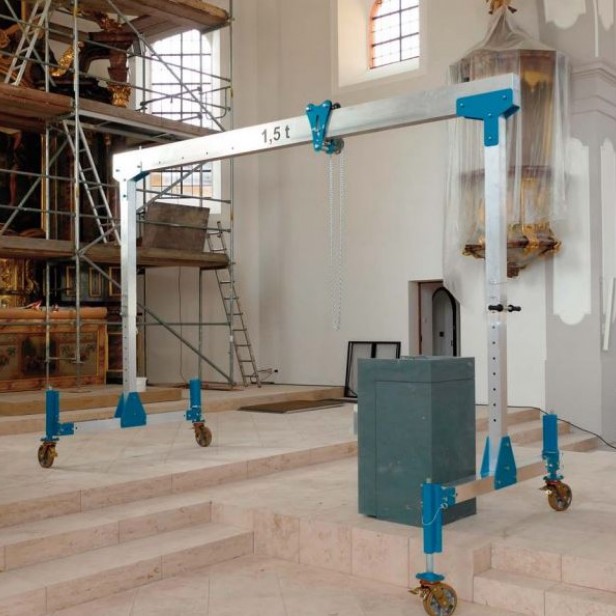

Mobile gantry crane "Alu-Ruck-Zuck" - 1500 kg load capacity, 3700 mm clear width

Make the laborious lifting of heavy loads easier with the mobile aluminum gantry crane "Alu Ruck Zuck" from WIMAG. The particularly light gantry crane made of aluminum can be easily set up and operated by one person. A load capacity of 1500 kg makes the device universally applicable for all crane-capable loads. The span and total height can be adjusted by locking the socket pins. The scope of delivery also includes a ball-bearing trolley with a brake. The mobile model is equipped with 4 Vulkollan wheels with steering and wheel stops.

The essentials in brief:

• Beams and supports made of light aluminum profile
• Can be set up in a few minutes
• Span adjustable from 2500 mm to 3700 mm
• Height adjustable with socket pins - from 1943 - 2744 mm
• Ball-bearing trolley with brake included in the scope of delivery
• 4 Vulkollan wheels with steering and wheel stop
• The device can be provided with a power supply for the equipment by means of an electric hoist
• It is possible to attach support spindles
