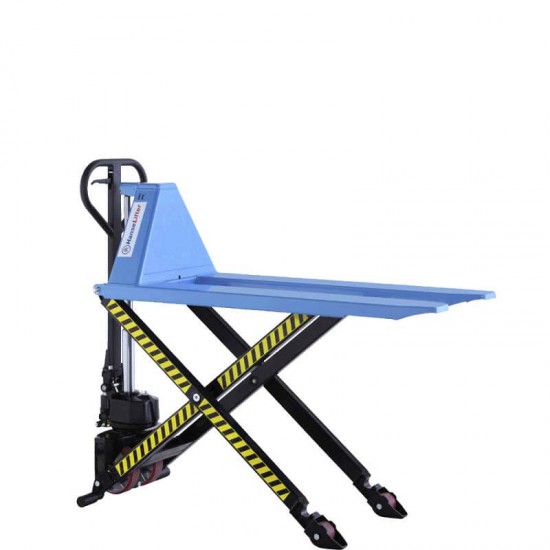

SCISSOR PALLET TRUCK JF-PU 1000KG,800MM STROKE

JF-PU scissor lift truck - the entry-level model

The hydraulic scissor lift truck JF-PU can move pallets and from a lifting height of 200 mm can be used as a workbench because the support bolts are extended. Approx. 20 strokes are necessary up to the maximum lifting height of 800 mm.

Ergonomics at the workplace

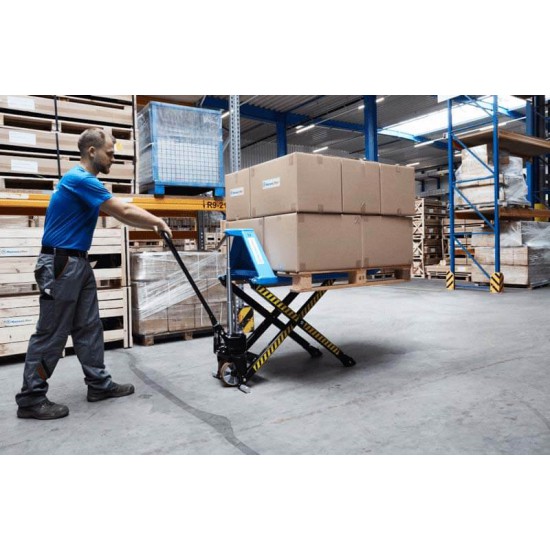

By lifting pallets, you adjust the work area to a height that is comfortable for you, for example when you are storing or retrieving material or equipping machines. All models are equipped with a load capacity of 1.0 t and a lifting height of up to 800 mm. All models can be fully maneuvered up to a lifting height of 200 mm, which means that they can also be used as pallet trucks.

Quick lift function

The JF-PU scissor lift truck has a quick lift function, which enables pallets up to 250 kg to be lifted to a maneuvering height of 200 mm with just a few strokes. This is made possible by the three-part reciprocating piston. All devices are continuously lowered using the hand lever on the tiller handle.

• Feature: With quick lift function for pallets up to 250 kg
• Load capacity: 1,000 kg
• Max. Lifting height: 800 mm
• Load center distance: 500 mm
• Fork outer distance: 520 mm
• Maneuverable up to a lifting height of 200 mm

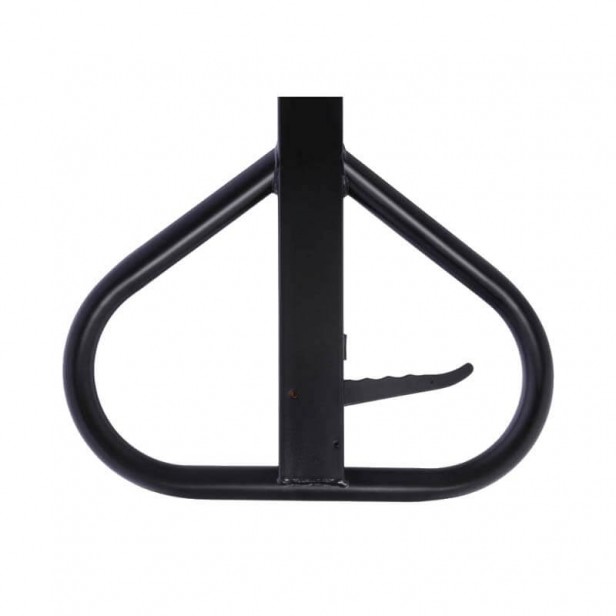

• Rubberized drawbar handle
• Hydraulic pump with 3-stage telescopic ram
• Dosed release on the hand lever
• OPTIONAL: With food grade H1 oil
