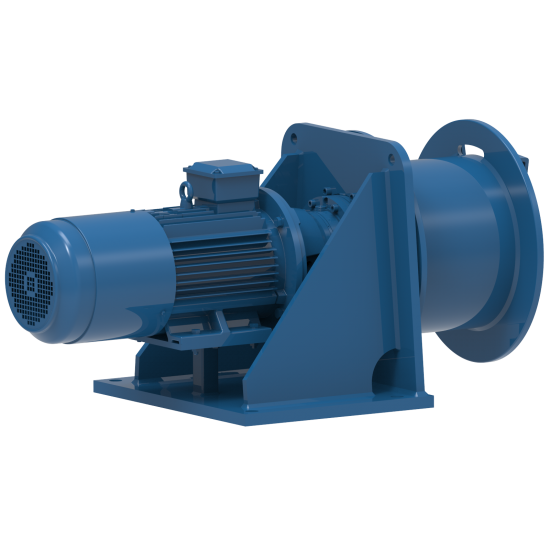

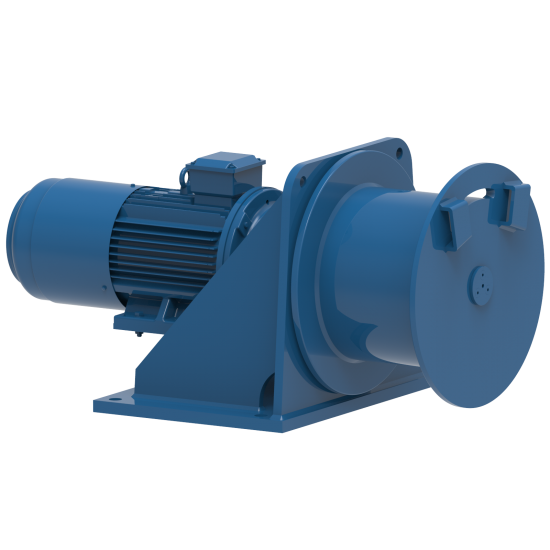

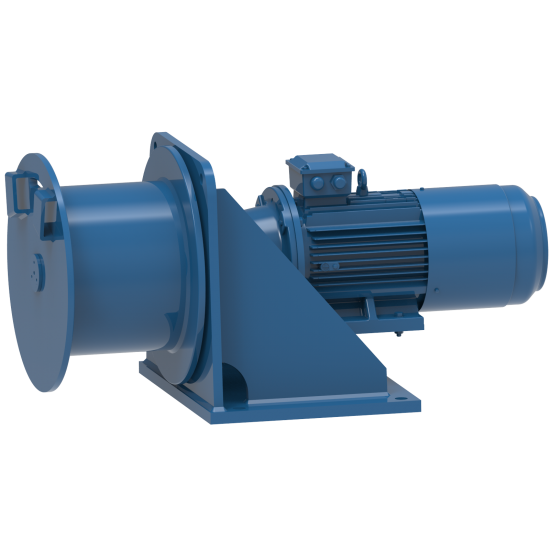

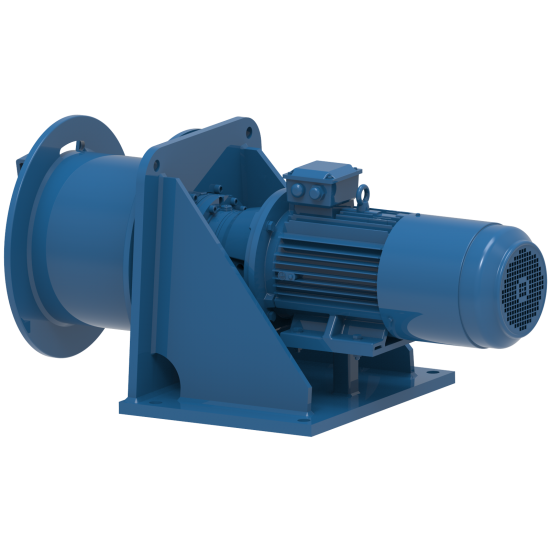

WIRE ROPE WINCH FD 307 E FOR PULLING 5250KG 67M 380V

Specially designed for applications where space is at a premium, these compact and lightweight lifting winches are ideally suited for installation on cranes, davits and derricks. The single drum support enables the rope to leave the drum at any angle. The heavy duty planetary drive is partly located within and protected by the drum core. The large drum diameters ensure a healthy drum to cable diameter ratio and a suffi cient working length despite the short drums.

Standard features

• Heavy duty planetary gearbox
• FD E; IP 54 400 V AC / 3-phases / 50 Hz braked motor
• FD H; orbit or radial piston type hydraulic motor complete with brake valve
• FD LV; van type air motor complete with hand control valve and mufflers
• FD GP gear type air motor complete with hand control valve and mufflers
• Steel drum with cable fixing point at flange - Single drum support
• Double layer 2-component conservation according ISO 12944 category C2-Low, colour RAL 5010
• FEM / ISO class: T4-L3-M5

Note: For pneumatic winches is the speed on the first layer the average speed. The speed at the top layer is at unloaded conditions.

Mechanical options

• IP 56 TENV cast iron motor for marine applications
• Explosion-proof motors
• Protective steel motor cover
• Drum pressure roller
• Alternative speeds
• Alternative supply voltages
• Drum guards
• Marine / offshore coating systems
• Tubular offshore frame construction with lifting eyes

Control options

• Control box IP 55 with push-buttons and emergency stop built acc. to NEN60204-32
• Control box IP 66 with low voltage IP 65 remote control built acc. toNEN60204-32
• Load limiter (required by CE for applications exceeding 1000 kg WLL)
• Frequency inverter for variable speed control
• Wireless radio remote control systems
• Limit switches
• Slack wire switches
• Radio / Infra red remote control
