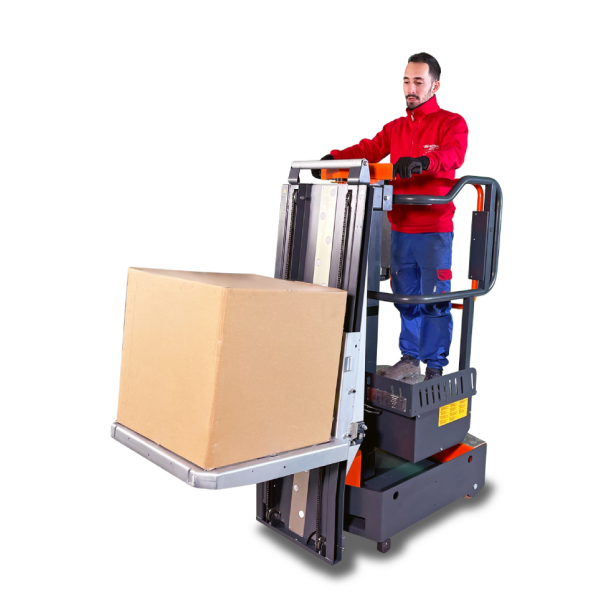

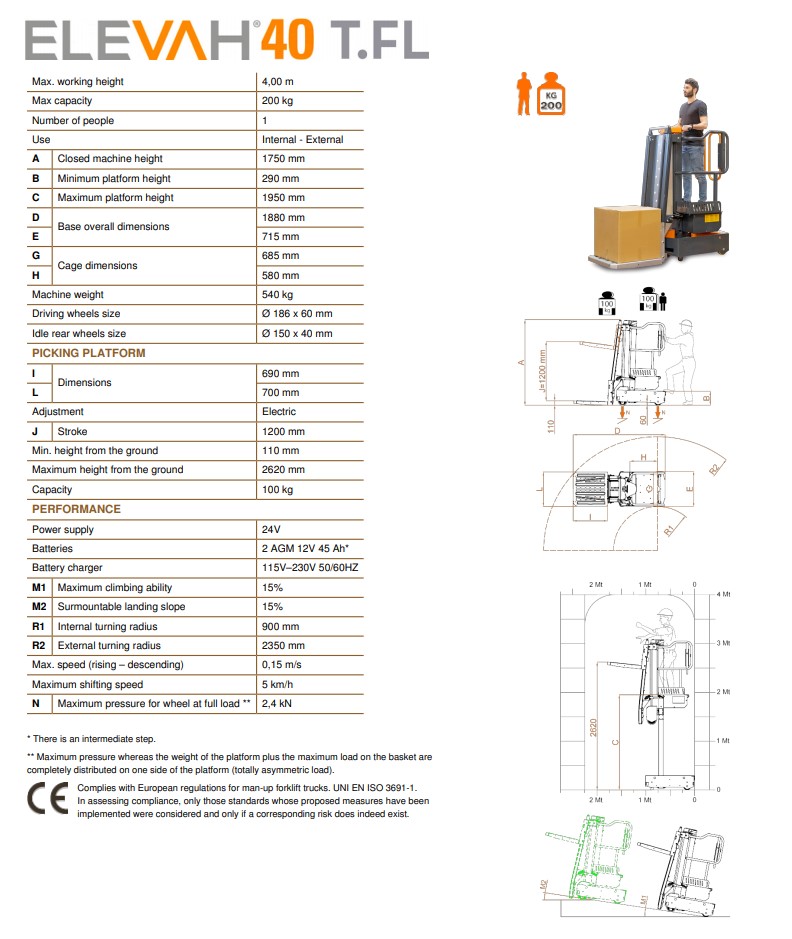

ORDER PICKER ELEVAH 40 T.FL - 4Μ WORKING HEIGHT

Elevah 40 TFL is the new stock picker specifically designed to facilitate the storage of goods: it allows to optimize time and minimize physical strain, working in total safety up to 4 meters.

• The picking plate allows to load up to 100 kg directly from the ground. The tool is provided with sliding rollers to facilitate loading operations and it is electrically adjustable in height.
• Ultra compact, comfortable and easy to maneuver thanks to the convenient handlebar that allows to move from one area to another without getting out of the basket.
• Discover all the equipment and accessories to customize your Elevah 40 and fit it to your needs.

• Max. working height 4,00 m
• Max capacity 200 kg
• Number of people 1
• Use Internal - External

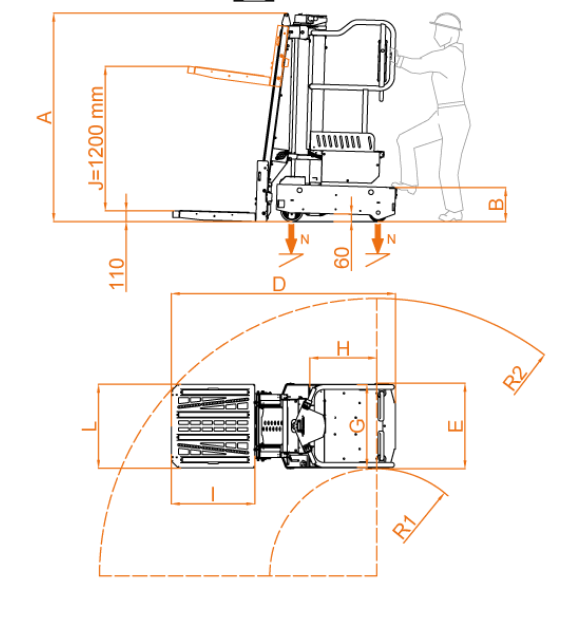

A Closed machine height 1750 mm

B Minimum platform height 290 mm

C Maximum platform height 1950 mm

D Base overall dimensions 1880 mm

E 715 mm

G Cage dimensions 685 mm

H 580 mm

• Machine weight 540 kg
• Driving wheels size Ø 186 x 60 mm
• Idle rear wheels size Ø 150 x 40 mm

PICKING PLATFORM

I Dimensions 690 mm

L 700 mm

Adjustment Electric

J Stroke 1200 mm

Min. height from the ground 110 mm

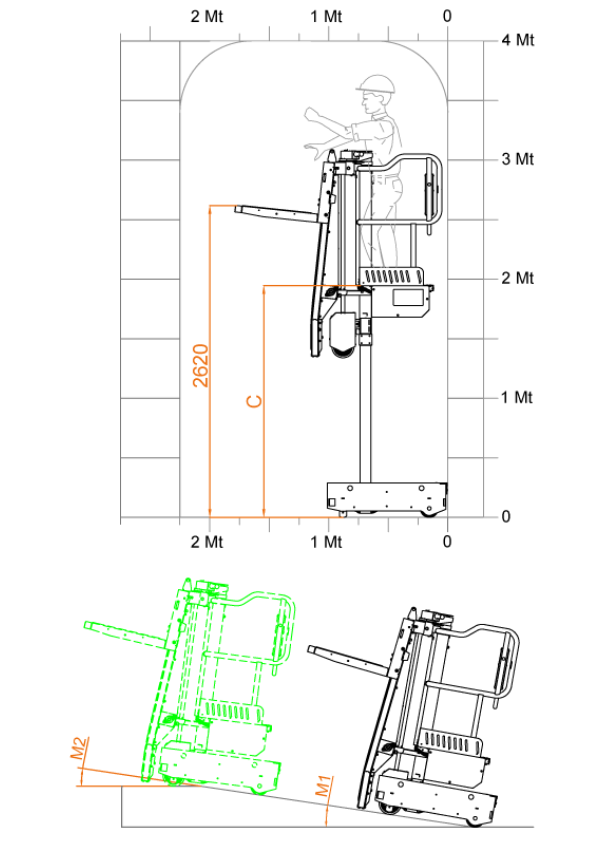

Maximum height from the ground 2620 mm

Capacity 100 kg

PERFORMANCE

• Power supply 24V
• Batteries 2 AGM 12V 45 Ah*
• Battery charger 115V–230V 50/60HZ
• M1 Maximum climbing ability 15%
• M2 Surmountable landing slope 15%
• R1 Internal turning radius 900 mm
• R2 External turning radius 2350 mm
• Max. speed (rising – descending) 0,15 m/s
• Maximum shifting speed 5 km/h
• N Maximum pressure for wheel at full load ** 2,4 kN

* There is an intermediate step.

** Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

Complies with European regulations for man-up forklift trucks. UNI EN ISO 3691-1.

In assessing compliance, only those standards whose proposed measures have been implemented were considered and only if a corresponding risk does indeed exist.

Safety equipment

Standard

• Maximum capacity control via relief valve
• Light movement indicator
• Automatic electronic parking brake
• Horn
• 2-sash access doors to basket with closure control
• Joystick with safety catch against accidental activation
• IP65 protected drive wheels
• Manually activated emergency descent of the basket to base
• Two-hand operation

Optional

• REDLIGHTS RED LIGHTS - Pair of red lateral signaling lights
• E40RADAR1 Frontal Anti-collision Radar System for the Chassis
• E40RADAR1B Rear Anti-collision Radar System for the Chassis
• E40RADAR3 Anti-collision Radar System to the Top (Driver’s Head protection)
• E40 AN-PR Crushing protection under the basket
• 51 KEY Machine start-up with code (only for 24 Volt version)
• Ergonomics and functionality equipment

Optional

SP.TFL2 2 extractable side protections and one oversize frontal protection on the picking platform
