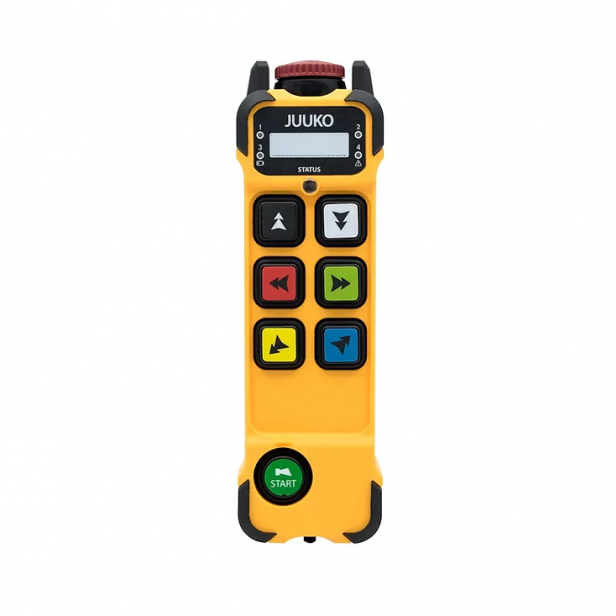

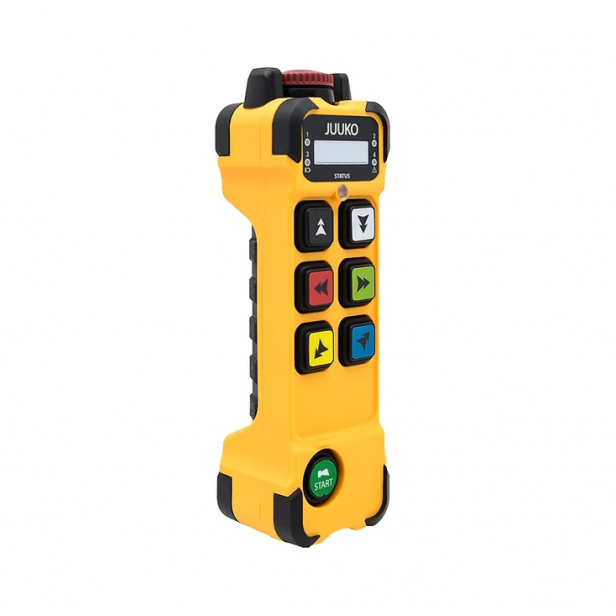

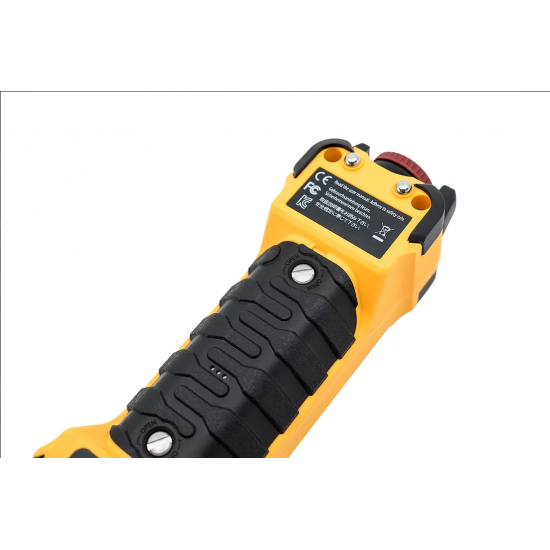

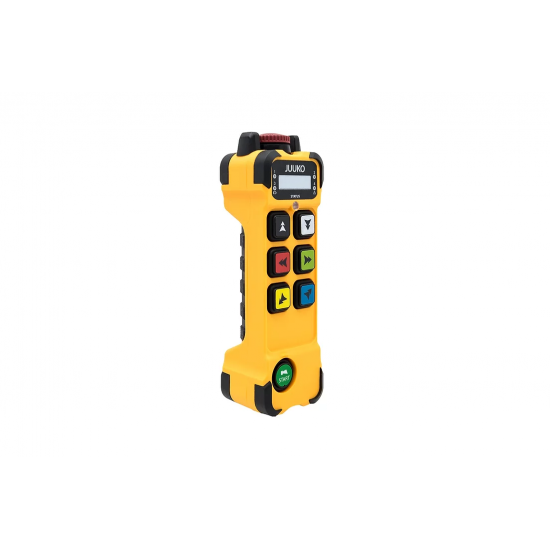

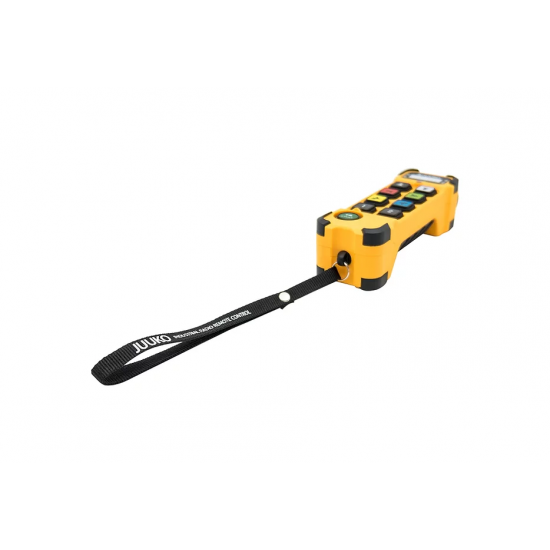

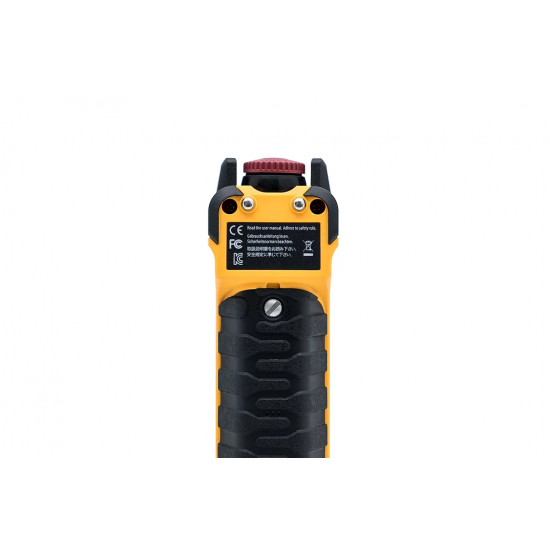

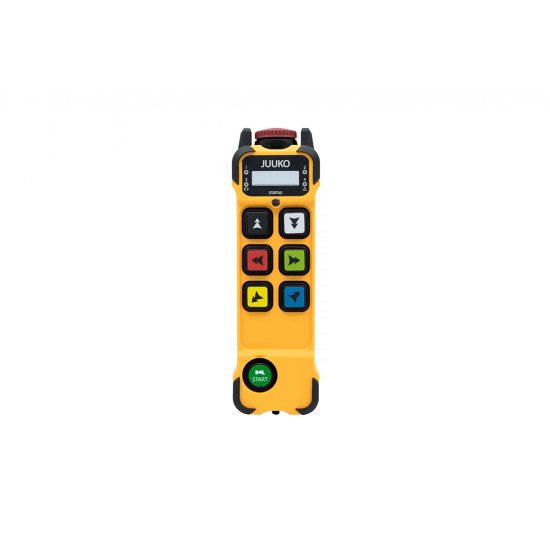

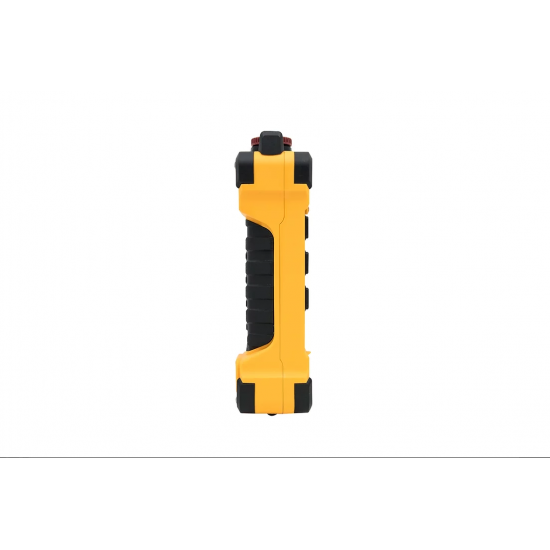

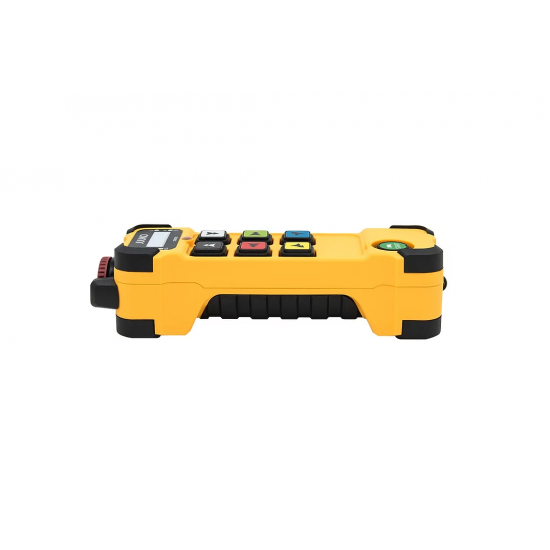

WIRELESS REMOTE CONTROL JUUKO 6 COMMANDS - 2 SPEED / 90-460V

K series

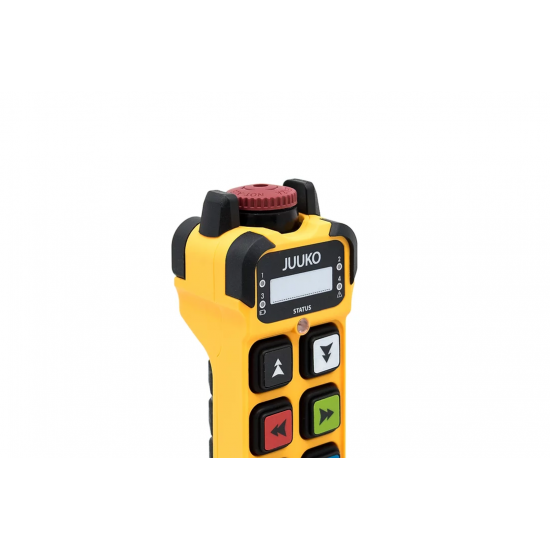

• Independent LEDs, indicate the status of the battery
• Activation of the transmitter is protected by an electronic key-code and an auto shut-off option which is programmable
• The system automatically change to another frequency in the presence of radio interference
• Eco power management system. Save on batteries

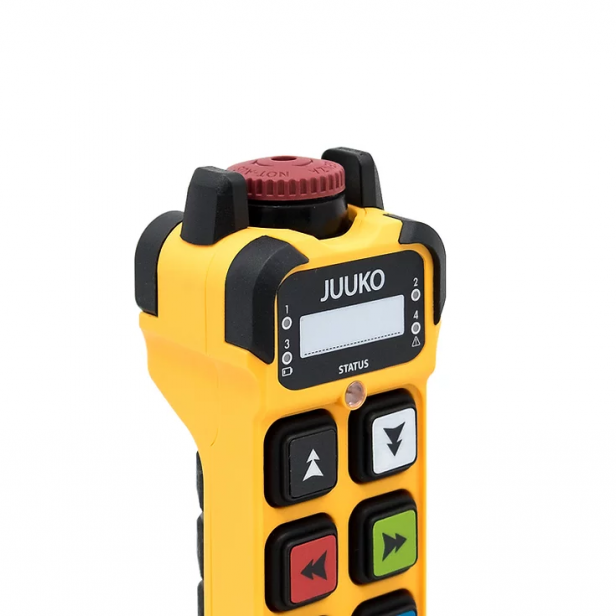

• It can receive and display via 4 LEDs signals coming from the receiver (relay action feedback)

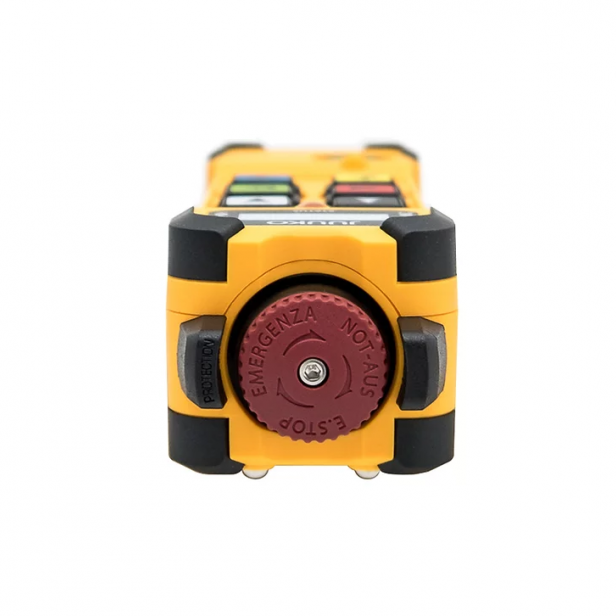

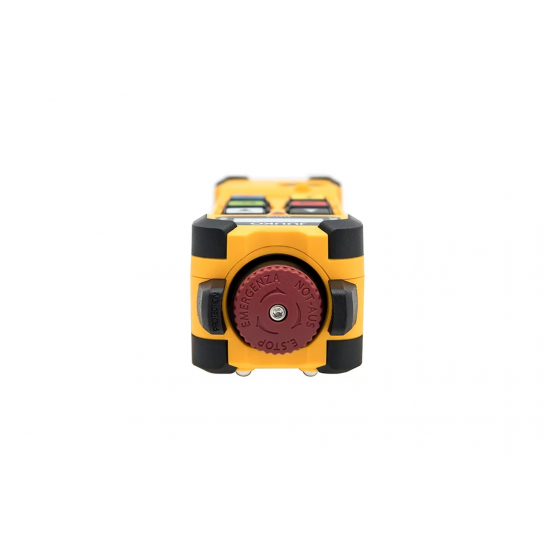

• Mushrooms type EMO button
• Internal BootLoader, up firmware to the date by using computer
• Wireless pairing procedure using the keyboard pushbuttons
• ​QI wireless charging pad is optional in New 2016 K plus series

Technical Data

• Pushbutton

2, 4, 6, 8,10, 12 single / double pressure motion buttons

• Weight

approx. 305g (2-8 buttons)

approx. 390g (10, 12 buttons)

• Size

193×57×51mm(2-8 buttons)

230×57×51mm(10, 12 buttons)

290x57x51mm(16 buttons)

• Frequency band

315 / 418 / 429 / 433 / 447 / 470 / 915 MHz / 2.4 GHz

• Channel space

12.5 kHz

• Number of available on/off command

max. 24 + Start and EMO

• Hamming distance

≥ 15

• Radio communication

bi-directional

• Frequency handling

Automatic and dynamic switching between 2 channels

• Power supply

LR6(AA)1.5V / NiMH(AA)1.2V x2

• Stop command response time

~ 50 ms

• Command response time

~ 50 ms

• Protection degree

IP65

• Operating and storage temperature

(-25°C)~(+55°C) / (-40°C)~(+85°C)

• Housing material

PA6 (GF30%)
