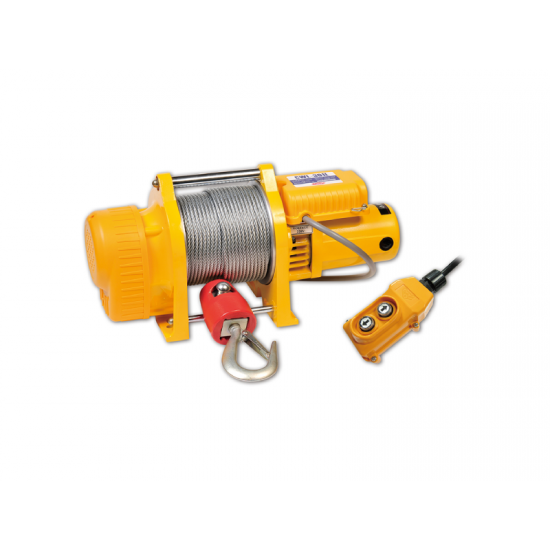

COME UP CWL-301L | Single-phase high-speed wire rope winch 300 kg with 58 m rope, operating 220‑240 V

CWL-301L

• Lightweight and compact design for easy installation
• Double mechanical ratchets brake provide instant and safe braking
• Operates on standard household power supply
• Wire rope comes with a safety-latch weight hook
• Enclosed drum flange prevents ropes becoming trapped between drum and support castings
• Emergency stop function switch is available upon request

• Lifting capacity: 300 kg at wire rope top layer
• Lifting speed: 16 – 25 m/min
• Motor rating IP44:
• 1 phase, 220-240V: 2.3 kw x 11 A series wound
• Gear ratio: 110:1
• Maximum lifting height: 58 m
• Braking methods:for motor: Electromagnetic - for gear: mechanical ratchet
• Wire rope: 6 mm x 60 m
• Drum length: 147 mm
• Drum dia.: 95 mm
• Drum flange dia.: 190 mm

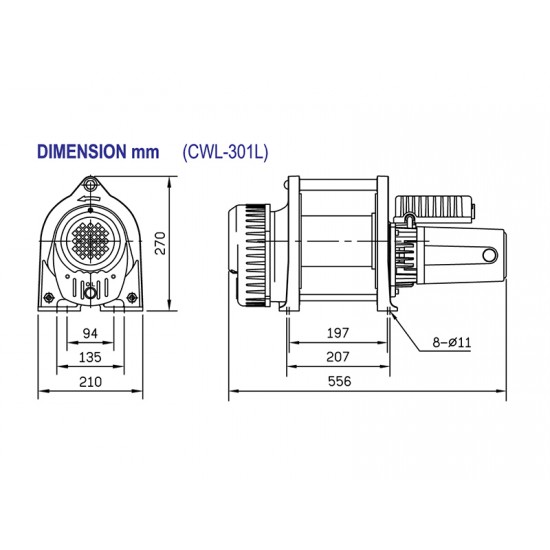

• Mounting bolt pattern: 197 mm x 94 mm ; 207 mm x 135 mm

* Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Lifting Capacity, Lifting Speed and Rope Capacity:

Note: Above performance ratings are based on 50Hz supply.

 Pulling Load Capacity for Various Inclines in kg

Note:

1. All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
2. Use a snatch block for double line operation, to increase line pull by approximately 85%
3. The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

Warning

• The winch is not intended to be used in any manner for the movement or lifting of personnel.
• The rated lifting capacity shown is based on the top rope layer on the drum
• The rope winding on the drum shall remain 5 wraps from the drum


Warranty

• Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.
