Messersi TC120E | Electric Mini tracked ride-on dumper ideal for challenging terrains with payload capacity up to 1200 kg

Full electric tracked dumper TC-120-e
TIME SAVING SAFETY ON THE SITE SUITABLE FOR ANY LOCATION AND SOIL (MUD,SLOPES,.SAND ETC...)

 Standard equipment

• Tracked undercarriage with fully battery chain drive.
• Two inverters, two electric motors (heavy duty designed to work also in the tougher conditions) and two planetary gears.
• Emergency button and negative brakes to ensure maximum operator safety
• Tilting rollers and patented layout of track to ensure a wide footprint, high stability and excellent driving comfort in all conditions.
• Hydraulic circuit exclusively for the skip lifting and shovel with electric motor pump controlled by dedicated inverter .
• BMS (Battery Management System) to control the status of the battery.
• CAN-BUS control unit for diagnostics and control of all movements of the, machine. Possibility of remote access to the machine data.
• The complete charge of the battery (Lithium-Iron-Phosphate type) is able to ensure a day shift work capacity (8 hours).
• Available remote control unit as option.
• Also available with Hi-Tip skip (and self-loading shovel) and 180° swivel dumping skip.

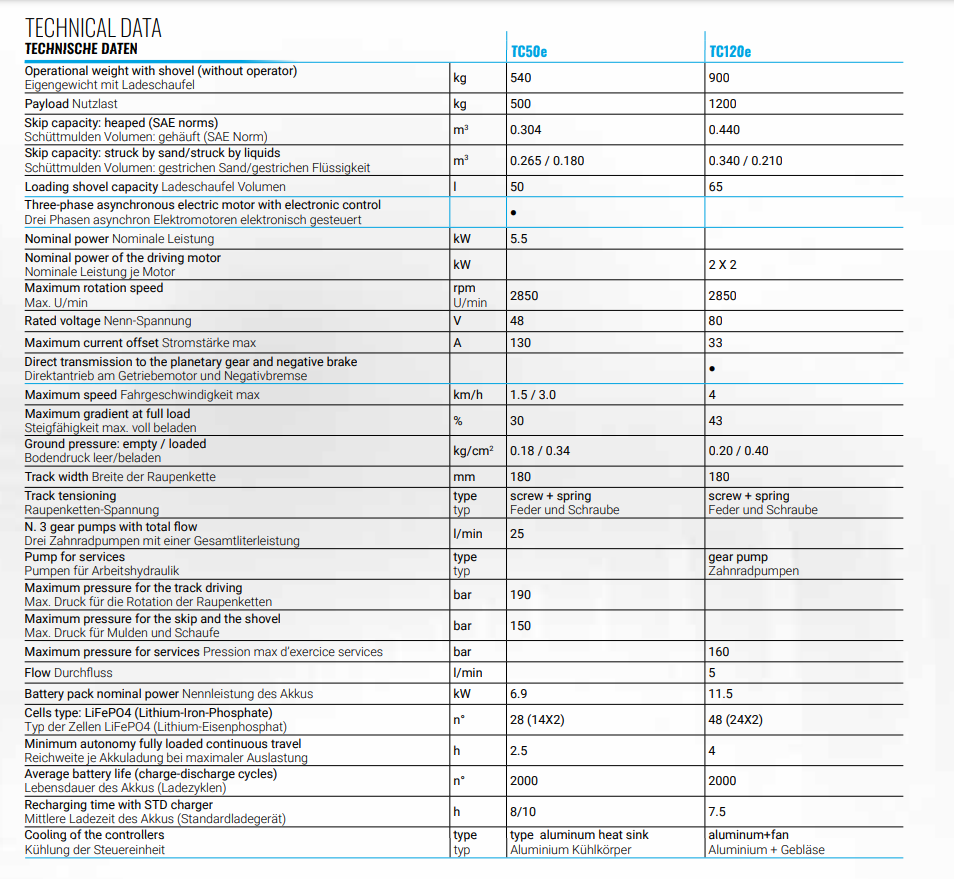

 Max payload

1200 kg

2650 lb

Engine power

2 x 2 kW

2 x 2.7 hp

Width

800 mm

31.5 in

Supply

Electric
