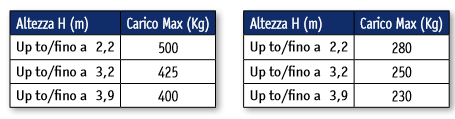

GOLIA BULL | Manual Glass Lifting System for professional applications, lifting capacity 500 kg up to 3.9 m

Golia Bul

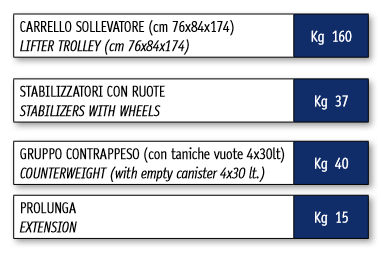

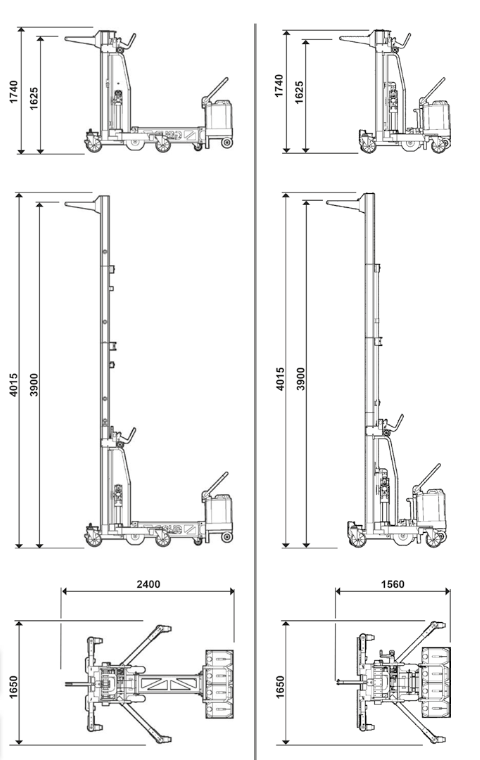

Golia Bull can lift sheets of glass and windows frames up to 500 kg. and 3.90 m. height but with a structure (cm 76x84x174) and weight so small and light that we can load and unload it (also on a small station wagon) without cranes but with 2 people only. In fact all appendages , that assure stability and sturdiness , have
been studied for being easily removed and not lie on the total weight of the machine when not in use. A special note is due to the patented lifting system that foresees the use of a battery drill granting an easy and light working but also an extraordinary cheapness .

EASY HANDLING

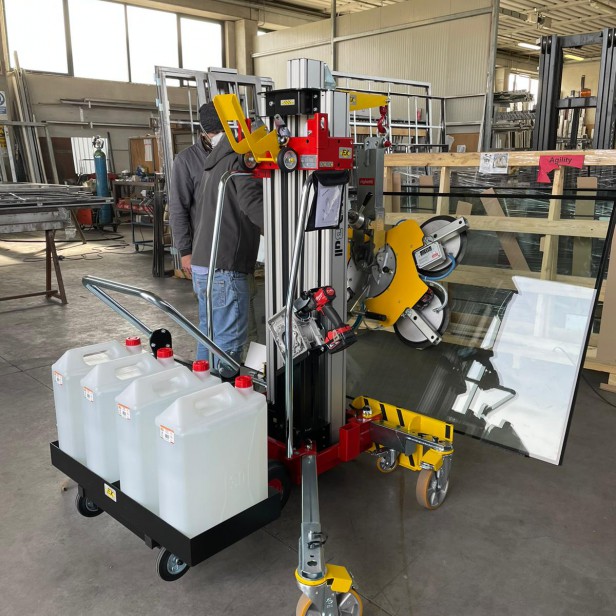

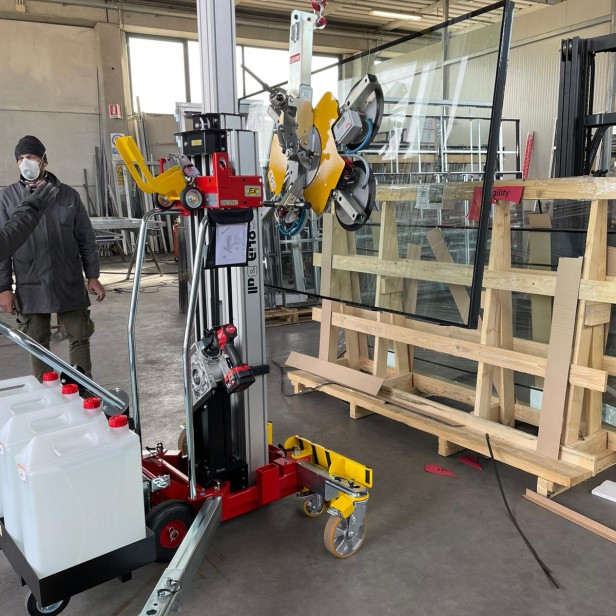

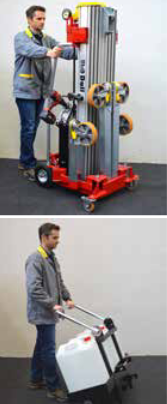

This pictures show how, thanks to small sizes and light weight, it’s very easy handling it and entering also narrow spaces. Becomes therefore necessary instrument for being used in shopping centers, residential building as for porches and attics, and in all the situations where is not possible cranes and forklift use. The large size wheels of stabilizers (that when not in use are housed in dedicated supports) are all pivoting and equipped with a system that makes easy the driving in all directions. Bright idea, in his simplicity, the use of canisters ( n.4 x 30 lt. ) as counterweight: you will fill them with water only at the construction sites and just in case

FORMULA 1 SOLUTION

Living in the most famous automotive district (specially for formula 1!) we toke the cue from this world for realizing an appendage that allows to lift easily the machine for installing the stabilizers and dedicated rubber protection in safety and without effort

THE BATTERY DRILL

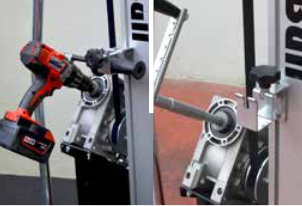

As told before the possibility to use an ordinary battery drill for lifting the loads make  “Bull” a unique machine. Thanks in fact to this patented system we could substantially reduce, compared with the more usual operation by 24V motors, the production costs granting, furthermore, a simple and without effort use. Another advantage of this system is certainly the reducing of weight of the whole machine flanking all others solutions studied for granting the best handling and transport of the machine. Then, for don’t cause you any trouble about the battery drill choice, we could supply you, as optional, a very powerful and dedicated model . If this is not enough Golia “ Bull” arrives complete with and handle for emergency use.

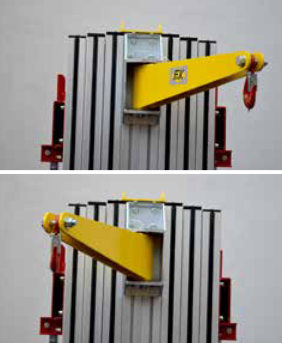

HE SWIVELING FORK

The suction cups fork support is equipped with a swiveling system that allows the moving (20 cm dx. – 20 cm sx.) of suction cups avoiding, when in use, the adjusting of the whole structure for correcting not precise approaching, granting , in this way, perfect and fast installations. This possibility, besides, becomes indispensable in case of sheets of glas  installation from outside and in presence of windows frame already mounted .

WE DON’T NEED CRANES OR/AND TRUCKS

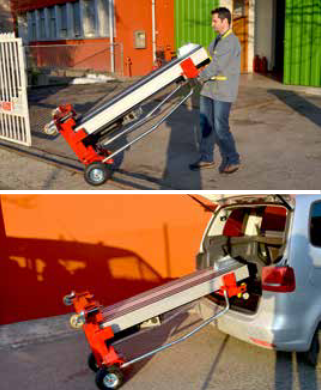

The intent to realize a light, not hulking and easy both to move and to transport machine, has perfectly been achieved: we can therefore access to narrow spaces, stairways, elevators and easily move on broken grounds but also load it, even on a station wagon, without any crane

AND FOR ASSURING THE BEST PERFORMANCE

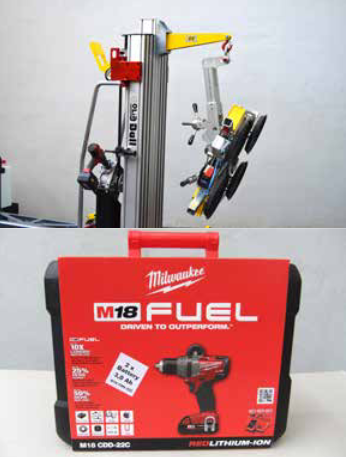

We have foreseen the supply, on request , of a suction cups group 24V, rotating and with guided tilting with 400 kg. payload that, thanks to his features and technical solutions meets in a perfect way our Golia “ Bull “: but, of course, if you already have a suction cups group with similar features you may use it! Always on request also the battery drill: we signed an agreement with Milwaukee for the supply of a 18V 4.0 Ah. drill that, for featuring, perfectly reply to our necessity and for whom we have studied (and included) a dedicated support with no-rotation safety clamp.
