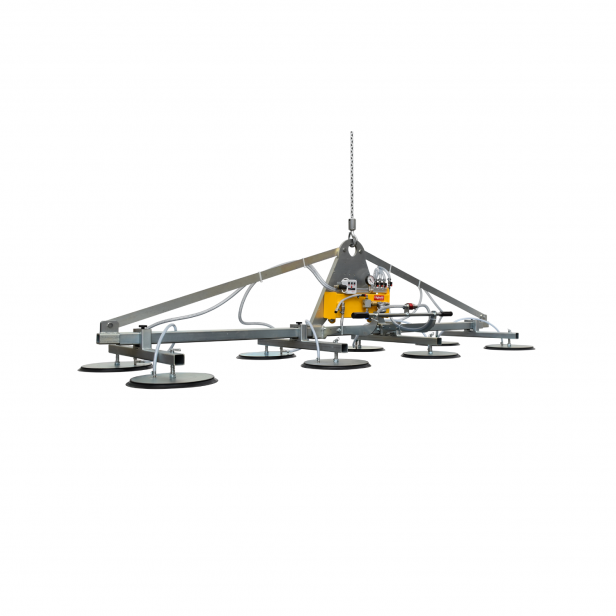

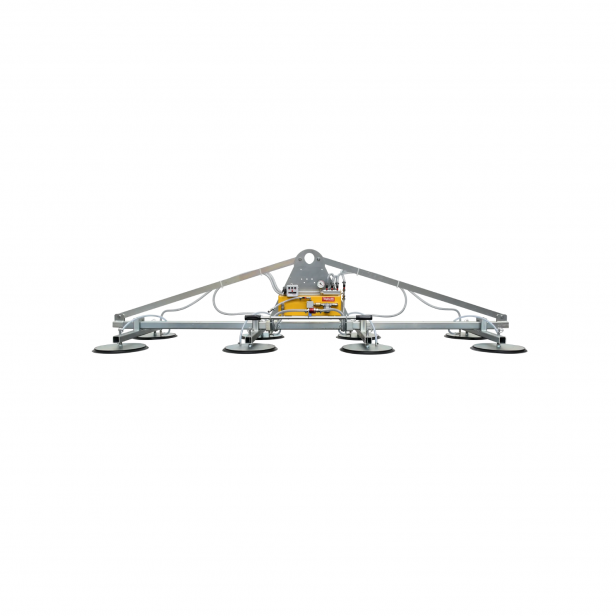

AIR VACUUM LIFTER for metal sheets RIGHETTI F8A 2400kg
- Stock:Delivery 25-30 wo.days
- Model:3892
Related Products - Accessories
Delivery 25-30 wo.days
The Vacuum Lifter for sheet metal FS6 EB 500 is an electric powered model. It is possible to choose between 400V three-phase or 220V single-phase. T..
Delivery 25-30 wo.days
The sheet metal vacuum lifter FS6B is battery powered by high capacity rechargeable batteries (battery charger is included). FS6B has a maximum ca..
-250x250w.png "ELECTRIC VACUUM LIFTER for metal sheets RIGHETTI FS8EB 600kg")
Delivery 25-30 wo.days
The Vacuum Lifter for sheet metal FS8 EB 600 is an electric powered model. It is possible to choose between 400V three-phase or 220V single-phase...
Delivery 25-30 wo.days
The Vacuum Lifter for metal sheet F6EB is a model with electric operating system, it’s possible to choose between 400V three-phase or 220V single-..
-250x250w.png "ELECTRIC VACUUM LIFTER for metal sheets RIGHETTI F6EB 1800KG")
Delivery 25-30 wo.days
The Vacuum Lifter for metal sheet F6EB is a model with electric operating system, it’s possible to choose between 400V three-phase or 220V single-..

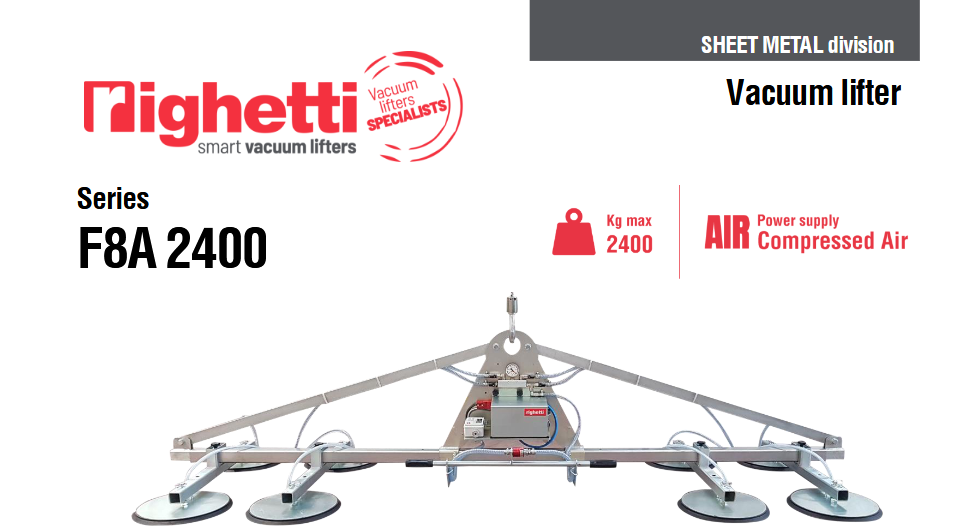

The vacuum lifter for metal sheet F8A-2400 is a model with compressed air operating system and requires connection to the pneumatic system.

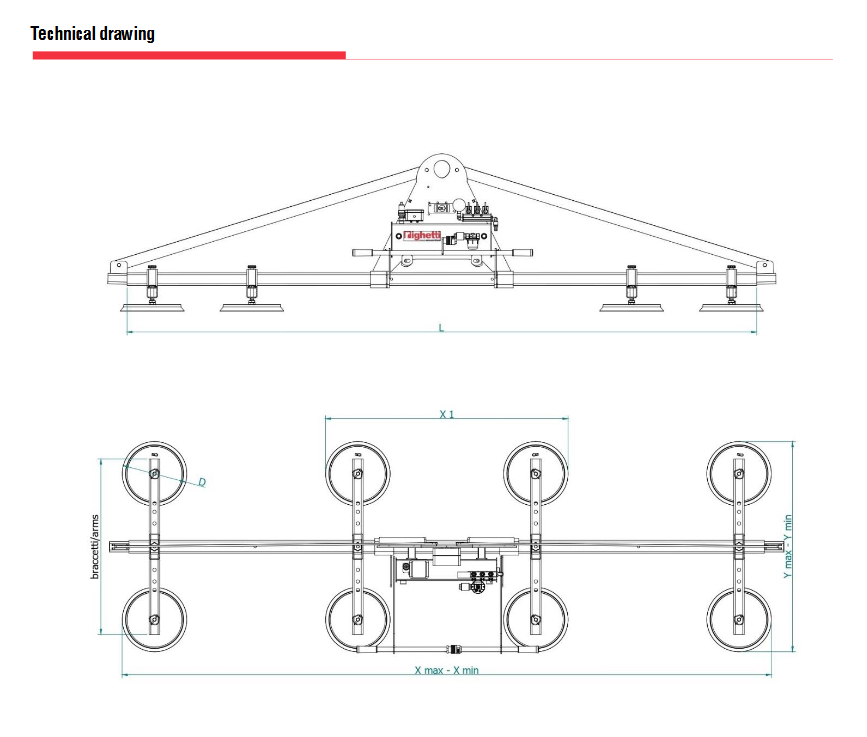

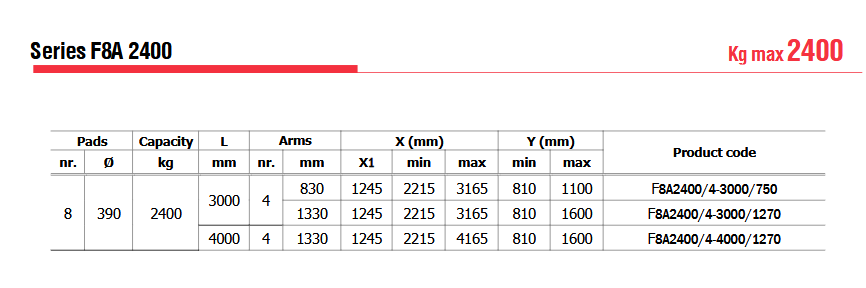

The model F8A-2400 has a maximum capacity of 2400 kg, is composed by a crossbar which can be produced in different lengths, on standard models of L3000 mm or L4000 mm and 8 suction plates d. 390 mm distributed on 4 arms.
The plates, equipped with springs, are specific for sheet metal made of special oil-resistant vulcanized rubber.
The adjustment of the position of the plates and arms, together with the possibility of using only the central plates, allows to adapt the lifter to the different formats of the metal sheets to be lifted.
The F8A2400 model has a steel reinforced supporting structure and a horizontal fixed frame
