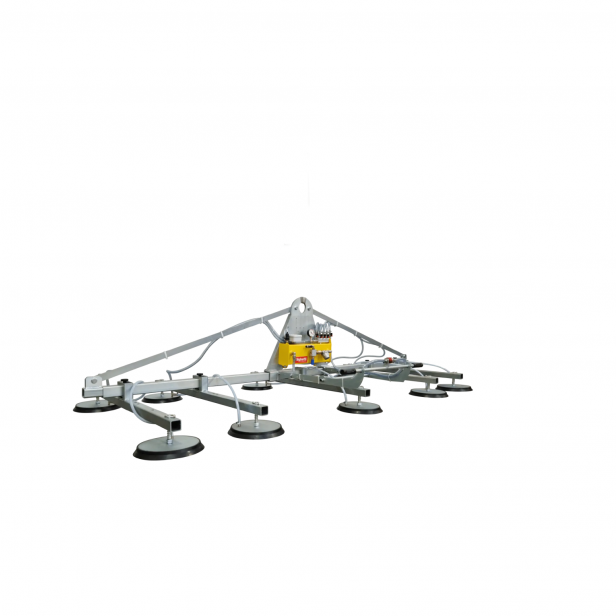

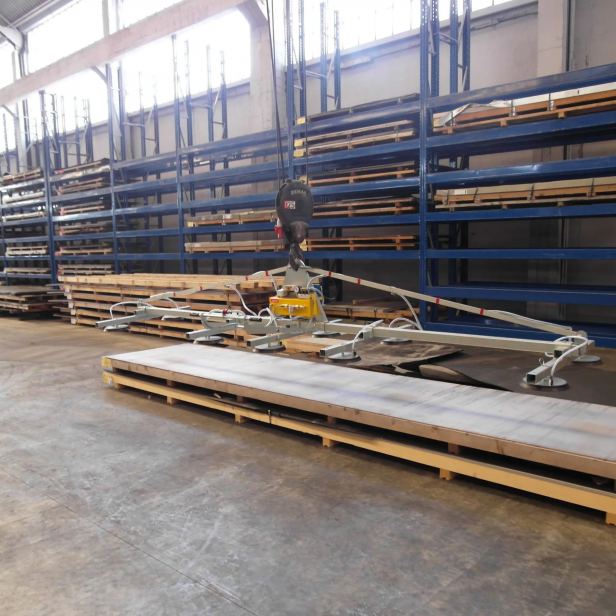

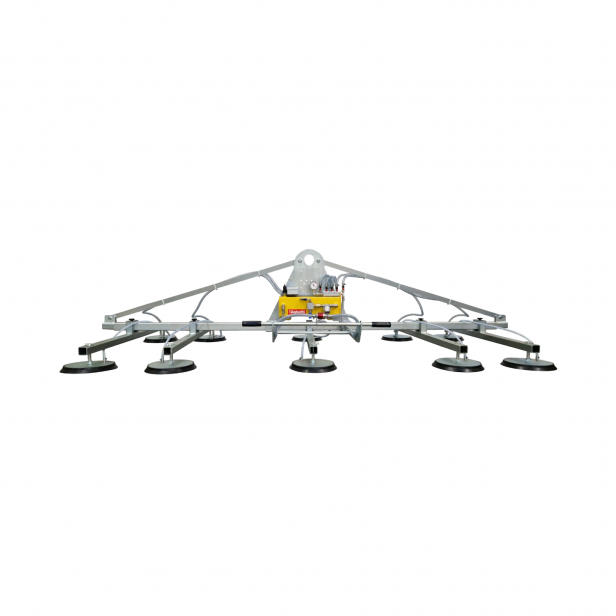

AIR VACUUM LIFTER for metal sheets RIGHETTI F10A 2000KG

The vacuum lifter for metal sheet F8A-2400 is a model with compressed air operating system and requires connection to the pneumatic system.

The model F8A-2400 has a maximum capacity of 2400 kg, is composed by a crossbar which can be produced in different lengths, on standard models of L3000 mm or L4000 mm and 8 suction plates d. 390 mm distributed on 4 arms.

The plates, equipped with springs, are specific for sheet metal made of special oil-resistant vulcanized rubber.

The adjustment of the position of the plates and arms, together with the possibility of using only the central plates, allows to adapt the lifter to the different formats of the metal sheets to be lifted.

The F8A2400 model has a steel reinforced supporting structure and a horizontal fixed frame
