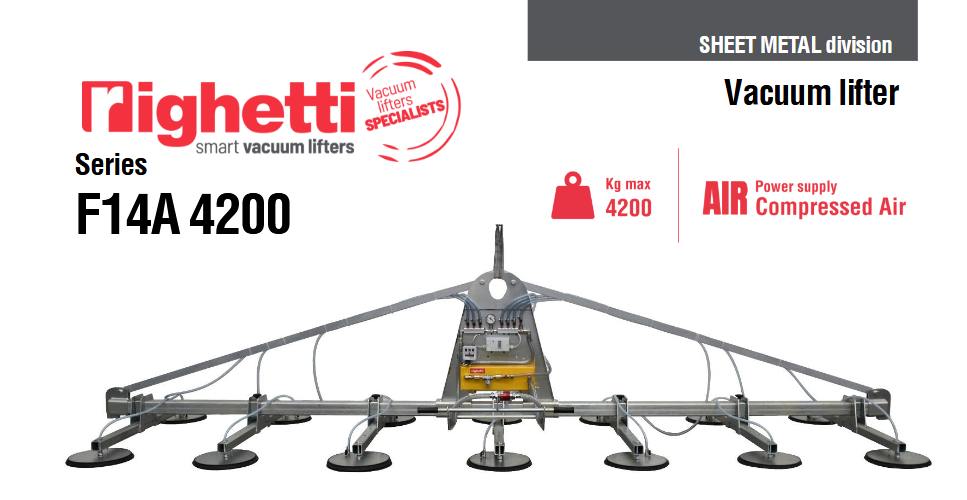

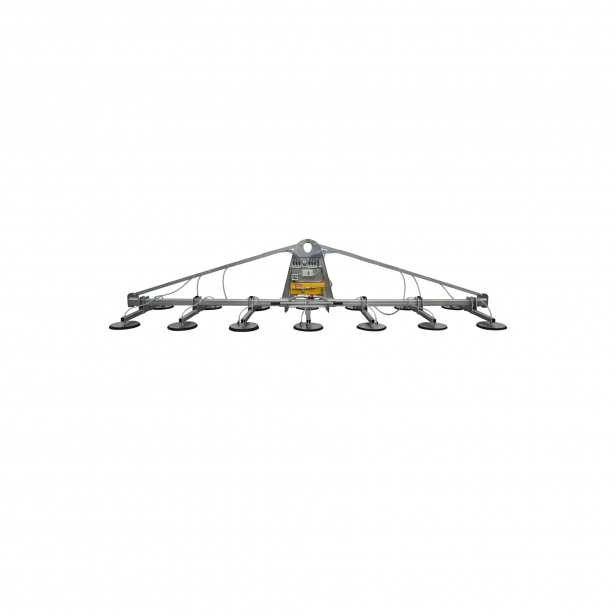

AIR VACUUM LIFTER for metal sheets RIGHETTI F14A 4200KG
- Stock: Delivery 25-30 wo.days
- Model: 3903
0,00€
0,00€
(With Tax)

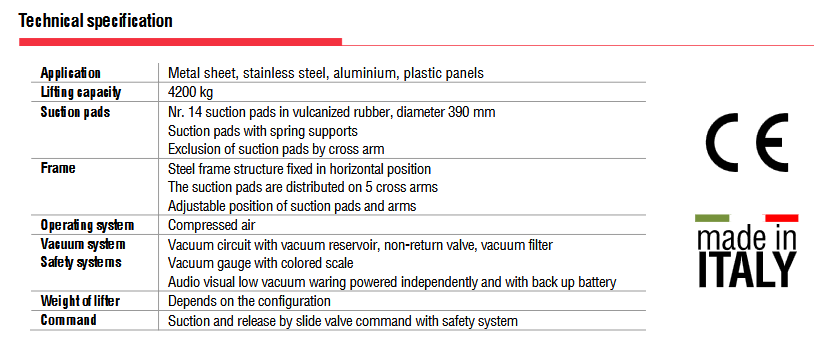

The vacuum lifter for metal sheet F14A-4200 is a model with compressed air operating system and requires connection to the pneumatic system.

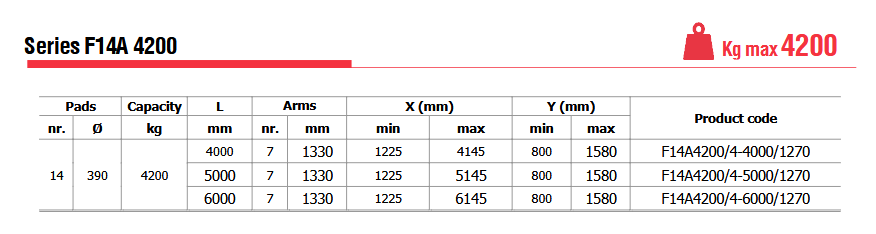

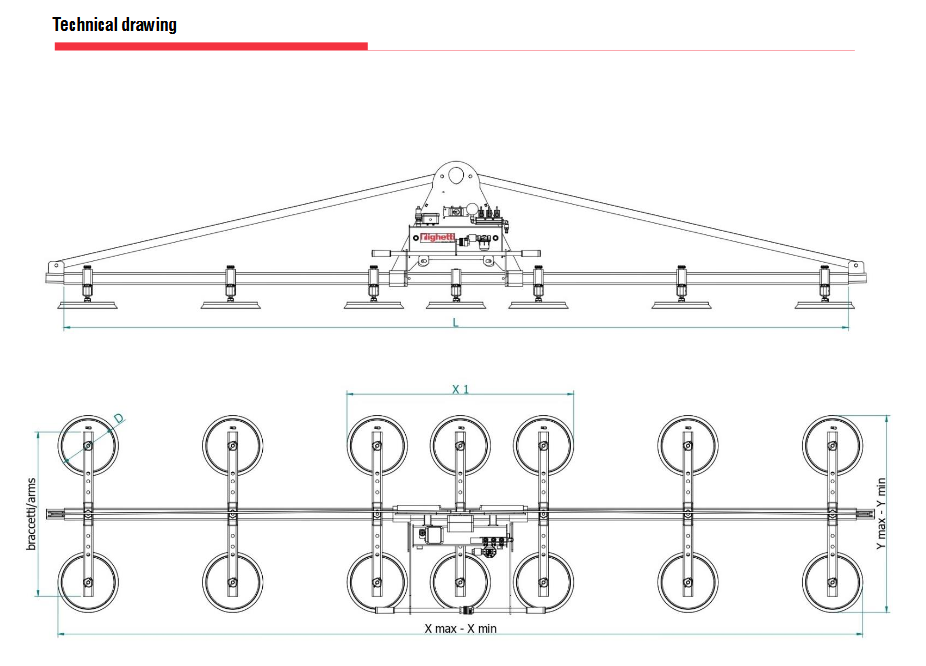

The model F14A-4200 has a maximum capacity of 4200 kg, it is composed by a crossbar which can be produced in different lengths and 14 suction pads d. 390 mm distributed on 7 arms.
The suction pads, equipped with springs, are specific for sheet metal made of special oil-resistant vulcanized rubber.
The adjustment of the position of the pads and arms, together with the possibility of using only the central plates, allows to adapt the lifter to the different formats of the metal sheets to be lifted.
The F14A4200 model has a steel reinforced supporting structure and a horizontal fixed frame.
