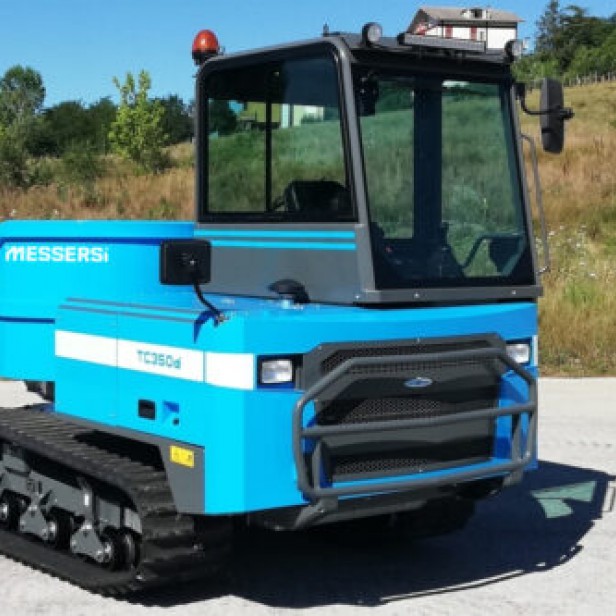

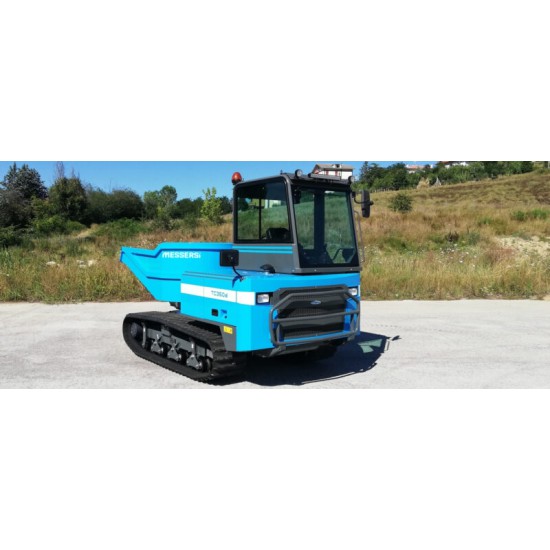

Messersi TC350D | Mini tracked dumper ideal for challenging terrains with payload capacity up to 3500 kg

Mini Crawler Dumper TC350D

Standard equipment

• Tracked dumper with hydrostatic transmission with axial piston pump and two hydraulic motors with double speed.
• Controls are pilot assisted assembled on the 180° rotating driver’s seat.
• STAGE V turbo diesel common rail engine with DPF.
• Auto Two Speed.
• Canopy standard.
• Loading vessel with 180° swivel tipping operated by one slew motor, controlled by joy-sticks.
• Versatile track body to be used in a wide range of application (transport, crane and pile drivers mainly), particularly suited to safely drive on soft or muddy ground.
• Available two different tracks sizes to reduce the ground pressure and overcome all the most slippery and highest gradient slopes.


OPTIONAL:

• Closed cab – 450 mm wide tracks (suggested with closed cab)
• Hydraulic P.T.O. 50 l/min at 175 bar
• High Flow 80 l/min at 175 bar
• Rear camera
• Towing hook.

Max payload: 3500 kg (7700 lb)
Engine power: STAGE V 48.6 kW (65 hp)
Width: 1800 mm (71 in)
Supply: Diesel
