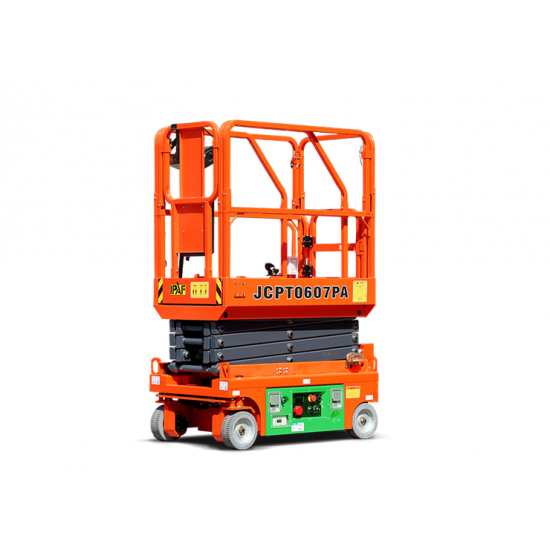

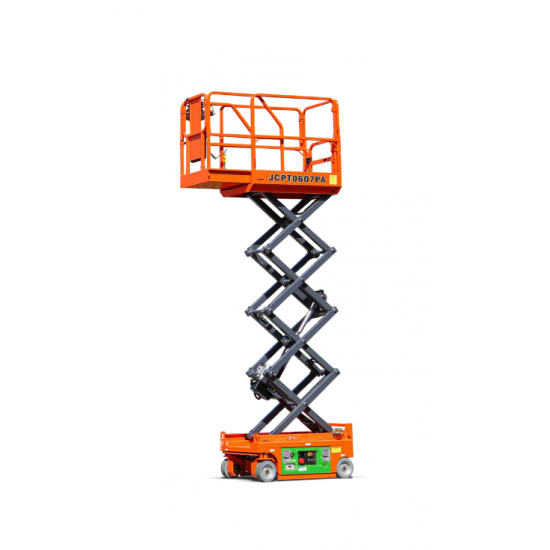

Dingli JCPT0607PA | Electric scissor lift with working height 5.6 meters and lifting capacity 240 kg

The JCPT0607PA is an oil-free, all-electric scissor lift designed for high energy efficiency, with direct motor drive systems delivering up to 95% transmission efficiency—saving over 30% energy compared to traditional hydraulic models. It ensures enhanced safety with high water and dust resistance, integrated position sensors, and real-time stroke monitoring. With no hydraulic system, it avoids issues like oil leaks or temperature-related efficiency loss, and features a maintenance-free permanent magnet synchronous motor and AGM battery to significantly reduce upkeep. Full-stroke proportional control offers smoother, more comfortable operation, while its quiet, zero-emission design makes it an environmentally friendly solution for modern worksites.

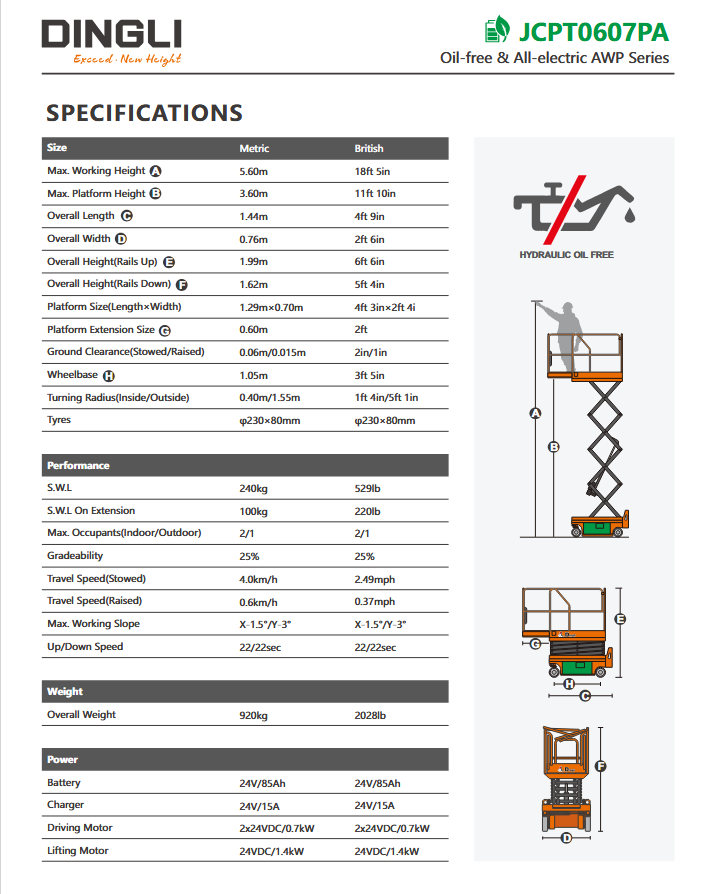

Max. Working Height: 5.60m
Safe Working Load: 240kg
Overall Length/Width: 1.46m*0.76m

FEATURES

• Proportional Joystick Controls
• Self-Locking Gates
• One-Way Platform Extension Deck
• Drivable At Full Height
• Non-Marking Tyres
• Two-Wheel Drive
• Two-Wheel Steering
• Automatic Braking System
• Emergency Descent System
• Onboard Fault Diagnostic System
• Tilt Alarm
• Motion Alarm
• Horn
• Hour Meter
• Safety Arm For Troubleshooting
• Standard Transport Forklift Holes
• Charging Protection System
• Flashing LED Beacon
• Foldable Guard Rails
• Automatic Pothole Protection
• Drive Enable
• Charging Indicator
• Manual Brake Release
• Lanyard Attachment Point
• Tie-Down And Lifting Points
• Platform Load Sense System
• Emergency Stop Button
