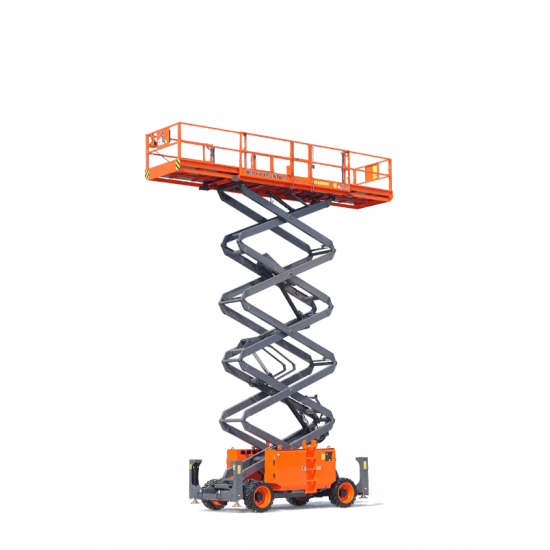

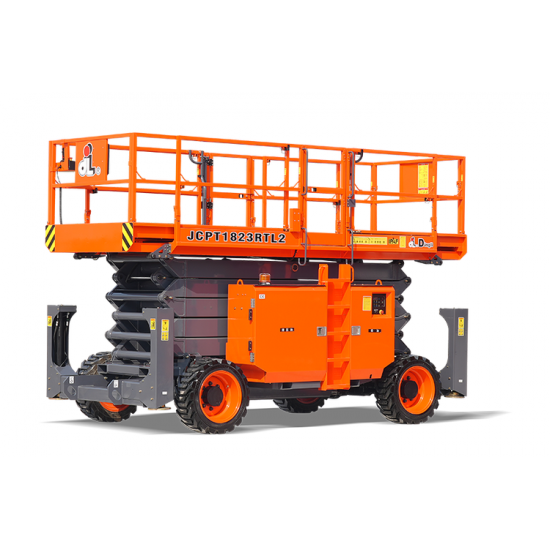

Dingli JCPT1823RTL2 | Diesel scissor lift with working height 18 meters and lifting capacity 680 kg

The JCPT1823RTL2 is a large scissor lift featuring 4WD & 2WS, offering excellent maneuverability and strong off-road performance. It is powered by a low-power diesel engine for energy efficiency. With a large platform (3.98m x 1.83m) and dual extension decks, it allows multiple people to work simultaneously at heights up to 18 meters. The one-key automatic leveling ensures enhanced safety and stability. Its overall dimensions make it easy to transport and container-friendly.

Max. Working Height: 18.00m
Safe Working Load: 680kg
Overall Length/Width: 4.88m*2.33m

FEATURES

• Drivable At Full Height
• Proportional Joystick Controls
• Self-Locking Gates
• Dual Slide-Out Platform Extension Deck
• Four-Wheel Drive
• Two-Wheel Steering
• Drive axle
• Wheel Braking
• Self-Weight Lowering System
• Tubing Explosion-Proof System
• Onboard Fault Diagnostic System
• Tilt Alarm
• Motion Alarm
• Horn
• Hour Meter
• Hydraulic Oil Cooling System
• Flashing LED Beacon
• Foldable Guard Rails
• Drive Enable
• Manual Brake Release
• Lanyard Attachment Point
• Tie-Down And Lifting Points
• Automatic Leveling Hydraulic Outriggers
• Anti-Restart Engine Protection
• Emergency Pump
• Emergency Stop Button
• Platform Load Sense System
• Oscillating Axle Chassis
