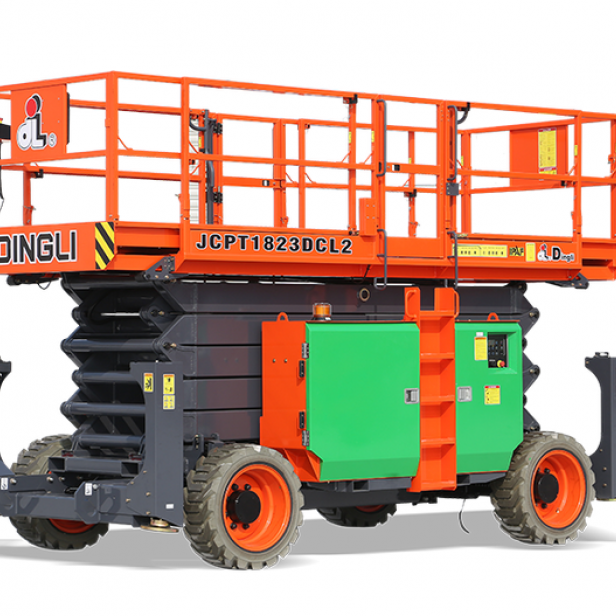

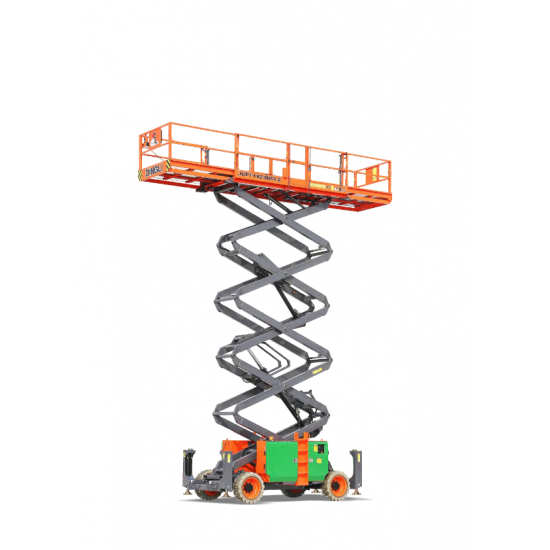

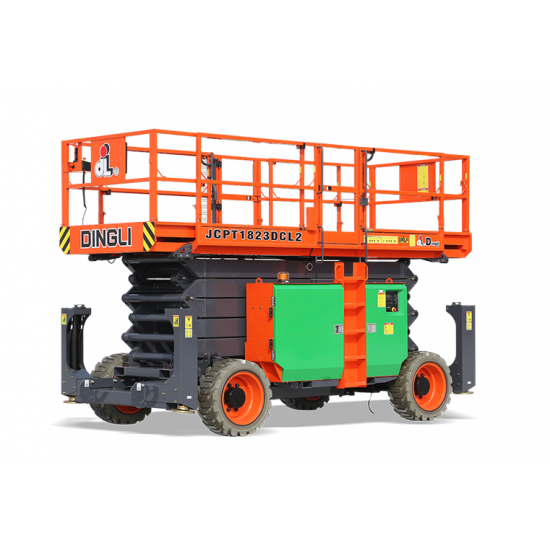

Dingli JCPT1823DCL2 | Electric scissor lift with working height 18 meters and lifting capacity 680 kg

The JCPT1823DCL2 is a large electric scissor lift with 4WD and 2WS, delivering excellent off-road performance and flexible operation. It features a spacious platform (3.98m x 1.83m) with dual extension decks (1.43m and 1.16m), allowing multiple operators to work simultaneously at a maximum height of 18 meters. Equipped with one-key automatic leveling, it ensures enhanced safety and stability. Its compact transport dimensions (4.88m x 2.29m x 2.49m) make it container-friendly and easy to move.

Max. Working Height: 18.00m
Safe Working Load: 680kg
Overall Length/Width: 4.88m*2.33m

FEATURES

• Drivable At Full Height
• Proportional Joystick Controls
• Self-Locking Gates
• Dual Slide-Out Platform Extension Deck
• Four-Wheel Drive
• Two-Wheel Steering
• Drive axle
• Automatic Braking System
• Self-Weight Lowering System
• Tubing Explosion-Proof System
• Onboard Fault Diagnostic System
• Tilt Alarm
• Motion Alarm
• Horn
• Hour Meter
• Flashing LED Beacon
• Foldable Guard Rails
• Drive Enable
• Manual Brake Release
• Lanyard Attachment Point
• Tie-Down And Lifting Points
• Automatic Leveling Hydraulic Outriggers
• Emergency Pump
• Emergency Stop Button
• Platform Load Sense System
• Oscillating Axle Chassis
