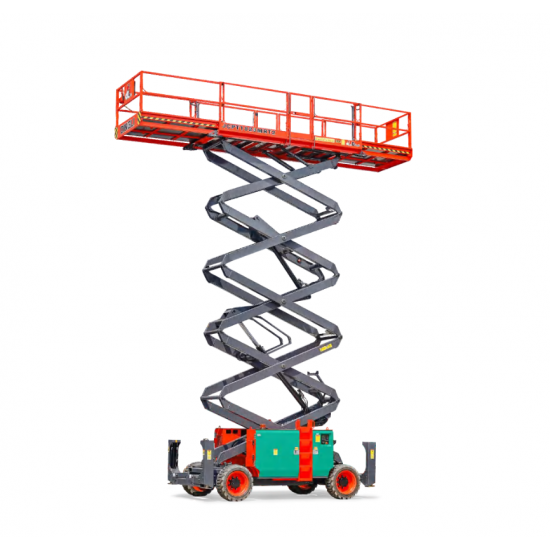

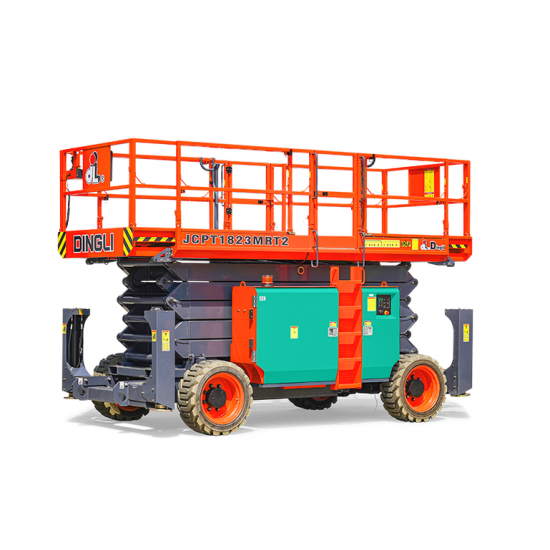

Dingli JCPT1823MRT2 | Hybrid scissor lift with working height 18 meters and lifting capacity 680 kg

The JCPT1823MRT2 is a heavy-duty hybrid scissor lift designed for demanding outdoor operations. It features four-wheel drive and two-wheel steering, ensuring excellent rough-terrain performance and automatic leveling. It is driveable at full height with a 680kg load and equipped with a dual-way extension platform that can be stopped at any point for greater flexibility. The 18.2kW low-power engine charges the battery during normal use, while in complex conditions, the battery supports additional torque output. The machine also supports renewable biodiesel, making it highly energy-efficient, powerful, economical, and environmentally friendly.

Max. Working Height: 18.00m
Safe Working Load: 680kg
Overall Length/Width: 4.88m*2.33m

FEATURES

• Drivable At Full Height
• Proportional Joystick Controls
• Self-lock Gate On Platform
• Dual Slide-Out Platform Extension Deck
• Four-Wheel Drive
• Two-Wheel Steering
• Drive axle
• Automatic Brake System
• Self-Weight Lowering System
• Cylinder Holding Valve
• Onboard Diagnostic System
• Tilt Alarm
• All Motion Alarm
• Horn
• Hour Meter
• Hydraulic Oil Cooling System
• Flashing LED Beacon
• Foldable Guard Rails
• Drive Enable
• Manual Brake Release
• Lanyard Attachment Point
• Tie-Down And Lifting Points
• Automatic Leveling Hydraulic Outriggers
• Anti-Restart Engine Protection
• Emergency Pump
• Emergency Stop Button
• Platform Load Sense System
• Oscillating Axle Chassis
