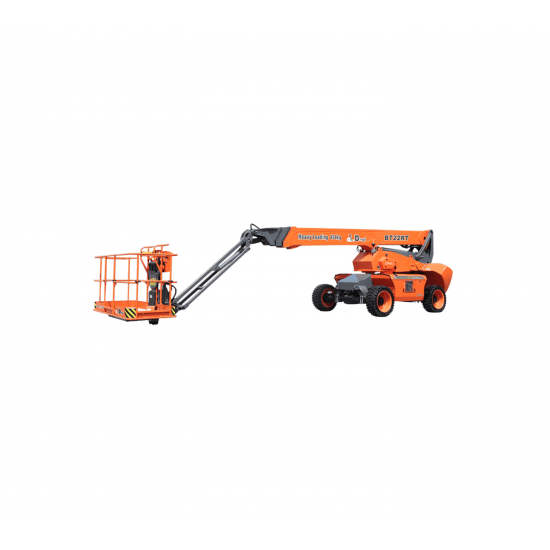

Dingli BT22RT | Diesel Telescopic Boom Lift with 22.51 m working height and 454 kg platform capacity

BT22RT - M Series

The BT22RT from the M Series was developed by MAGNI, DINGLI’s Italian R&D center. It features a modular design both horizontally and vertically, with 85% of components shared across the entire range, while electric, diesel, and hybrid models are all built on the same platform. The machine is equipped with an integrated axle, four-wheel drive, and four-wheel steering, along with a 100% hydraulic differential lock, delivering strong power and excellent rough-terrain perforamance. Its downward component layout lowers the center of gravity, enhancing overall stability. Suitable for standard container transport, the machine is powered by a high-performance 55.4 kW engine, offering a gradeability of up to 45%.

Standard Items:

• 2.31 m (7ft 7in) Jib
• Front oscillating axle
• Four-wheel steering
• Four-wheel drive
• Self-leveling platform
• 180° left and right swing platform
• Proportional joystick controls
• Thumb rocker steering
• Drive enable
• AC power cord to platform
• Tilt alarm
• Descent alarm
• Flash
• Horn
• Hour meter
• Integral special drive axle for construction machinery
• 360° continuous turntable rotation
• Positive traction four-wheel drive
• Platform load sensing system
• Fault diagnosis system
• Operator anti-crushing protection system
• Harsh environment kits
• 12V DC auxiliary power
• Deutz D2.9 L4 diesel engine, 36.4 kW / 2600 rpm
• Hydraulic oil radiator
• Anti-restart engine protection
• Anti-reverse engine device
• Automatic engine fault shutdown

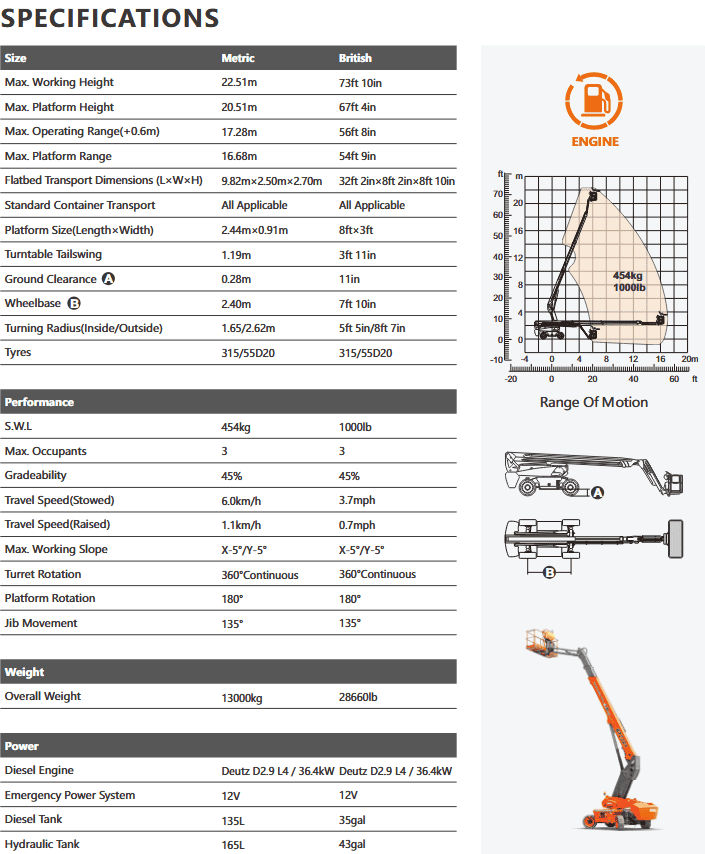

BT22RT
