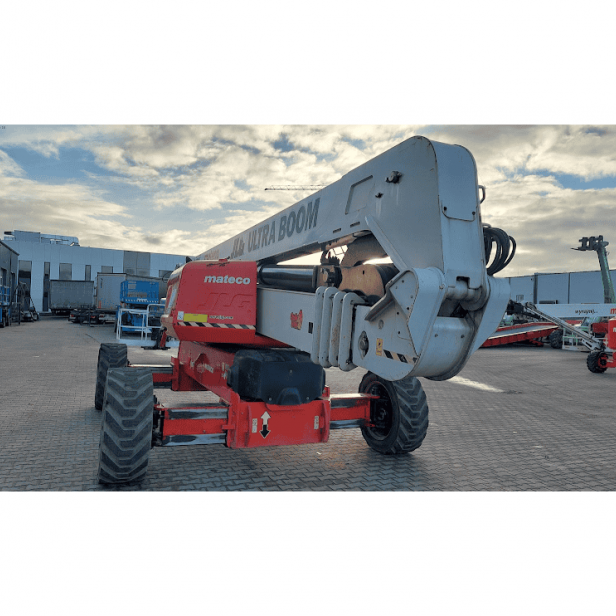

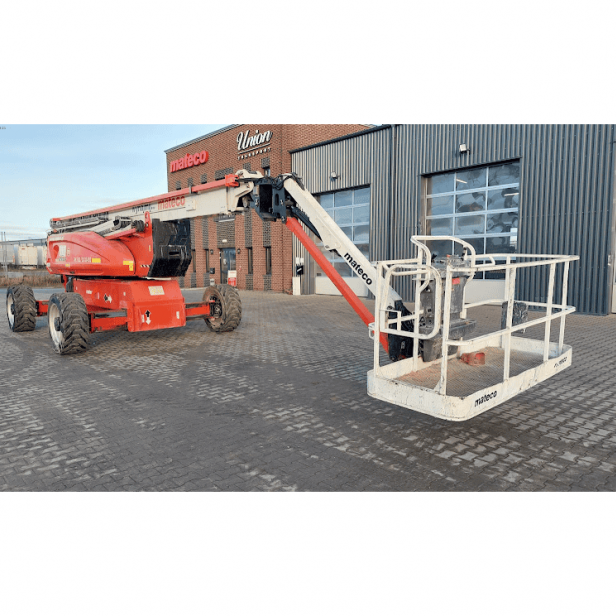

Articulating Self-Propelled Boom Lift Diesel JLG 1250AJP (MOD 2014) with working height up to 40.1m, horizontal outreach 19.25m and platform capacity 450kg | Available for rental

JLG 1250AJP

The JLG 1250AJP is a high-performance articulated boom lift diesel, designed for professional high-reach applications. With a platform height of 38m and horizontal outreach of over 19m, this high reach boom lift delivers exceptional stability, flexibility, and safety for construction, industrial maintenance, and façade access projects. It is an ideal choice for companies looking for reliable aerial work platforms and diesel boom lifts for demanding job sites.

Key Advantages
• High platform height up to 38.1m, ideal for high elevation work
• Extended horizontal outreach (~19.25m) for access over obstacles
• Dual platform capacity (restricted/unrestricted) for flexibility
• 360° continuous rotation for precise positioning
• 4x4 drive system for rough terrain performance
• Powerful diesel engine (Tier 4) for reliability and efficiency
• Robust design for heavy-duty construction and industrial use
• Ideal aerial work platform for professional applications

Technical Specifications
• Platform Height: ~38.1m
• Working Height: ~40.3m
• Horizontal Outreach: ~19.25m
• Platform Capacity: up to 450kg (restricted) / 230kg (unrestricted)

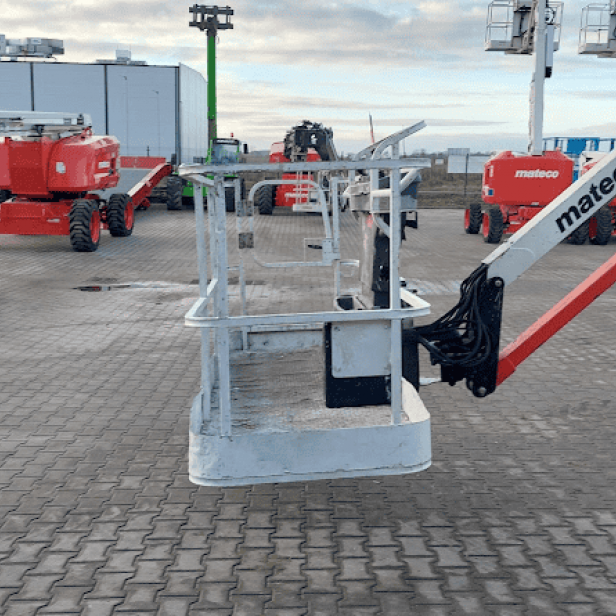

• Platform Size: 0.91 × 2.44m
• Platform Rotation: 180° hydraulic
• Turntable Rotation: 360° continuous

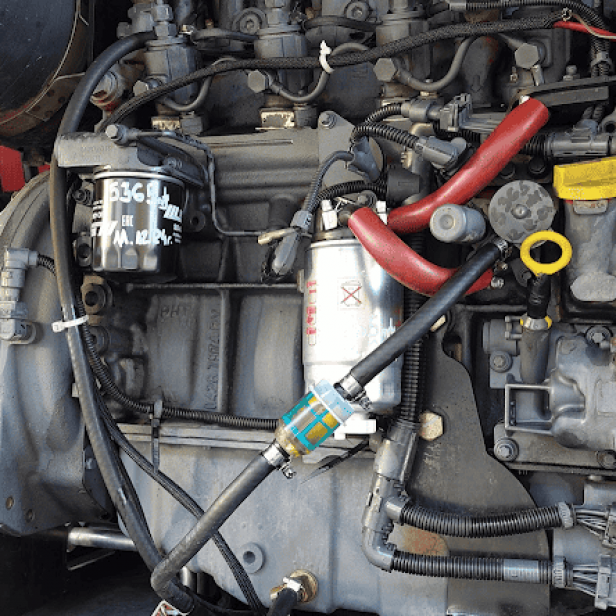

• Engine: Diesel DEUTZ TCD2.9L Tier 4
• Fuel Tank Capacity: ~117L
• Gradeability: ~45%
• Drive Speed (4WD): ~5.2 km/h
• Machine Dimensions: length ~11.46m, width ~3.81m, height ~3.05m
• Machine Weight: ~19,958 kg
• Tires: Foam-filled

Standard Features
• 12V DC auxiliary power
• 173° hydraulic platform rotation
• 3 selectable steering modes
• AC power outlet in platform
• All motion alarm
• Center storage tray
• Telematics system (ClearSky Smart Fleet™)
• Advanced control system
• Extendable drive axles
• Engine warning and shutdown system
• Full-time 4WD
• Glow plugs
• Steel engine covers

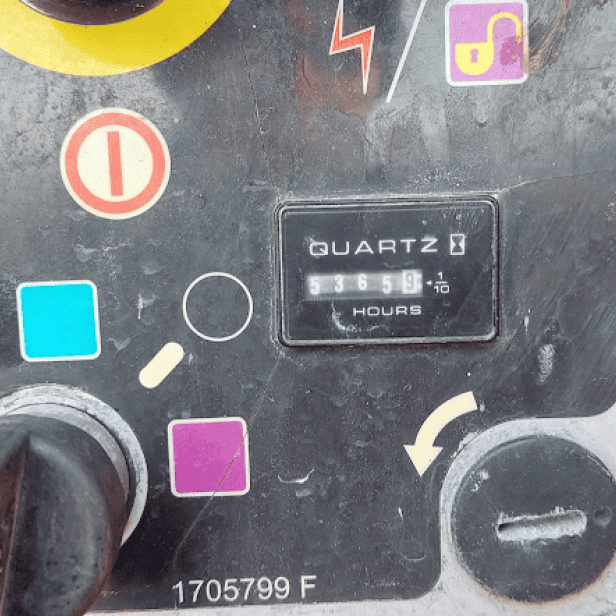

• Hour meter
• LED beacon light
• Lifting and tie-down points
• Load sensing system

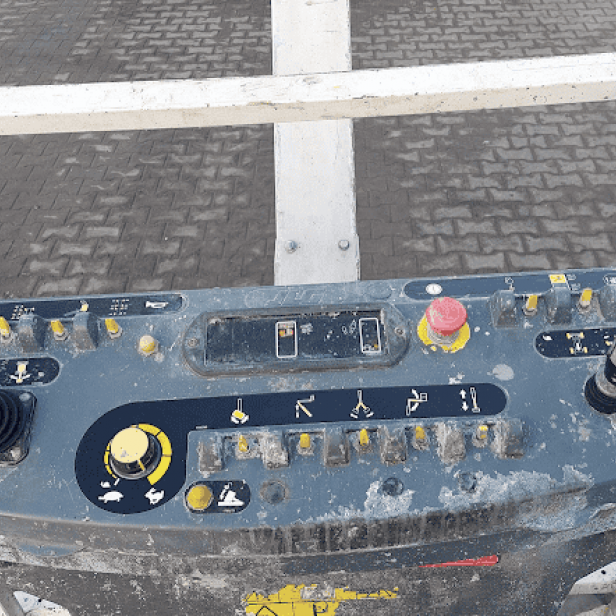

• LCD display at platform controls
• Proportional controls
• Machine status indicator panel
• Quick-change platform with self-closing gate
• Selectable capacity system
• Swing-out engine tray
• Operator protection system
• Tilt alarm and indicator
• USB charging ports

Applications
The JLG 1250AJP articulated boom lift is ideal for:
• Construction projects requiring high reach access
• Industrial maintenance at height
• Access to difficult and obstructed areas
• Installation and servicing of equipment
• Façade works and building maintenance
• Infrastructure and public works projects
• Professional use of diesel aerial work platforms
