ELECTRIC GLASS VACUUM LIFTER VEB4 RCMBM 200KG 220V Ή 380V

VEB4 RCMBM D4

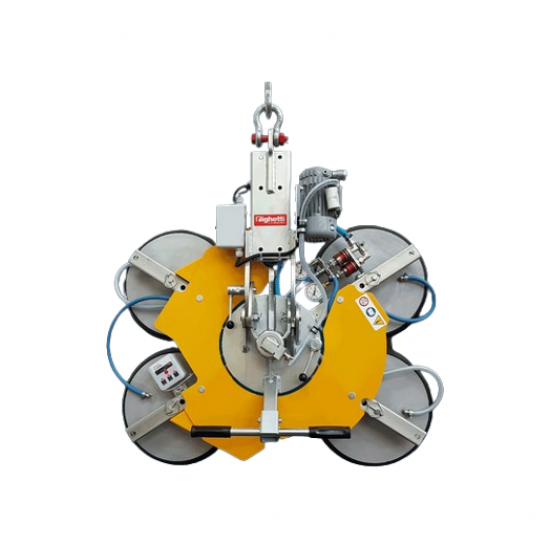

The VEB4 RCMBM d4 model is vacuum glass lifter with four suction pads d. 390 mm, perfect to lift and handle glass sheets. VEB4 has electric operating system. As standard is available 400V 3 phase or 220V single phase operated system. On request other voltage. The lifter permits to rotate the glass of 360° and tilt 90° from horizontal to vertical and vice versa. The 4 suction pads are repositionable in two different positions: when the lifter is closed the pads spread is 795x1019 mm; when the lifter is open the pads spread is 941x1246 mm. VEB4 can be produced, as optional, with dual vacuum circuit according to EN13155 standard.
