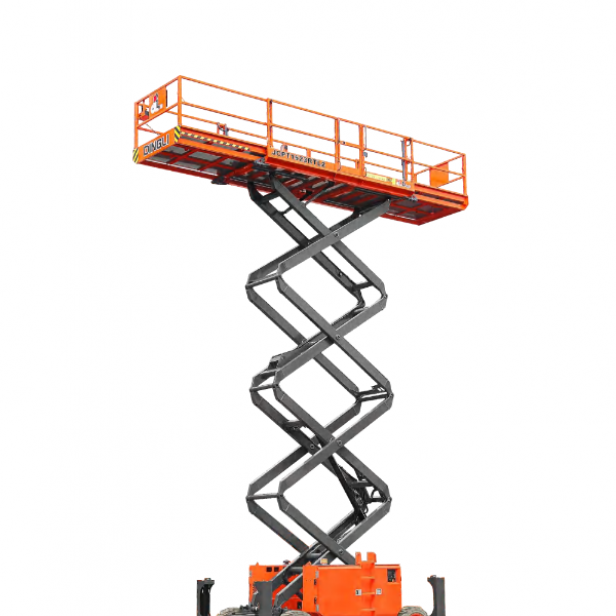

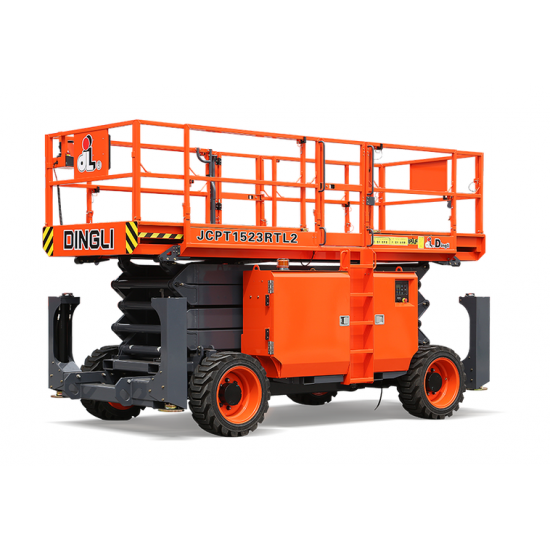

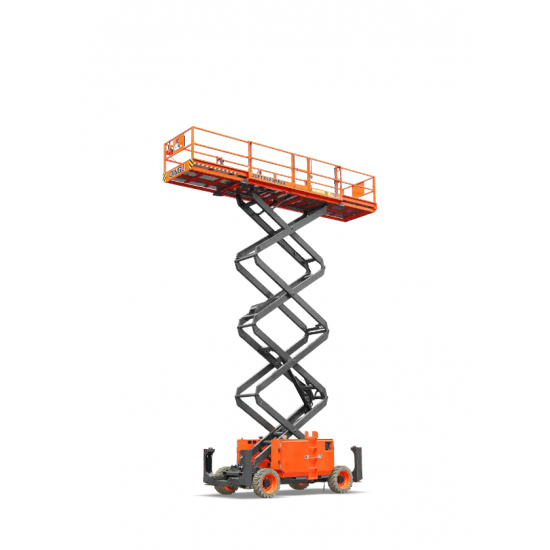

Dingli JCPT1523RTL2 | Diesel scissor lift with working height 15 meters and lifting capacity 680 kg

The JCPT1523RTL2 is a diesel-powered heavy-duty scissor lift featuring integrated axles with 4WD & 2WS for superior off-road performance. It offers a large 4.88m x 1.83m working platform with dual extension decks, a maximum working height of 18 meters, and a load capacity of 680kg, allowing multiple operators to work simultaneously. With one-key automatic leveling, it ensures enhanced safety and stability on any terrain.

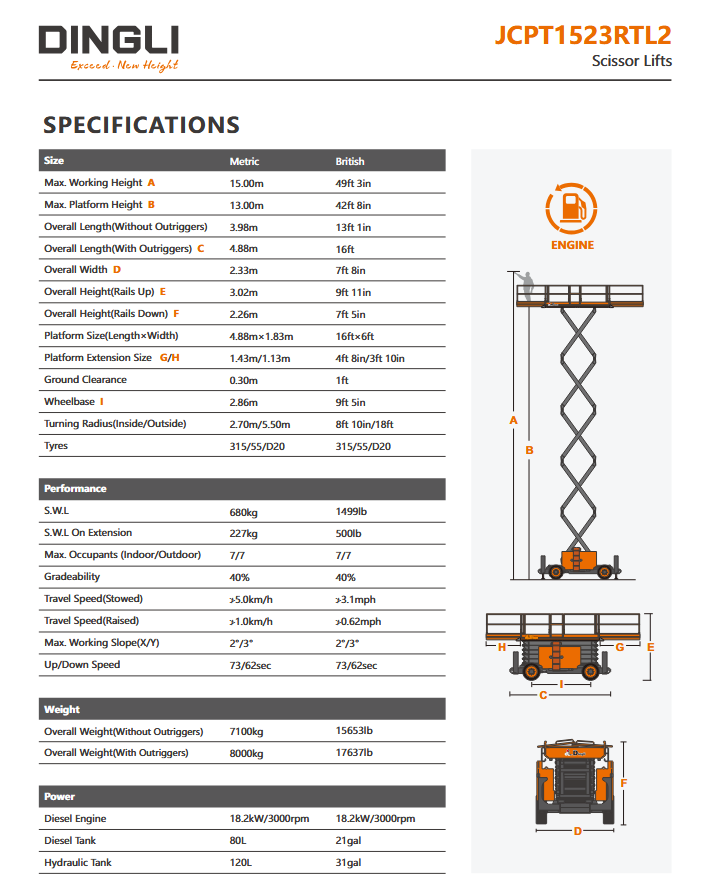

Max. Working Height: 15.00m
Safe Working Load: 680kg
Overall Length/Width: 4.88m*2.33m

FEATURES

• Proportional Joystick Controls
• Self-Locking Gates
• Dual Slide-Out Platform Extension Deck
• Four-Wheel Drive
• Two-Wheel Steering
• Drive axle
• Wheel Braking
• Self-Weight Lowering System
• Tubing Explosion-Proof System
• Onboard Fault Diagnostic System
• Tilt Alarm
• Motion Alarm
• Horn
• Hour Meter
• Hydraulic Oil Cooling System
• Flashing LED Beacon
• Foldable Guard Rails
• Drive Enable
• Manual Brake Release
• Lanyard Attachment Point
• Tie-Down And Lifting Points
• Automatic Leveling Hydraulic Outriggers
• Anti-Restart Engine Protection
• Emergency Pump
• Emergency Stop Button
• Platform Load Sense System
• Oscillating Axle Chassis
