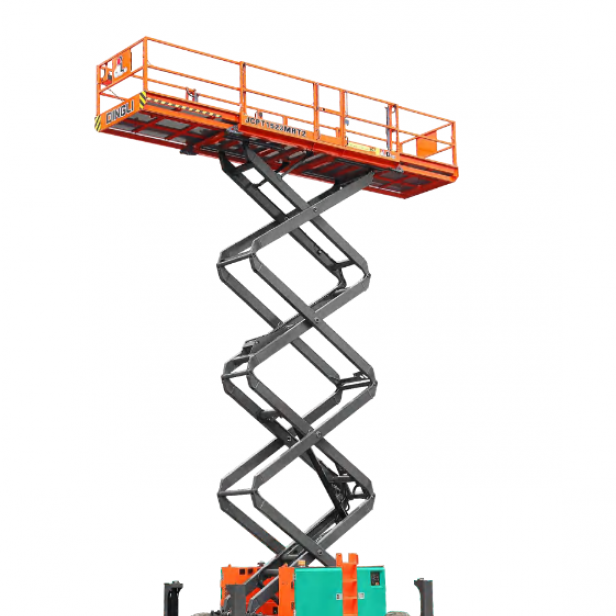

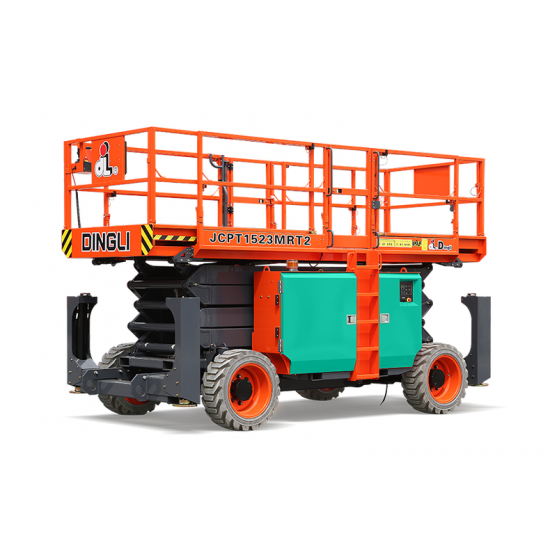

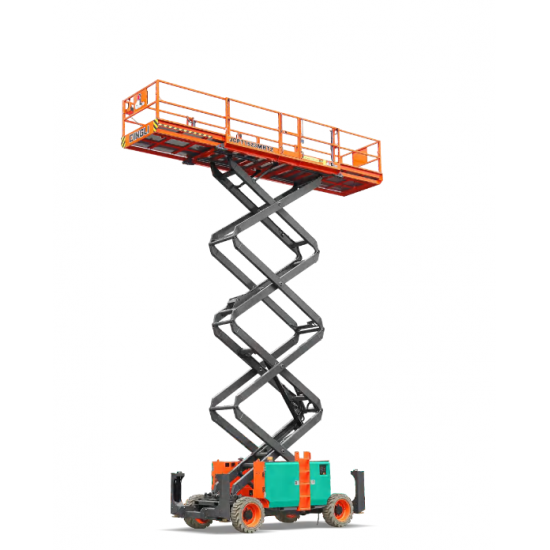

Dingli JCPT1523MRT2 | Hybrid scissor lift with working height 15 meters and lifting capacity 680 kg

The JCPT1523MRT2 is a high-performance large scissor lift designed for demanding outdoor tasks. It is driveable at full height with a maximum load of 680kg, featuring 4WD and automatic leveling for superior rough-terrain capability. Its dual-way extension platform can stop at any point for flexible access. Powered by an 18.2kW low-power engine, it includes a smart hybrid system where the engine charges the battery during normal operation, and the battery provides extra torque when needed. It supports renewable biodiesel, offering strong power, greater energy savings, and enhanced eco-friendliness.

Max. Working Height: 15.00m
Safe Working Load: 680kg
Overall Length/Width: 4.88m*2.33m

FEATURES

• Proportional Joystick Controls
• Self-Locking Gates
• Dual Slide-Out Platform Extension Deck
• Four-Wheel Drive
• Two-Wheel Steering
• Drive axle
• Wheel Braking
• Self-Weight Lowering System
• Tubing Explosion-Proof System
• Onboard Fault Diagnostic System
• Tilt Alarm

• Motion Alarm

• Horn
• Hour Meter
• Hydraulic Oil Cooling System
• Flashing LED Beacon
• Foldable Guard Rails
• Drive Enable
• Manual Brake Releas
• Lanyard Attachment Point
• Tie-Down And Lifting Points
• Automatic Leveling Hydraulic Outriggers
• Anti-Restart Engine Protection
• Emergency Pump
• Emergency Stop Button
• Platform Load Sense System
• Oscillating Axle Chassis
