Name: COME UP Seal Gen 9.5 | Waterproof Vehicle Winch | 4310 kg
Brand: COME UP
Availability: OutOfStock

COME UP Seal Gen 9.5 | Waterproof Vehicle Winch with 30 m wire rope with lifting capacity up to 4310 kg operation 12 V

COME UP Seal Gen 9.5 Waterproof Vehicle Winch 4310 kg Waterproof Vehicle Winch Seal Gen2 9.5 Seal Gen2 9.5 30 m wire rope Winch Seal Gen2 9.5 4310 kg Vehicle Winch

Delivery 25-30 wo.days

COME UP Seal Gen 9.5 | Waterproof Vehicle Winch with 30 m wire rope with lifting capacity up to 4310 kg operation 12 V

Stock: Delivery 25-30 wo.days
Model: 1258

COME UP

0 reviews - Write a review

0.00€

(With Tax)

Qty

Add to Cart

Ask us about the product

Add to Wish List Compare this Product

Seal Gen2 9.5

12V DC severe duty winch rated at 9,500 lb pulling meets or exceeds your expectations.
Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
16 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to reposition in 22.5 degree increments.
Water-proof remote control with thermometric LED indicator w/5 m cord
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion. The greater the load on the rope, the greater amount of braking is generated by the mechanism.
Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2004/108/EC.

Specification/Part Numbers:

Part number: PN 295950
Rated line pull: 4,309 kg / 9,500 lb single line
Motor: 3,730 w / 5.0 hp 12V series wound
Gear ratio: 3-stage planetary 159:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum

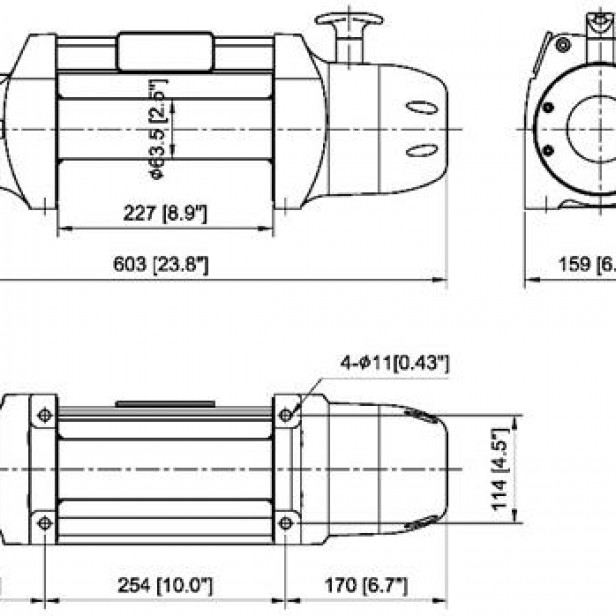

Drum size: 63.5 x 227 x 273 mm (2.5” x 8.9” x 10.7″)
Control: Waterproof remote with thermometric indicator LED w/ 5 m (17′) cord
Rope type: Galvanized aircraft A7 x 19 wire rope
Rope size: 8.7 mm x 30.5 m (11/32” x 100’)
Mounting bolts pattern: 254 x 114 mm (10” x 4.5”)
Mounting : Foot forward or foot down mounting workable
Finish : Matte black powder-coated
Winch weight (including rope) : 36.2 kg / 79.8 lb
Gross weight : 51.3 kg / 113 lb
Box dimension, (L x D x H) : 682 x 209 x 430 mm (26.9″ x 8.2″ x 16.9″)

Does this device not quite meet your needs? Discover our entire range of our products here in the shop!

Do you have questions about this product? Please contact us! Call us on: 00302105130003 or send us an email to info@kapountalis.com

Tags: COME UP Seal Gen 9.5, Waterproof Vehicle Winch, 4310 kg, 30 m wire rope, 12 V
