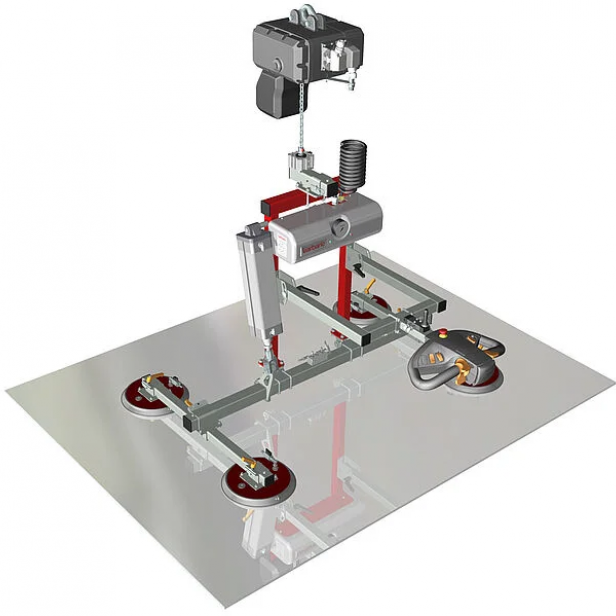

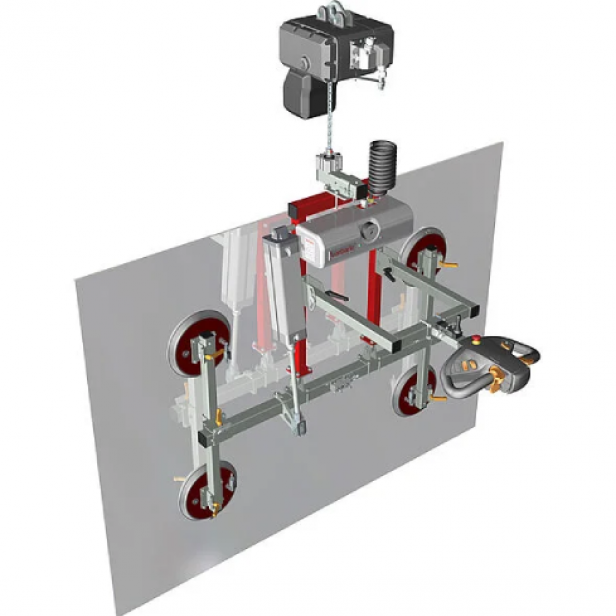

GLASS VACUUM UGL3 WITH TILT & CHAIN HOIST FOR LIFTING UP TO 2M 500KG

UniGlass lifter series

Our standard lifters for glass handling.

Our most used lifting devices for glass handling. Vacuum lifters from the UniGlass series are standard vacuum lifters for flat glass, ISO glass and windows with a special safety concept.

All benefits at a glance

• Vertical and horizontal transport of flat flat glass
• pneumatic tilting mechanism for a tilting range of 90°
• pneumatic vacuum generation using an ejector
• Push-off device for loosening the glass plate
• Execution complete with hoist
• incl. safety system to protect against unintentional detachment of the pane due to incorrect operation
• incl. comfort handling handle
• incl. traverse with 4 suction pads BA 270
• Load capacity 250 kg or 500 kg

Technical specifications

• tilting range        90 degrees
• suction pad size                270mm or 350mm
• chain hoist:       250kg: 0 - 10m/min. - 500kg: 0 - 5m/min
• infinitely variable by means of a frequency converter
• operating pressure         6 - 8 bar filtered compressed air required
• lifting height       Approx. 2m
• operating voltage            230V / 50HZ
