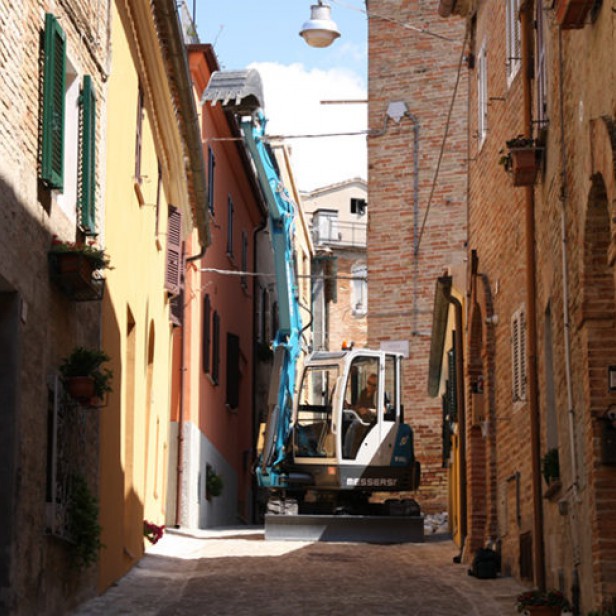

Messersì M60U | Mini tracked excavator with digging depth up to 3.74 m and operating weight of base version 5750 kg

 Mini excavators
Compact dimensions
Power and performance
Maximum precision

 General Features

• Innovative design with the tail always remaining within the width of the tracks Zero Tail Swing).
• Articulated boom.
• Fully servocontrolled commands: proportional rollers on the joy-sticks to control the boom swuing and the simple/double effect P.T.O. (no pedals).
• Travel levers and servo-controls disabling system by armrest lifting prevents accidents due to unexpected machine movement during entry or exit from the driving place.
• Extraordinary manoeuvrability due to the use of pilot assisted controls (joy-sticks) to operate arms and buckets.
• Straight travel contemporary with all arms/bucket manoeuvring.
• Rollers and idler wheels with rolling bearings replacing the guide bushings for a remarkable increasing in the traction and life time performances.

Standard equipment

• Cab with heating system according to TOPS norms
• Fully servocontrolled commands
• 2-speeds travel electric switch
• Articulated boom
• Regenerative system on dipstick arm
• 1550 mm. Long dipstick
• Hydraulic Power Take-Off (P.T.O.)
• Automatic transmission system Operator’s and spare parts manuals.

Options

• Buckets of mm from 300 to 1000 standard, for rocks and for Quick Hitches
• Buckets for slopes standard or swivelling
• Buckets for cleaning for hydraulic Quick Hitches
• Hydraulic breaker
• Hand breaker
• Hydraulic drill
• Grass-brush cutter
• Steel tracks
• 1850 mm longer arm
• Air conditioning
• Various auxiliary hydraulic lines

 Weight

5750kg

Engine power

44kW

Digging depth

3743mm

Type

Zero tail swing
