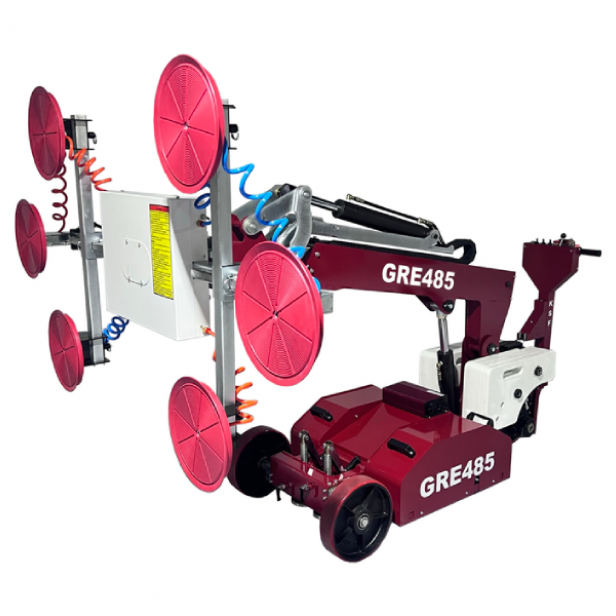

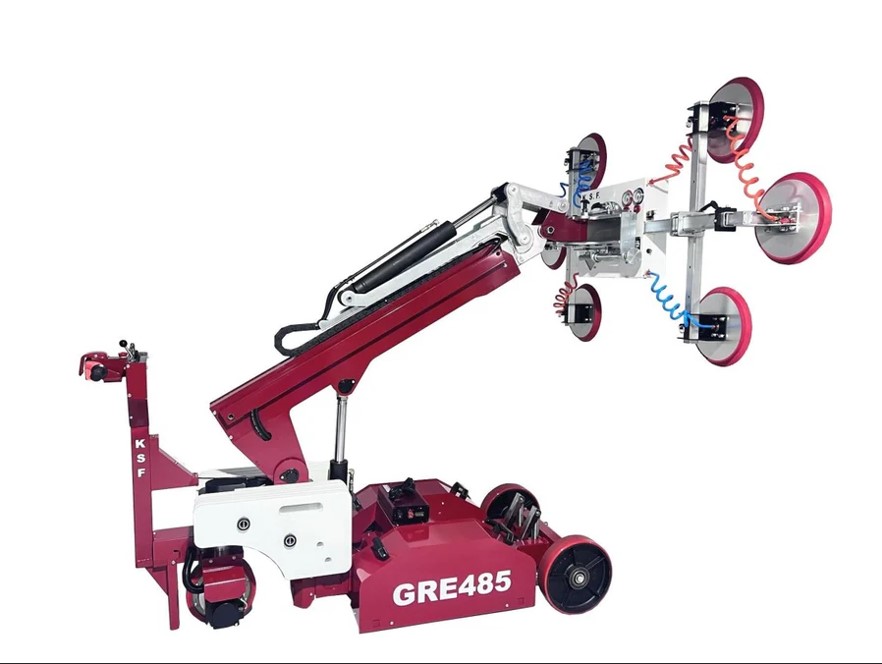

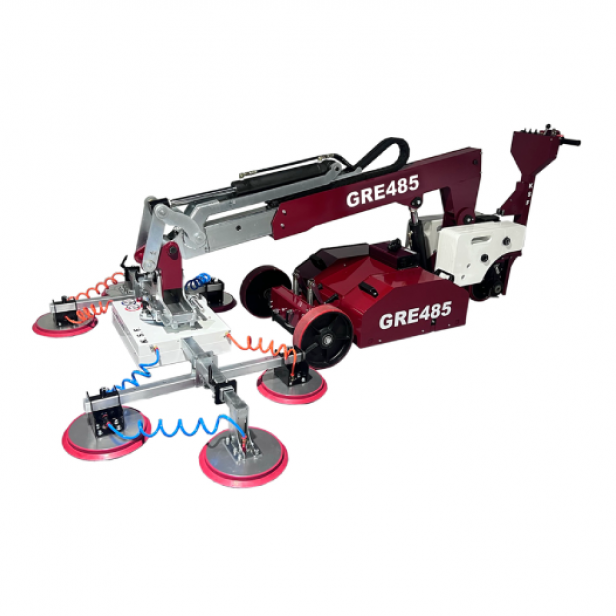

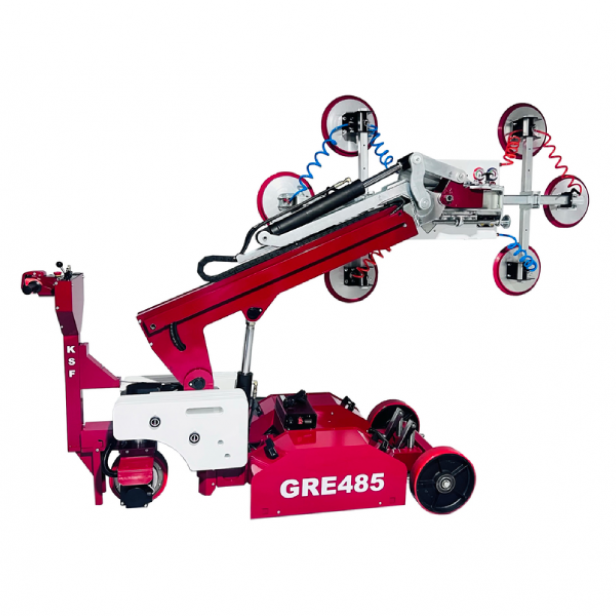

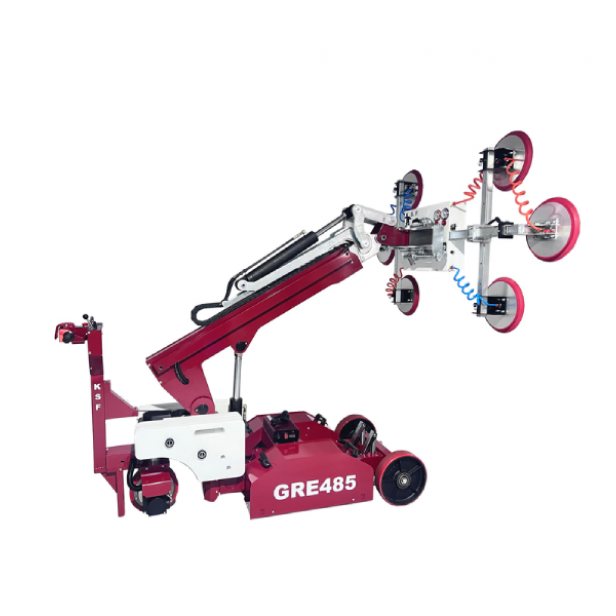

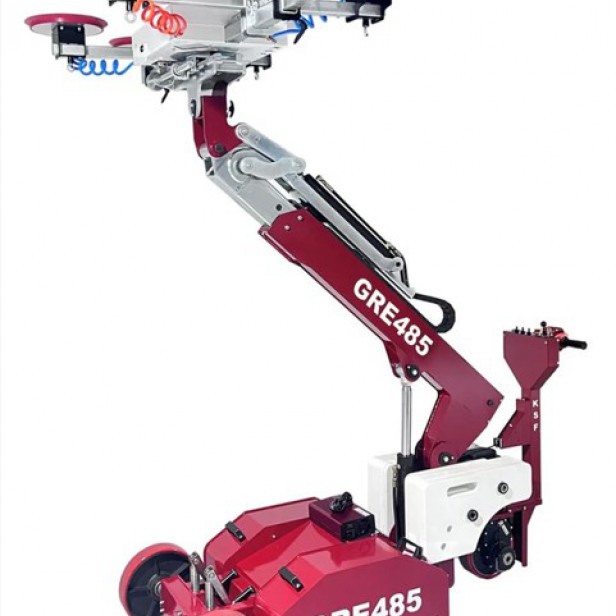

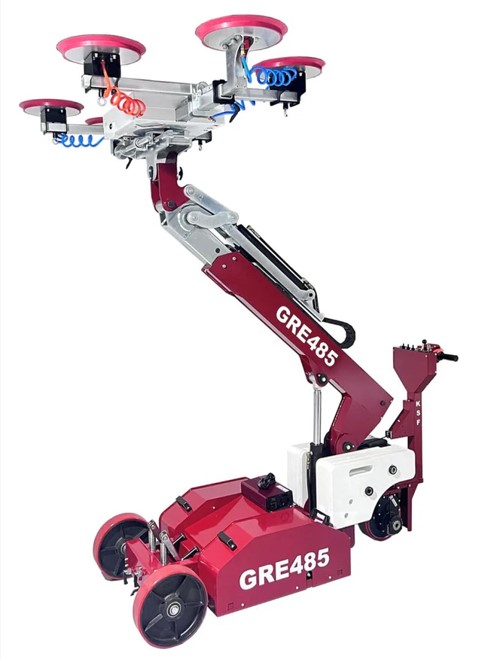

KSF GRE 485 | Electric Glass Lifting Robot with lifting capacity up to 3.25 m 485 kg

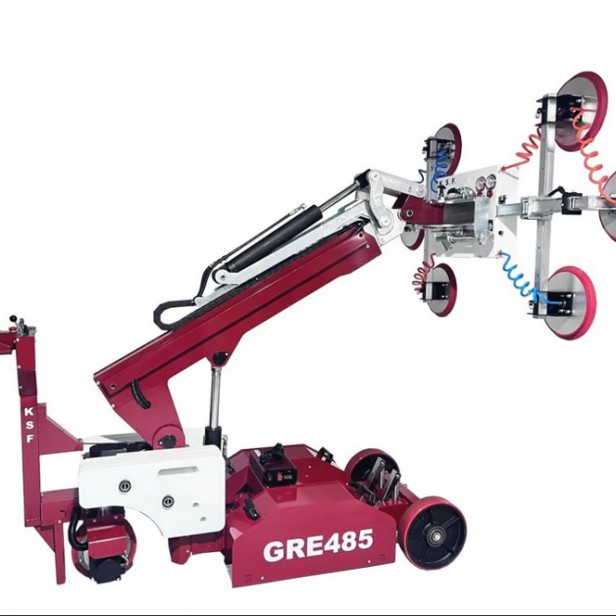

The KSF ELECTRIC GLASS LIFTING ROBOT GRE 485 is the robot manipulator designed for the installation of large glass and windows on construction sites.

Equipped with an electric motor and integrated battery charger, it guarantees careful and precise handling of heavy loads. The double-circuit suction cups with a maximum capacity of 485 kg can be operated safely by a single person. The 920 mm telescopic arm is combined with the joint system that facilitates passage through doors and corridors.

• Audible and visual alarms in case of overload

• Telescopic arm that allows great precision in the movement of the load
• Joint of the telescopic arm that allows it to pass through doors

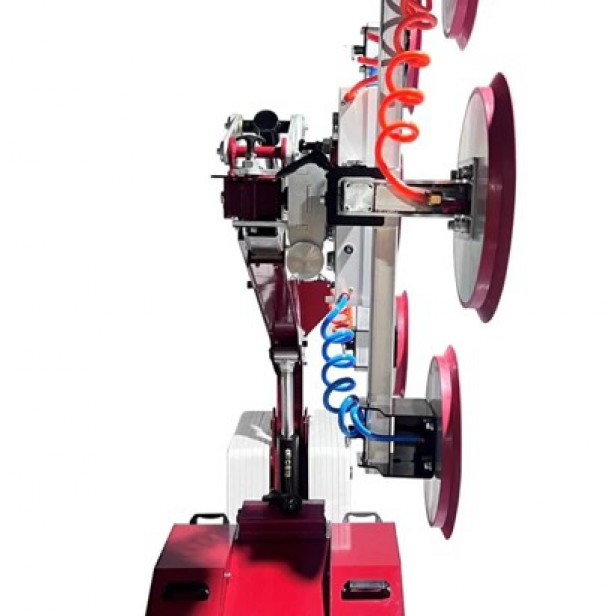

• Manual rotation of the suction cups in all directions
• 920 mm telescopic arm
• Electric drive for forward/backward movement
• Rear drive wheels, (0 - 5 km/h)
• Hydraulic lifting

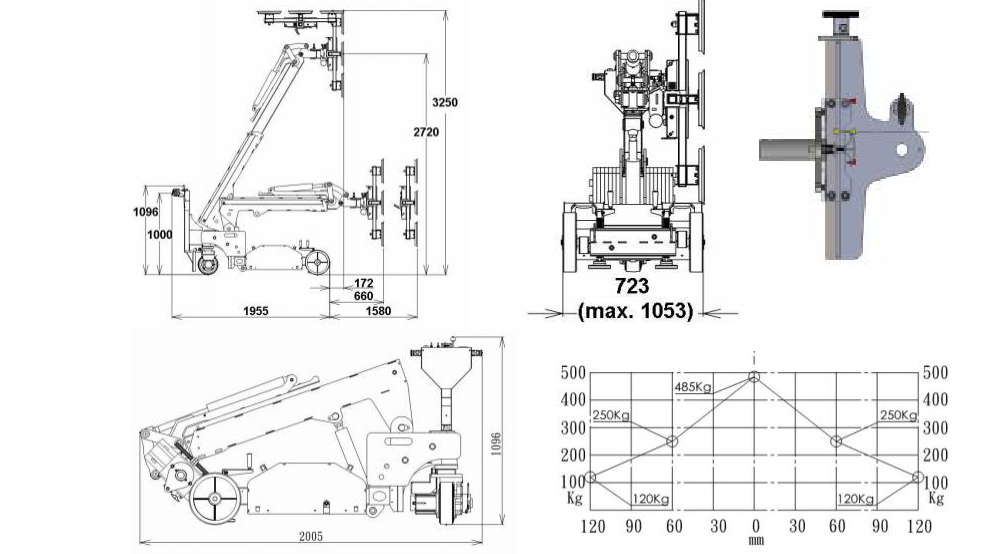

• Adjustable arms (723 / 1053 mm)

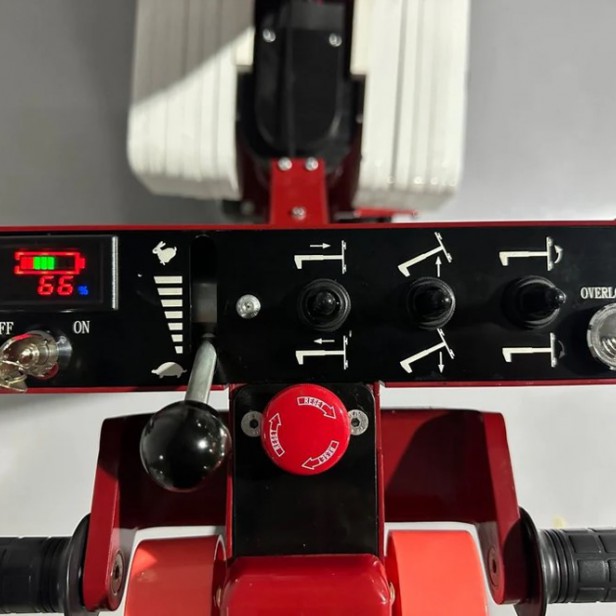

• Rear emergency stop to protect the user
• Built-in and protected battery charger Electric double circuit suction cup unit
• Integrated battery and its own safety systems.
• Suction cups with adjustable wheelbase
• Possibility of using a double hole hook

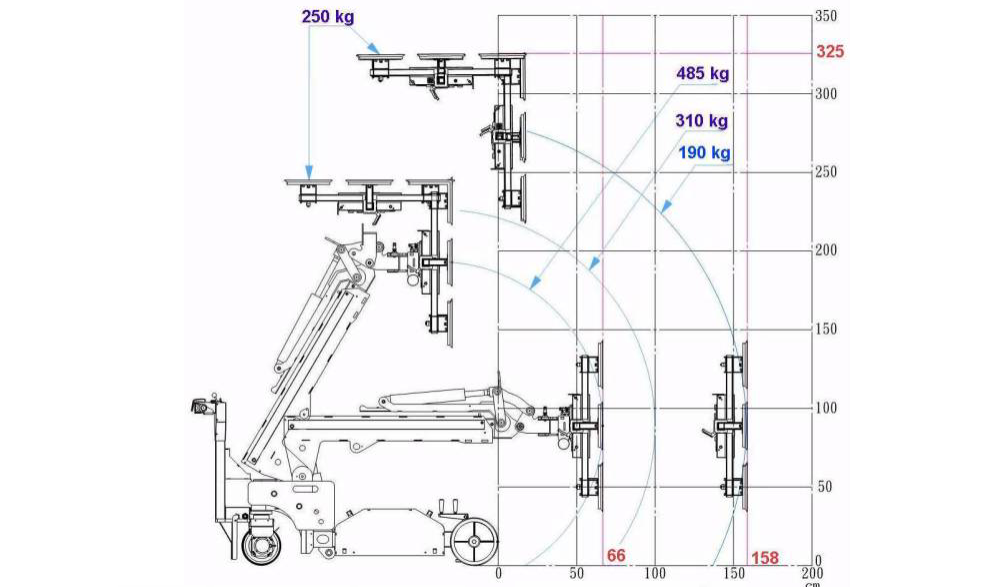

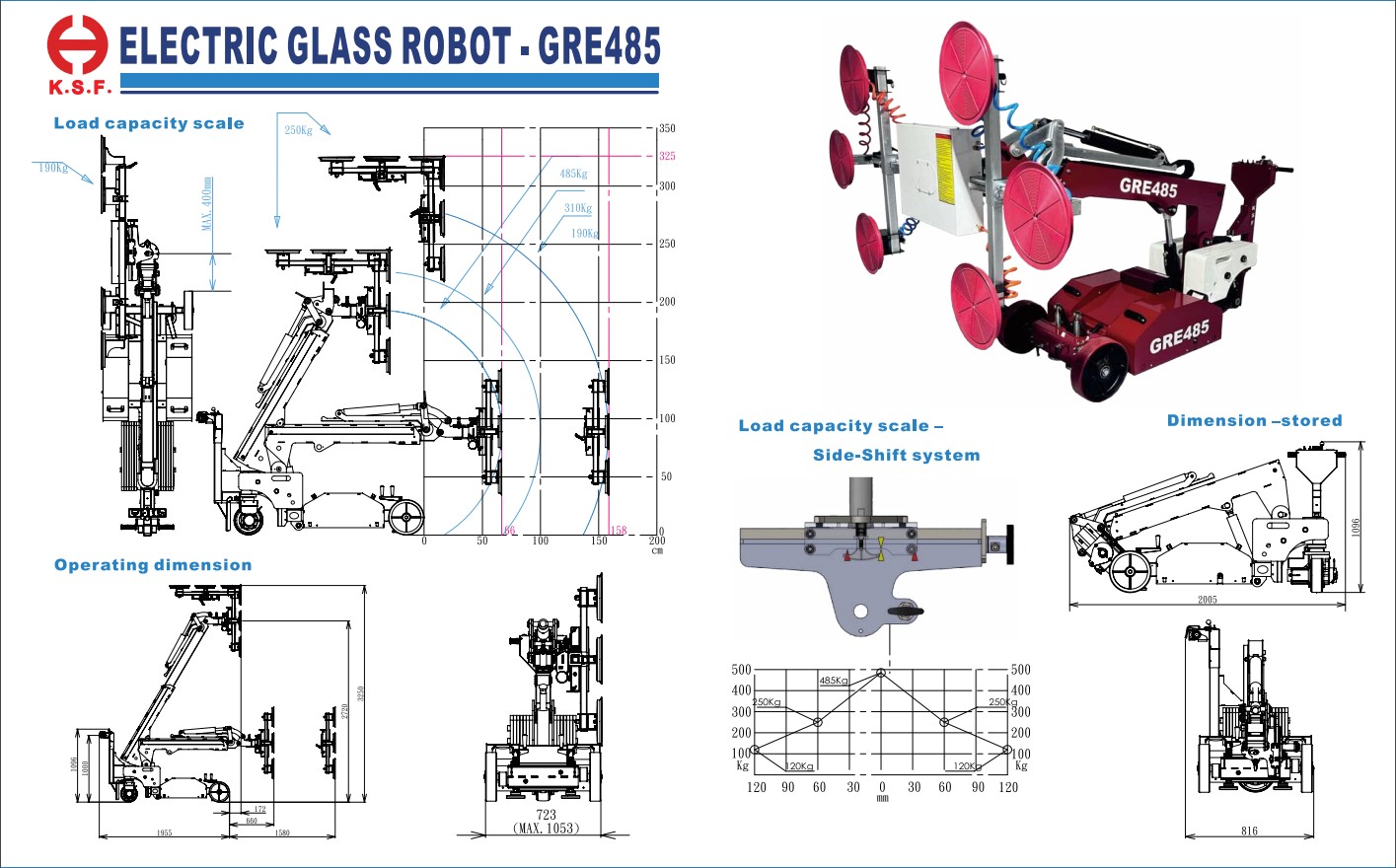

Capacity 485 kg

Lifting height 3.25 m

Lifting capacity (fully extended) 190 kg

Suction cup 6 x Ø 254 mm

Weight 770 kg

Removable counterweights 14 x 20 kg

Battery 2 x 12 V - 80 A
