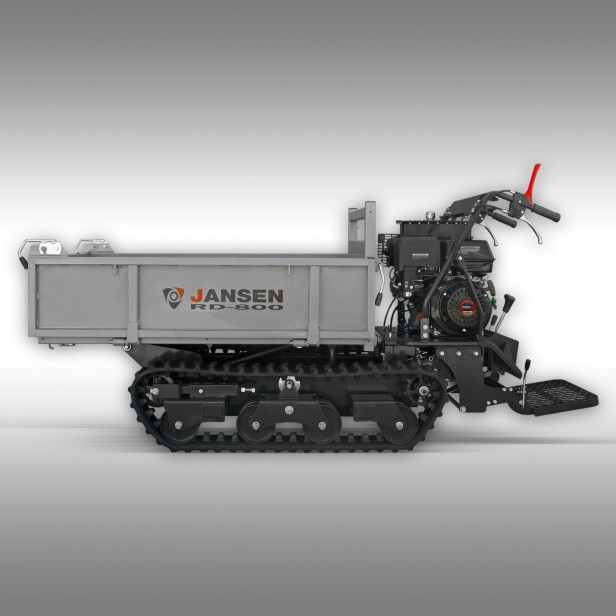

Track Dumper Jansen RD-800, Hydr. Skip, Flat Skip 800kg

Our Jansen RD-800 track dumper is a flexible powerhouse for a variety of applications. Thanks to the powerful hydraulic system with a lifting capacity of 1000 kg, it is easy for you to handle heavy loads. The Jansen RD-800 is THE tool for valuable service and the chains allows it to be used on rough terrain.

The Jansen RD-800 is the ideal equipment for the garden and landscaping sector and in forestry, or to haul loads when renovating.

The intuitive, easy to reach steering makes it extremely easy and convenient to operate. The foldable footboard also proves to be extremely helpful and comfortable on longer distances. The Jansen RD-800 track dumper has a powerful 13 HP recoil start petrol engine.

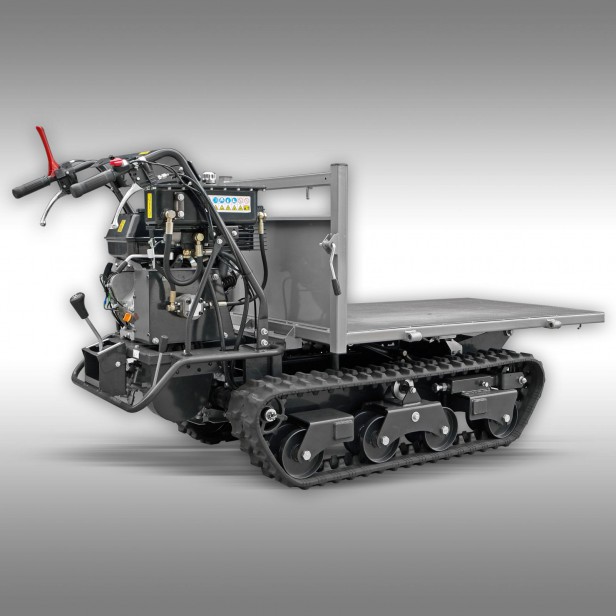

The RD-800 is equipped with a skip with folding side walls which can also be removed to use the platform as a transport bed. So even europallets (1200x800 mm) will easily fit the skip - even closed!

You can load up to 800 kg; below an overview of maximum loads and performance:

• Even terrain: Carrying capacity up to 1000 kg
• 17% or 10 degree slope: up to 650 kg
• 30% or 17 degree slope: up to 425 kg

Technical specifications:

• Engine type: 1 cylinder 4-stroke OHV engine, 390cm³, 11,02 kW, 13 HP, LonCin
• Fuel: unleaded petrol
• Starter: recoil start
• Assembled dimensions: 2240x880x1230 mm (LxWxH)
• Skip inside dimensions (closed): 1315x815x300 mm (LxWxH)
• Skip outside dimensions (closed): 1390x880x300 mm (LxWxH)

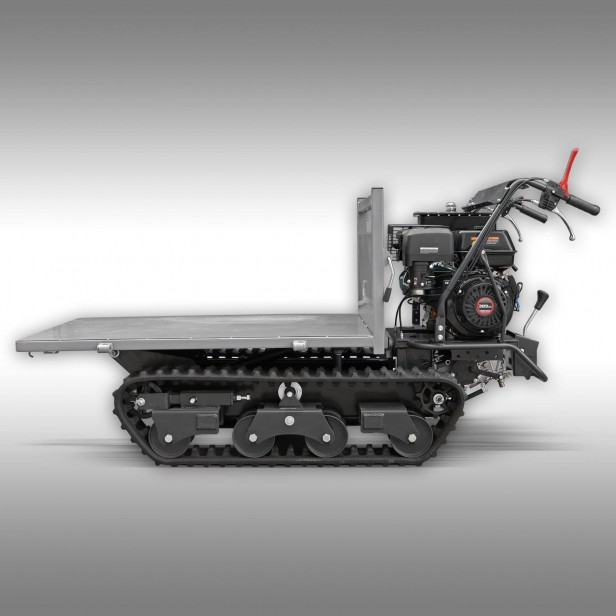

• Flat skip (without sides): 1320x820 mm (LxWxH)
• Skip front edge height (closed): 785 mm (from the ground)
• Skip front edge height (open): 485 mm (from the ground)
• Drive system: gear drive
• Steering: steering clutch brake

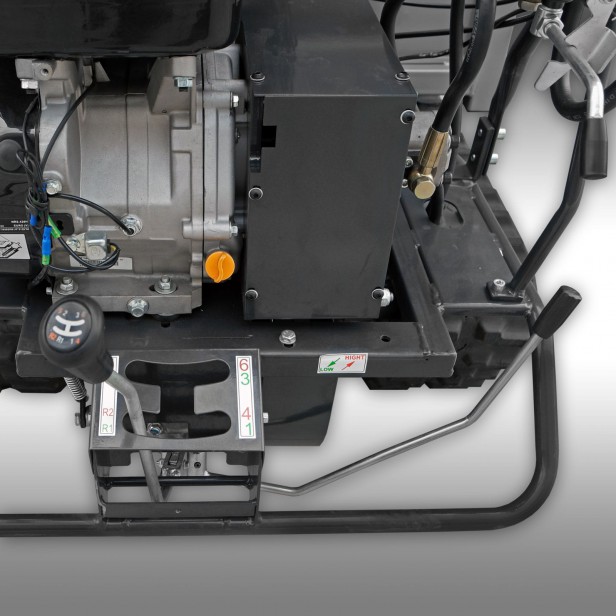

• Gears: 6 forward and 2 reverse gears
• Forward speed: max.8 km/h
• Reverse speed: max.5 km/h
• Brakes: automatic safety brake

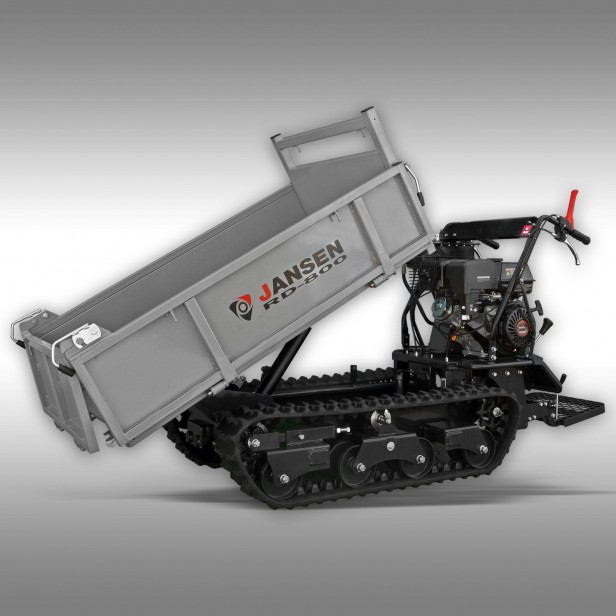

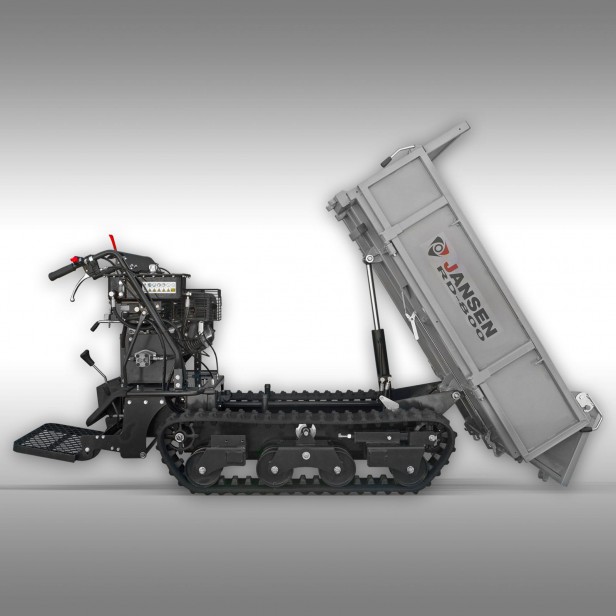

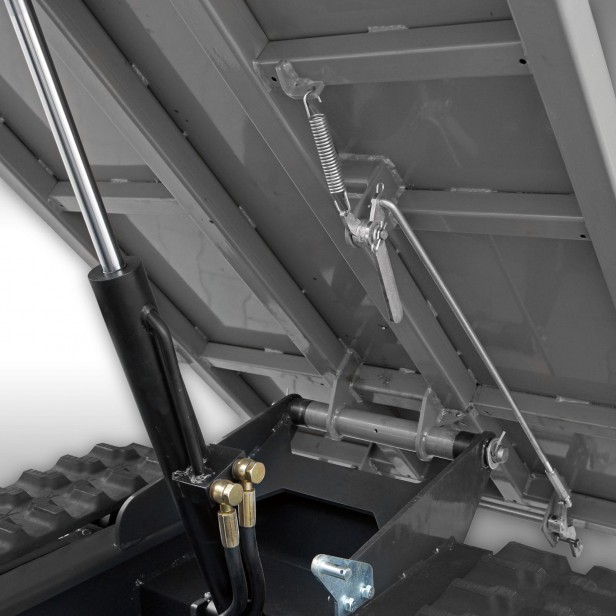

• Hydraulics: tipping hydraulics, forward tipping
• Load capacity: 1000 kg
• Platform: skip with folding side walls
• Ground clearance: 145 mm
• Package dimensions: 215x94x122 cm (LxWxH)
• Shipping weight: 445 kg
