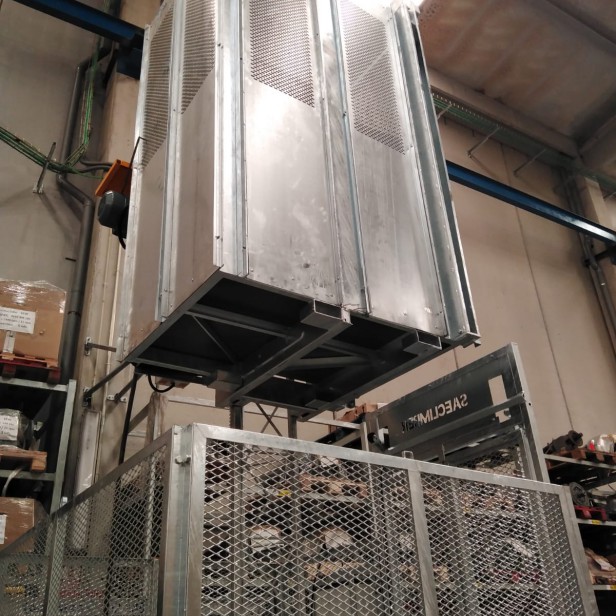

SAECLIMBER - Construction Hoists E05 - 120M 500KG

Construction Hoists E05

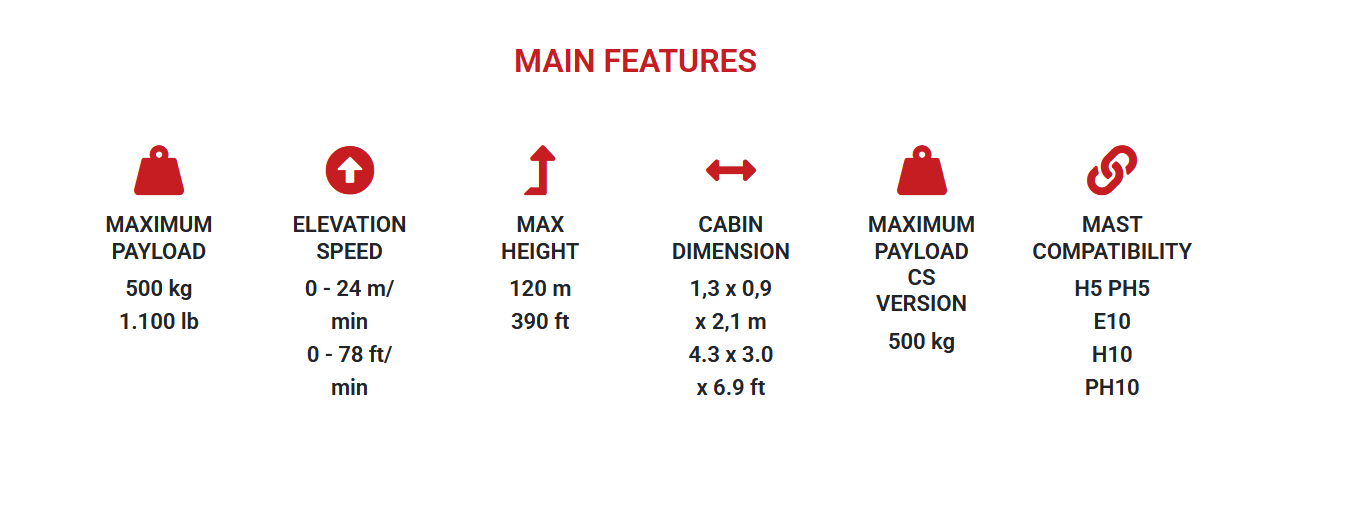

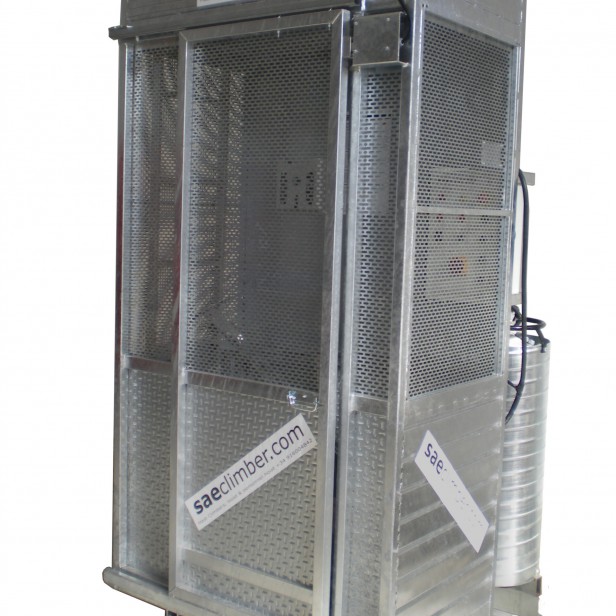

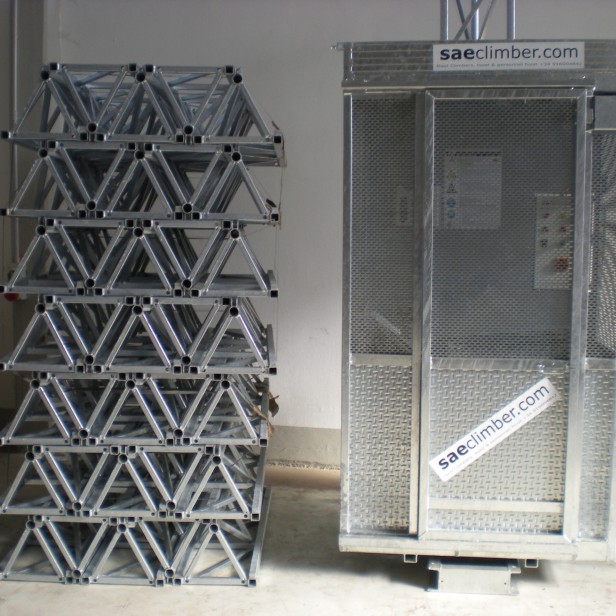

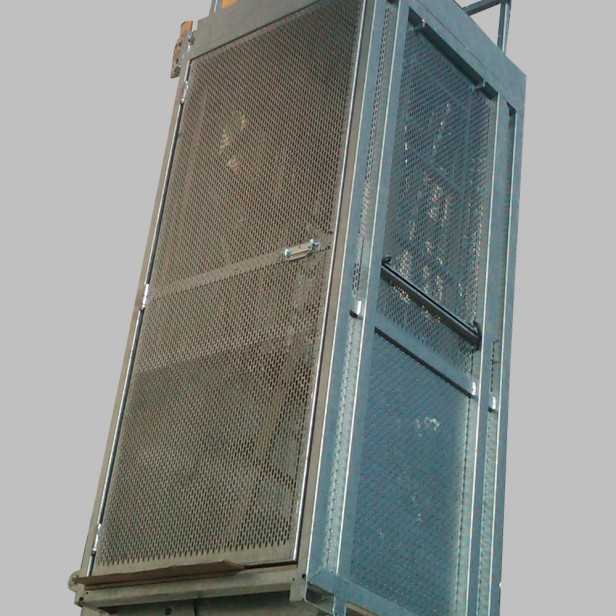

Our smallest Construction hoist E05 for Passengers and Materials has been designed according to EN 12159. E05 is a compact and reliable hoist conceived for narrow spaces. Available in 2 different motor configurations with the following speeds: 20 m/min or 36 m/min (with VFC). Payload is 500 Kg. Also available the version with 300 Kg capacity and mimimun cabin dimensions for 2 persons only. The E05 P&M hoist is made to be used when only a minimum space is available or when a service elevator is needed. It is perfect to be used as tower crane service lift. Mast Section is the same as the PH5 del PH10 e del E10

ADVANTAGES
Reasons for choosing the E05 model:

• Ideal to be used as a service elevator.
• Compact and reliable.
• Minimum dimensions.
• Fast in assembly.
• Economic and performing.

SAFETY DEVICES

• Base chassis with certified Rubber shock absorbers
• Cable basket or cable trolley
• Overload device (detection by load cells)
• Ascend & descend limit switch
• Mast ascend & descend emergency limit switch
• Mast detection inductive limit switch
• Power cable anticut limit switch and anti‐tear device, for electric cable protection (avoiding cable rupture)
• Electromechanical limit switch for cage landing door Inductive for cage boarding door
• Ladder limit switch
• Mast and anchorage trapdoor limit switch
• Landing door mechanical limit switch: Do not open if the cabin is not at the floor
• Base enclosure access door electromechanical limit switch : Do not open if the cabin is not at the ground
• Ground enclosure
• Anti‐over‐run mechanical device
• First class Self‐braking motor gear
• External independent parachute  emergency brake (CE certified)
• Terminal Mast section with half rack to avoid overrun

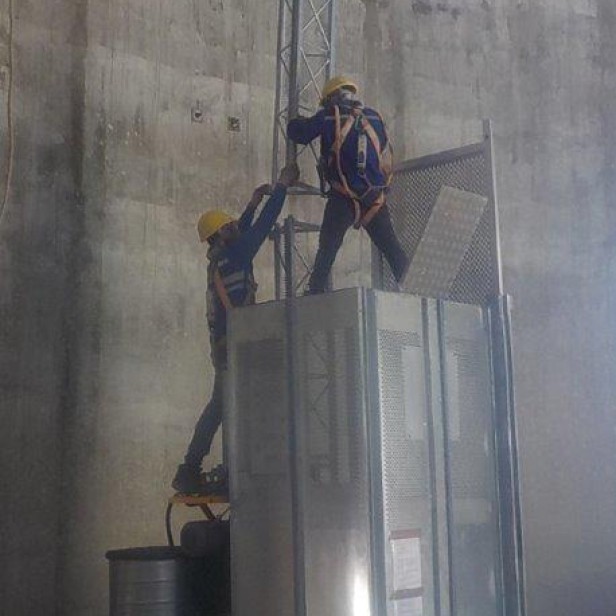

• Platform or roof hatch for erection with safety rails and safety limit switch

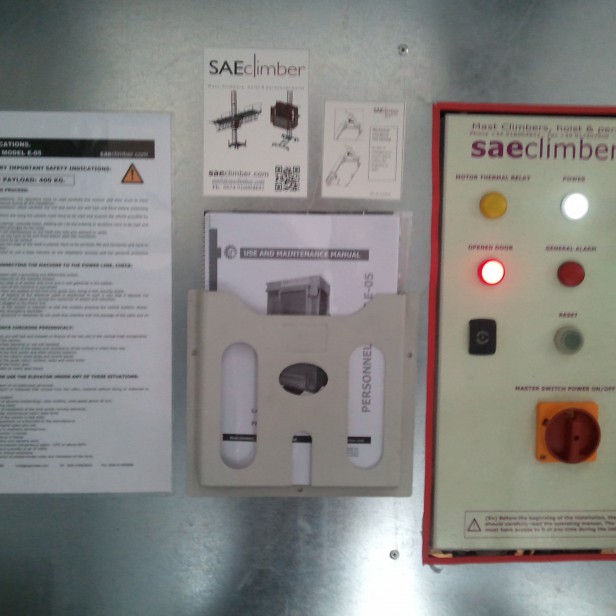

• Visual Diagnostic of malfunctioning
• Device for manual descent in case of power failure
• Emergency light with battery or Led  (CE) inside Cabin
• All steel material of the supply, including the cabin, is hot galvanized
• Magnetothermal protections and differential ampere switchetche
