Dingli JCPT1212PA | Electric scissor lift with working height 12 meters and lifting capacity 320 kg

The JCPT1212PA is a fully electric, oil-free scissor lift using electric actuators for lifting, lowering, and steering—eliminating the need for hydraulic systems. With 95% transmission efficiency and over 30% energy savings compared to traditional systems, it ensures long-lasting endurance. High safety is ensured through built-in position sensors and real-time stroke monitoring. Maintenance is minimized thanks to its permanent magnet motor and AGM battery. Full-stroke proportional control ensures smooth operation without jolts, and its quiet, zero-emission design makes it ideal for environmentally sensitive applications.

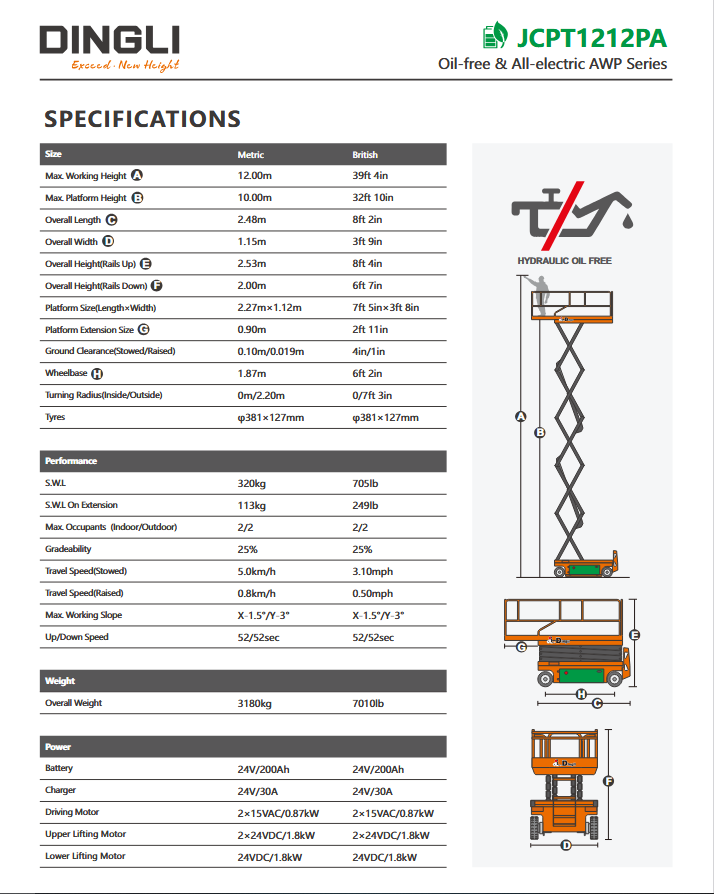

Max. Working Height: 12.00m
Safe Working Load: 320kg
Overall Length/Width: 2.48m*1.15m

FEATURES

• Proportional Joystick Controls

• Self-Locking Gates
• One-Way Platform Extension Deck
• Drivable At Full Height
• Non-Marking Tyres
• Two-Wheel Drive
• Two-Wheel Steering
• Automatic Braking System
• Emergency Descent System
• Onboard Fault Diagnostic System
• Tilt Alarm
• Motion Alarm
• Horn
• Hour Meter
• Safety Arm For Troubleshooting
• Standard Transport Forklift Holes
• Charging Protection System
• Flashing LED Beacon
• Foldable Guard Rails
• Automatic Pothole Protection
• Drive Enable
• Charging Indicator
• Manual Brake Release
• Lanyard Attachment Point
• Tie-Down And Lifting Points
• Platform Load Sense System
• Emergency Stop Button
