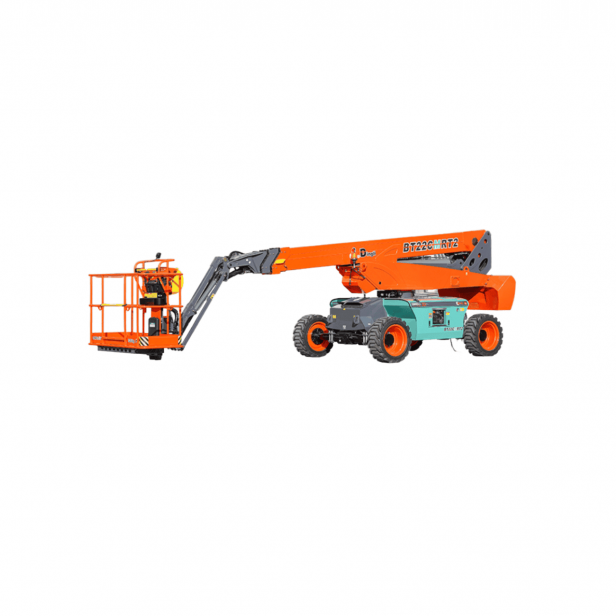

Dingli BT22CMRT2 | Mild‑Hybrid Telescopic Boom Lift with 22.22 m working height and 320 kg safe working load

BT22CMRT2 – D Series

The BT22CMRT2 from the D Series has been developed by DINGLI’s domestic R&D Center. It features a modular design both horizontally and vertically, with 85% of components shared across the entire range and developed on the same platform. The machine is equipped with an integrated axle, four-wheel drive, and two-wheel steering. It can be driven at full height while carrying a load of up to 320 kg and is suitable for standard container transport. It is powered by an 18.2 kW low-power engine. The battery can also function as a starter battery. Under normal operating conditions, the engine can charge the battery, while in complex conditions, the battery provides additional torque output. Renewable biodiesel can be used, offering high energy efficiency, cost-effectiveness, strong power, and improved eco-friendliness.

Standard Items:

• Standard equipment • Automatic engine shutdown in case of fault
• Anti-reverse engine device
• Anti-restart engine protection
• Hydraulic oil cooler
• Kubota D1105 diesel engine, 18 kW at 2600 rpm
• 12V DC auxiliary power supply
• Harsh environment kits
• Operator anti-crushing protection system
• Fault diagnosis system
• Platform load sensing system
• Positive traction four-wheel drive system
• 360° continuous turntable rotation
• Heavy-duty integrated special drive axle
• Hour meter
• Horn
• Warning beacon
• Descent alarm
• Tilt alarm
• AC power supply to the platform
• Drive enable system
• Thumb rocker steering
• Proportional joystick controls for precise operation
• 180° left and right platform rotation
• Self-leveling platform for increased operator safety
• Four-wheel drive for superior performance on all terrains
• Two-wheel steering for enhanced manoeuvrability
• Front oscillating axle for improved ground contact
• 1.50 m (4 ft 11 in) jib

BT22CMRT2
